voltage curveSinusoidal or distorted
number of keys4
mounting positionany

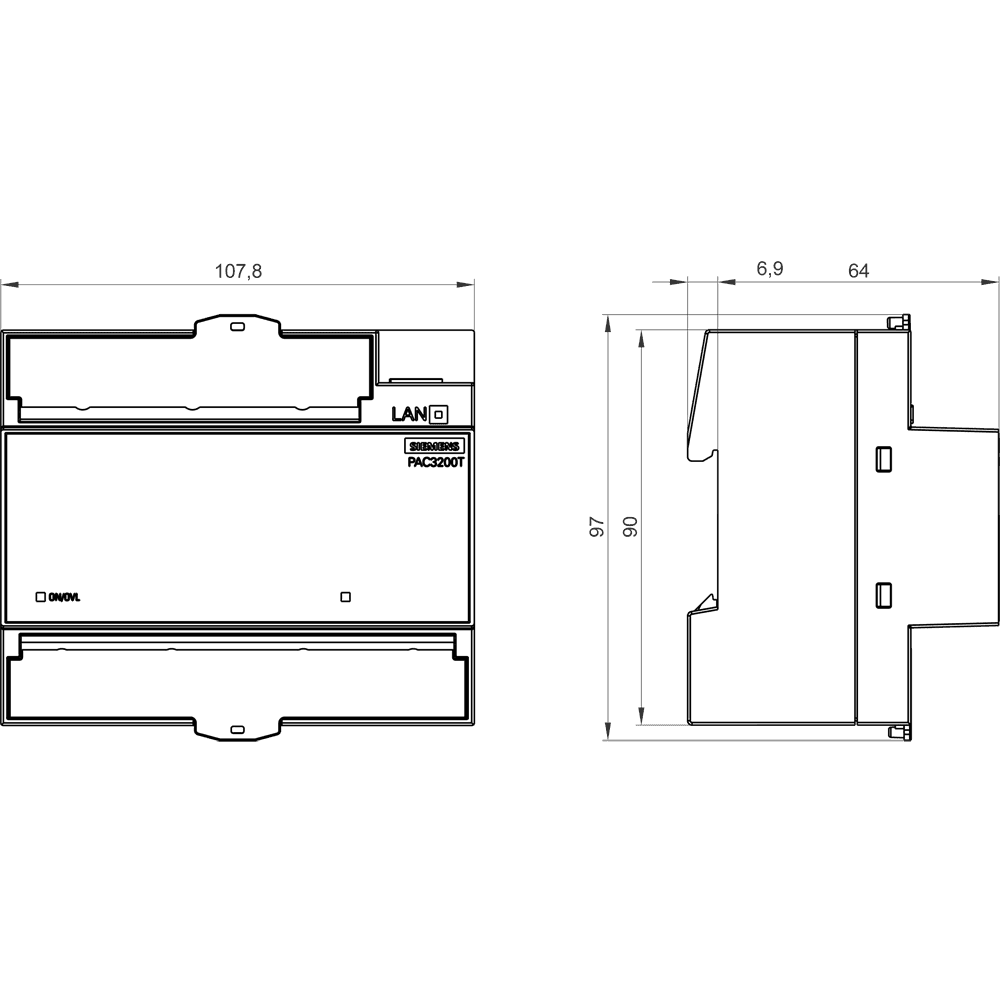

installation depth70.8 mm
product brand nameSENTRON
product designationmultimeter
design of the displayStandard mounting rail enclosure without display
design of the productbasic
number of digital inputs1

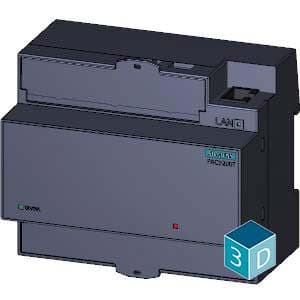

product type designation7KM PAC3200T
type of switching outputsolid state
number of digital outputs1
suitability for operationStandard mounting rail device
design of the power supplyWide-range power supply
transfer rate 1 for Ethernet10 Mbit/s
transfer rate 2 for Ethernet100 Mbit/s
size of Power Monitoring Device6MW
type of measured value detectioncomplete
fastening method DIN-rail mountingYes
type of voltage of the supply voltageAC/DC
reference condition for metering accuracyIn accordance with IEC61557-12, IEC62053-22 and IEC62053-23
measuring category for current measurementCATIII
measuring category for voltage measurementCAT III
zero point suppression for current measurement10 mA
protocol at the Ethernet interface is supportedMODBUS TCP
type of electrical connection at the digital outputsscrew-type terminals
operating conditions for digital inputs external voltage supplyYes
current measuring range extension with external current transformersYes
voltage measuring range extension with external voltage transformersYes
measurable supply voltage between (PE)N and L at AC maximum rated value230 V
operating mode for measured value detection automatic line frequency detectionYes
measurable supply voltage between the line conductors at AC maximum rated value400 V
line conductors and neutral conductors internal resistance for voltage measurement1 MΩ
