Aktif

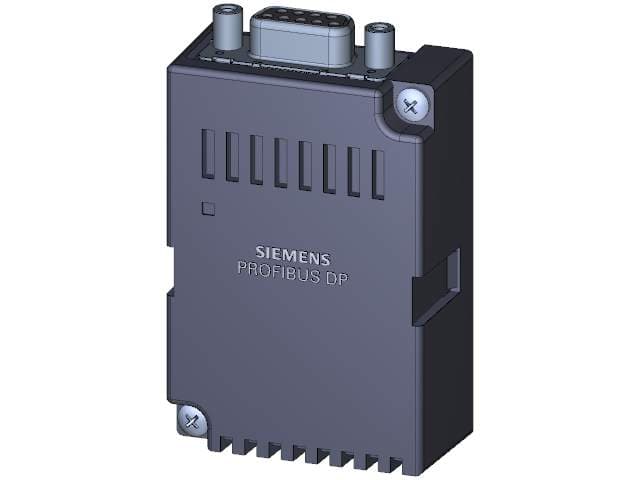

expansion module PROFIBUS DP
Nomor Part: 7KM9300-0AB01-0AA0
Kategori
Multifunction measuring instrument
Siemens 7KM9300-0AB01-0AA0. expansion module PROFIBUS DP, plug-in, for 7KM PAC3220 / 4220 / 3VA COM100 / 800.
Spesifikasi
Mechanical
Net Weight80 g
Dimensions
Width18 mm
Height90 mm
Depth73 mm
Other
MTBF141.1 a
fastening methodpluggable
galvanic isolationMaximum insulation voltage: 500V AC
product brand nameSENTRON
degree of pollution2 according to IEC 61131
product designationPROFIBUS DP expansion module
protection class IPIP20
suitability for use7KM PAC 3200 / PAC 4200 / 3VA COM100 / 800
type of voltage supplyvia PAC 3200 / PAC4200 / COM100 / 800
type of electrical connection9-pole Sub-D plug according to IEC 61158
combustibility class according to UL 94V 0
suitability for use reactive power meterNo
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750P
