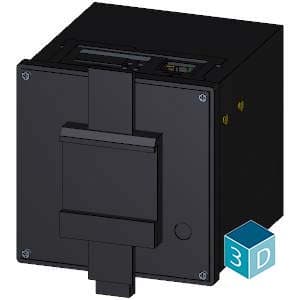

voltage curveSinusoidal or distorted
number of keys4
mounting positionvertical
product brand nameSENTRON
degree of pollution2
product designationMeasuring device for power system quality measurement
supply voltage at AC90 ... 270 V
supply voltage at DC20 ... 300 V
design of the displayStandard mounting rail enclosure without display
design of the productAdvanced
digital output versionContinuous output, pulse output
number of digital inputs0
product type designation7KM PAC5200
type of switching outputsolid state
number of digital outputs2
suitability for operationStandard mounting rail device
design of the power supplyWide-range power supply
display contrast adjustableNo
adjustable time period minimum50 ms

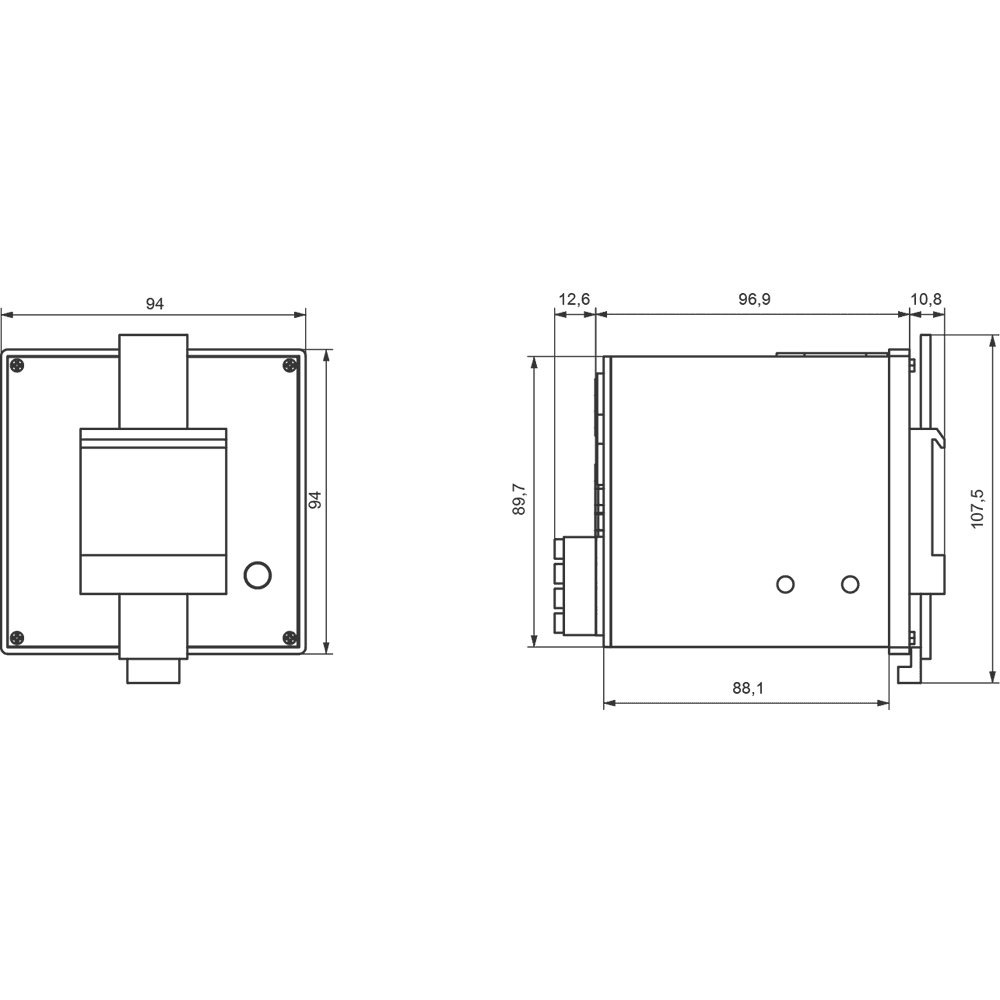

size of Power Monitoring DeviceDIN rail
protection class IP on the frontIP20
type of measured value detectioncomplete
fastening method DIN-rail mountingYes
type of voltage of the supply voltageAC/DC
color of the background of the displaywhite
measuring category for digital signalsCat. III
property of the output short-circuit proofYes
reference condition for metering accuracyaccording to IEC 62053-22, IEC 62053-23, IEC 62586-1, Class S, IEC 61000-4-30, IEC 61000-4-7, IEC 61000-4-15
internal resistance at the digital outputs35 Ω
measuring category for current measurementCATIII
measuring category for voltage measurementCAT III
illuminance of display backlight adjustableNo
switching frequency at digital output maximum10 Hz
zero point suppression for current measurement0 ... 10 %
number of interfaces according to Fast Ethernet1
operating resource protection class when installedII
national language on the display screen is supportedde, en
type of electrical connection at the digital outputsscrew-type terminals
installation altitude at height above sea level maximum2 000 m
certificate of suitability as EC Declaration of ConformityEN 61000-6-2 and EN 61000-6-4 for EMC guideline
type of electrical connection of the fast Ethernet interfaceRJ45 (8P8C)
operating voltage as output voltage at DC maximum permissible250 V
current measuring range extension with external current transformersYes
voltage measuring range extension with external voltage transformersYes
measurable supply voltage between (PE)N and L at AC maximum rated value400 V
relative humidity at 25 °C without condensation during operation maximum95 %
time-controlled reduction of the illuminance of display backlight possibleNo
operating mode for measured value detection automatic line frequency detectionYes
measurable supply voltage between the line conductors at AC maximum rated value690 V
line conductors and neutral conductors internal resistance for voltage measurement6 MΩ
