Aktif
expansion module I(N)
Nomor Part: 7KM9200-0AD00-0AA0
Kategori
Multifunction measuring instrument

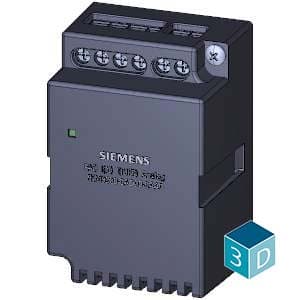

Siemens 7KM9200-0AD00-0AA0. expansion module I(N),I(diff),analog N-conductor measurement, residual current measurement, 2 analog inputs, plug-in, for 7KM PAC3220 / 4220.
Spesifikasi
Mechanical
Net Weight81 g

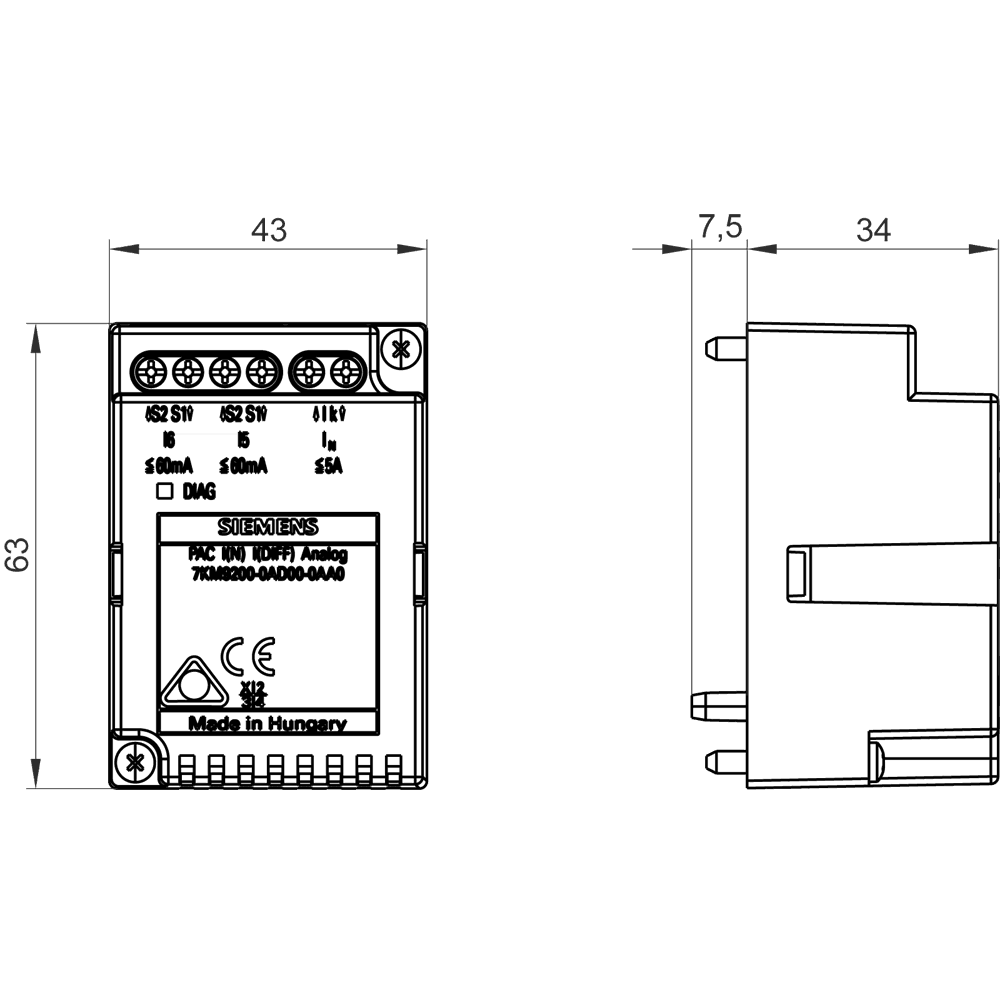

Dimensions
Width18 mm
Height90 mm
Depth73 mm
Other
fastening methodpluggable
galvanic isolationMaximum insulation voltage: 500V AC
product brand nameSENTRON
degree of pollution2 according to IEC 61131
product designationI(N),I(Diff) expansion module, analog N conductor measurement, differential current measurement, 2 analog inputs
protection class IPIP20
suitability for use7KM PAC 3220 / PAC 4200 / PAC 4220
type of voltage supplyvia PAC 3200 / PAC4200
type of electrical connectionscrew terminal
combustibility class according to UL 94V 0
suitability for use reactive power meterNo
