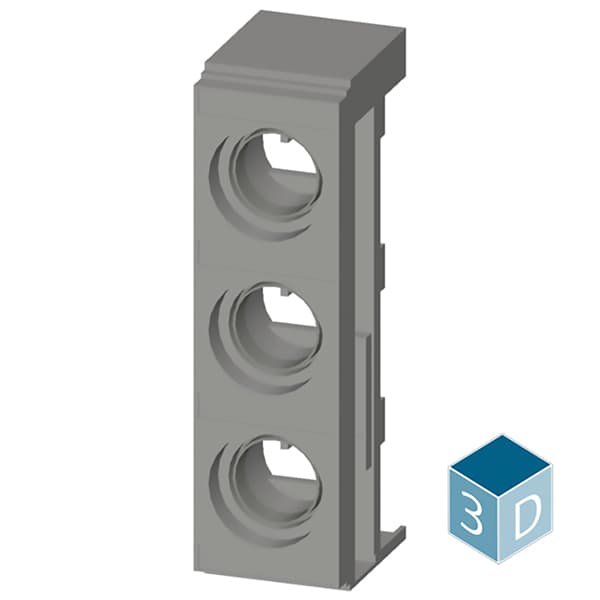

DIAZED bar mounting bases SR60 3P
Nomor Part: 5SF6220
Kategori
D-system fuse base
Siemens 5SF6220. DIAZED bar mounting bases SR60 3P, DIII, 63 A, 500V for 5/10 mm busbars Adapter screw design.
Spesifikasi
Mechanical
Net Weight397 g
Dimensions
Width57 mm
Height200 mm
Depth43.5 mm
Other
number of poles3
fastening methodDIN railw
product brand nameSENTRON
supply voltage at AC500 V
design of the productDIII BUS-MOUNTING BASE
design of the fuse basegauge inset
product component coverNo
material of the enclosureothers
size of fuse system according to EN 60269-1DIII
