Aktif
DIAZED base DII 25 A 500 V AC DC 500 V AC DC
Nomor Part: 5SF1005
Merek
Kategori
D-system fuse base
Siemens 5SF1005. DIAZED base DII 25 A 500 V AC DC 500 V AC DC.
Spesifikasi
Mechanical
Net Weight105 g

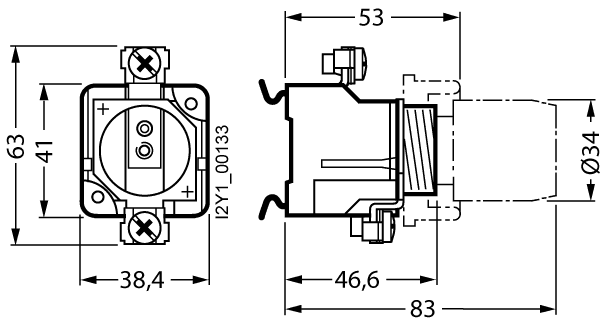

Dimensions
Width38.4 mm
Height70 mm
Depth46.6 mm
Other
number of poles1
fastening methodDIN rail
product brand nameSENTRON
supply voltage at AC500 V
design of the productDIAZED base, head contact/clamp-type terminal
design of the fuse basegauge inset
product component coverNo
material of the enclosureporcelain
