DIAZED fuse base size DII Molded plastic
Nomor Part: 5SF1060
Kategori
D-system fuse base
Siemens 5SF1060. DIAZED fuse base size DII Molded plastic, 1-pole touch-protected (BGV A2) Access: Double function terminal Outgoing feeder: Box terminal 25A 500 V AC.
Spesifikasi
Mechanical
Net Weight115 g

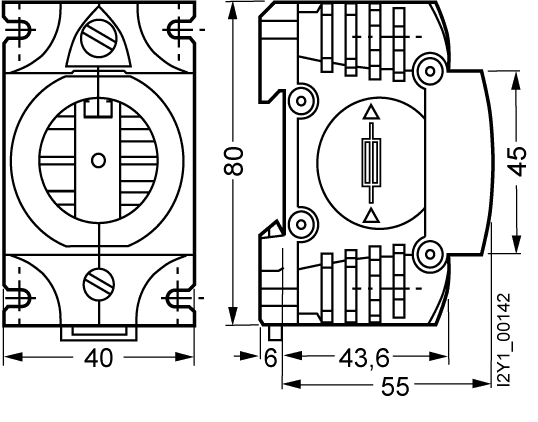

Dimensions
Width80 mm
Height40 mm
Depth55 mm
Other
number of poles1
fastening methodDIN rail
product brand nameSENTRON
supply voltage at AC500 V
design of the productDIAZED base
design of the fuse basegauge inset
product component coverYes
material of the enclosureplastic
size of fuse system according to EN 60269-1DII
