ASYMTEK Dual-Simultaneous Bracket

Brand

NordsonVisit Website

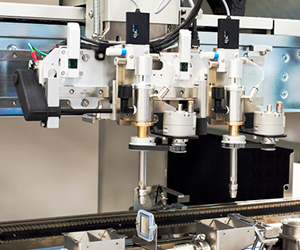

With Nordson ASYMTEK's Dual-Simultaneous Bracket (manual or motorized pitch adjustment) the Select Coat® conformal coating system can be equipped with two of the same applicators that operate simultaneously to conformally coat two parts at the same time. Throughput is increased significantly with the dual-simultaneous configuration. The Select Coat® system can coat two parts (multiple-up) at the same time. The actual conformal coating process time is reduced by 50% and throughput performance can virtually be doubled - especially when conducting a high takt time conformal coating process. Ideal parts include multi-up panelized or patterned parts with consistent spacing. Pitch is adjusted in two ways depending on the type of bracket. With the manual bracket, an operator can easily adjust and clamp the desired pitch with set-screws. With the Dual-Simultaneous Programmable Pitch motorized bracket, the pitch is automatically repositioned to match the pitch that has been programmed through Easy Coat® software - increasing speed, accuracy, and repeatability. Flexibility is high in both configuration and the ability to accommodate a variety of parts that require conformal coating. Additionally, applicators can be installed with rotate and tilt options to conformally coat complex PCB layouts. Dual-Simultaneous Programmable Pitch Dual-Simultaneous Manual Adjustment
