IO-Link adapter element
Nomor Part: 8WD4428-0BF
Kategori
Connection module for signal tower
Siemens 8WD4428-0BF. IO-Link adapter element, black, for 5 signaling elements, 24 V DC, diameter 70 mm.
Spesifikasi
Mechanical
Net Weight0.081 kg

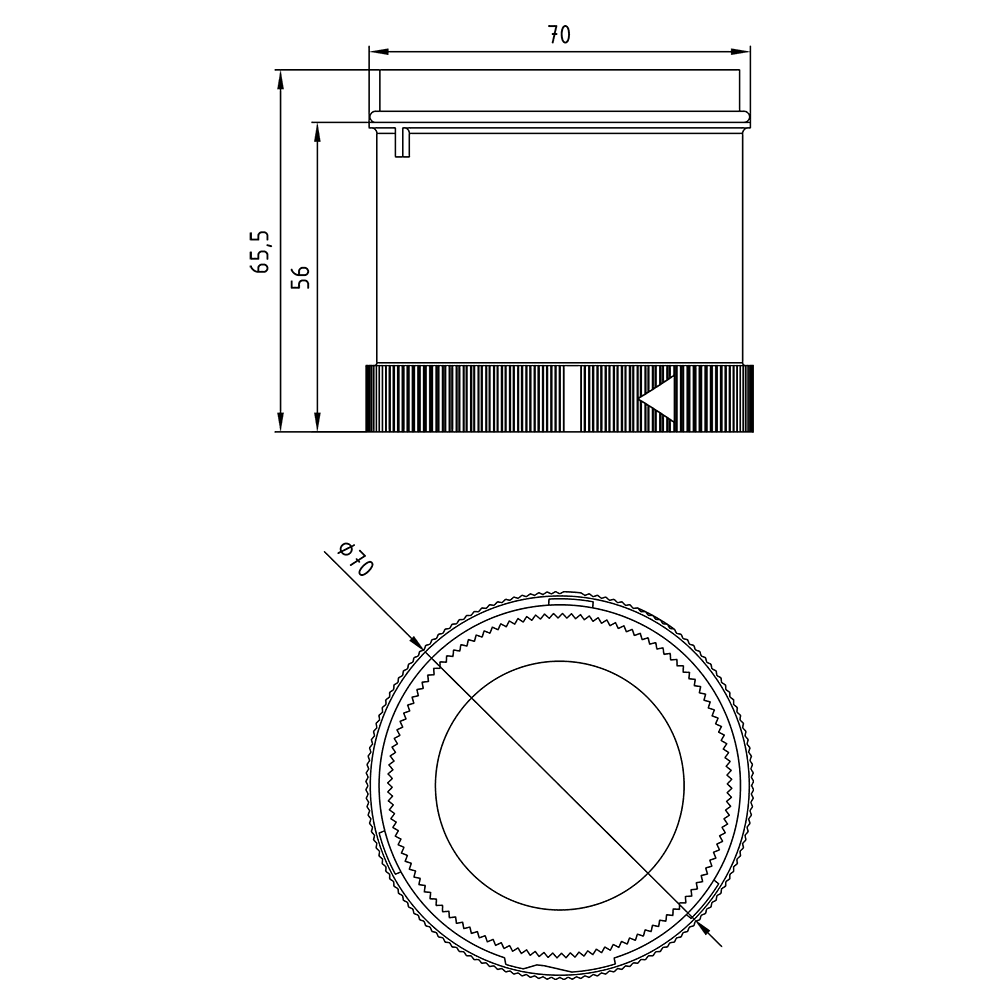

Dimensions
Height66 mm
Other
colorblack
MTTFd1 837 a
materialPC
fastening methodBayonet
degree of pollution3
product designationIO-Link adapter element
protection class IPIP65
IO-Link transfer rateCOM2 (38,4 kBaud)
consumed current maximum6 mA
number of digital inputs0
Substance Prohibitance (Date)07/01/2006
number of digital inputs/outputs0
ambient temperature during operation-20 ... +50 °C
operating voltage 1 at DC rated value24 V
reference code according to IEC 81346-2B
type of voltage of the operating voltageDC
outer diameter of the signal column element70 mm
type of voltage supply via input/output link masterYes
relative negative tolerance of the operating voltage-15 %
relative positive tolerance of the operating voltage10 %
point-to-point cycle time between master and IO-Link device minimum10 ms
