AS-Interface adapter element
Nomor Part: 8WD4228-0BB
Kategori
Connection module for signal tower

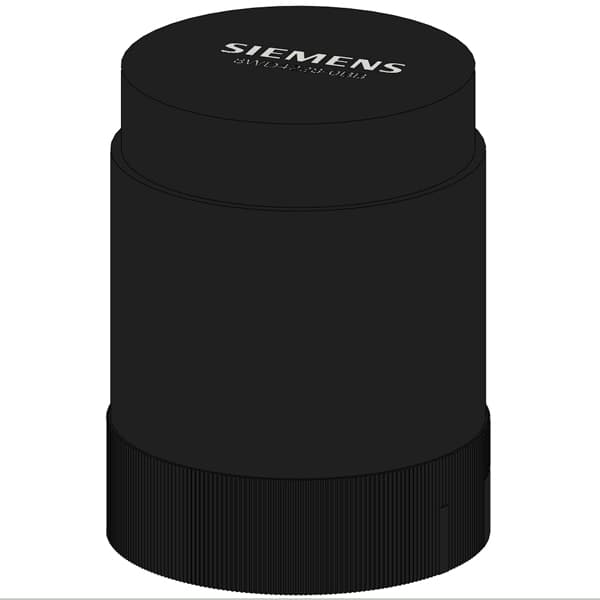

Siemens 8WD4228-0BB. AS-Interface adapter element, black, with external auxiliary voltage, for 4 signaling elements, 24 V DC.
Spesifikasi

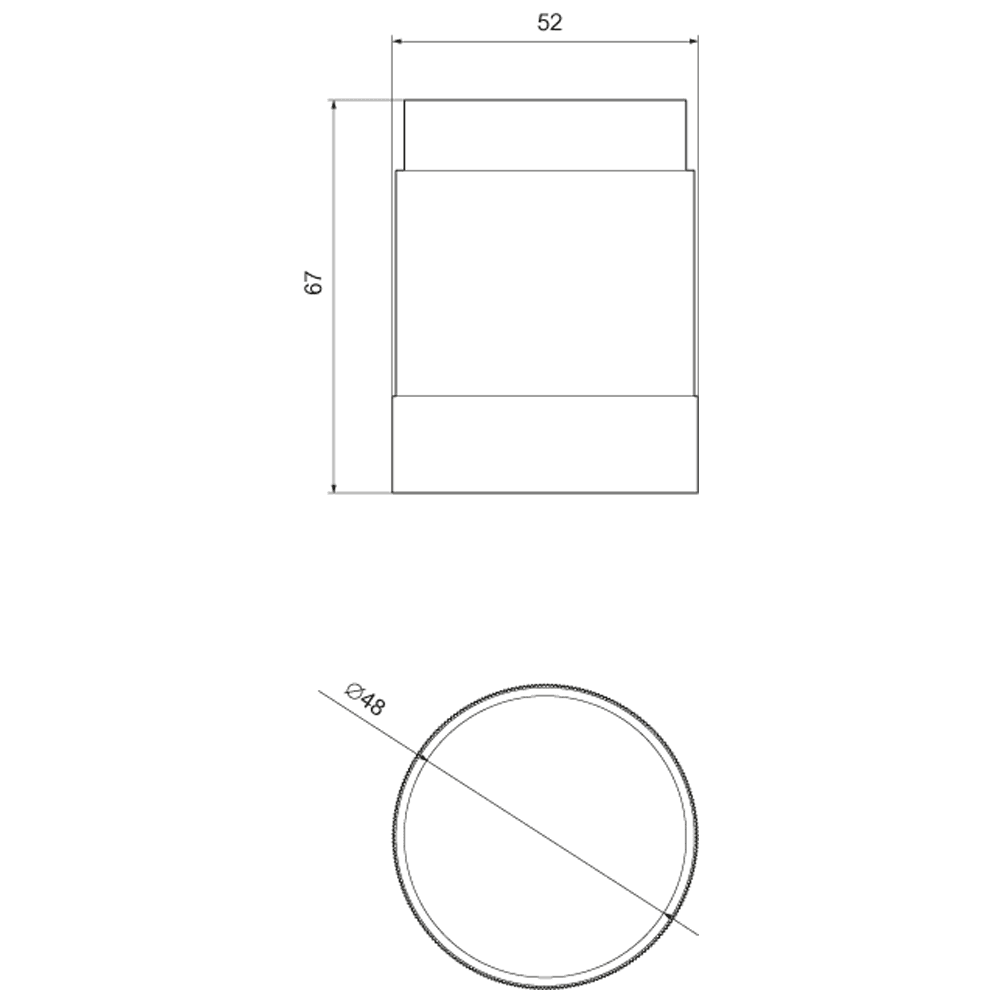

Dimensions
Width52 mm
Height67 mm
Other
colorblack
materialPC
fastening methodBayonet
product brand nameSIRIUS
product designationAS-Interface module
protection class IPIP54
consumed current maximum50 mA
ambient temperature during operation-20 ... +50 °C
reference code according to EN 61346-2B
type of voltage of the operating voltageDC
outer diameter of the signal column element50 mm
design of the interface AS-Interface protocolYes
