Aktif
Connection element
Nomor Part: 8WD4408-0AA
Kategori
Connection module for signal tower

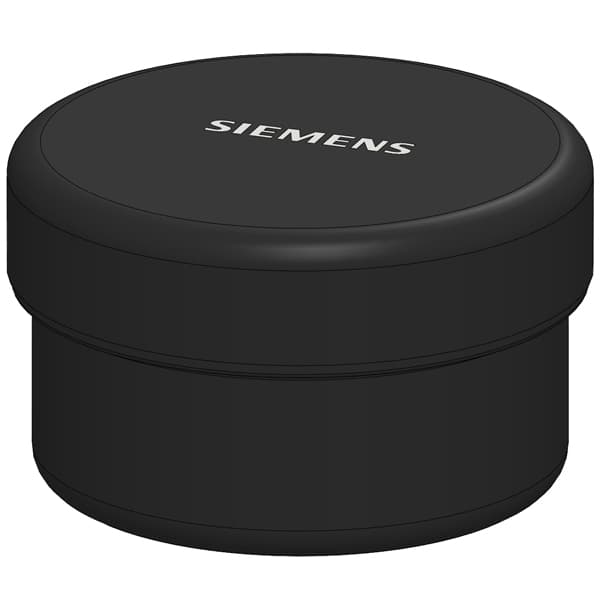

Siemens 8WD4408-0AA. Connection element, with end cover, black, for pipe mounting, with screw terminal,.
Spesifikasi

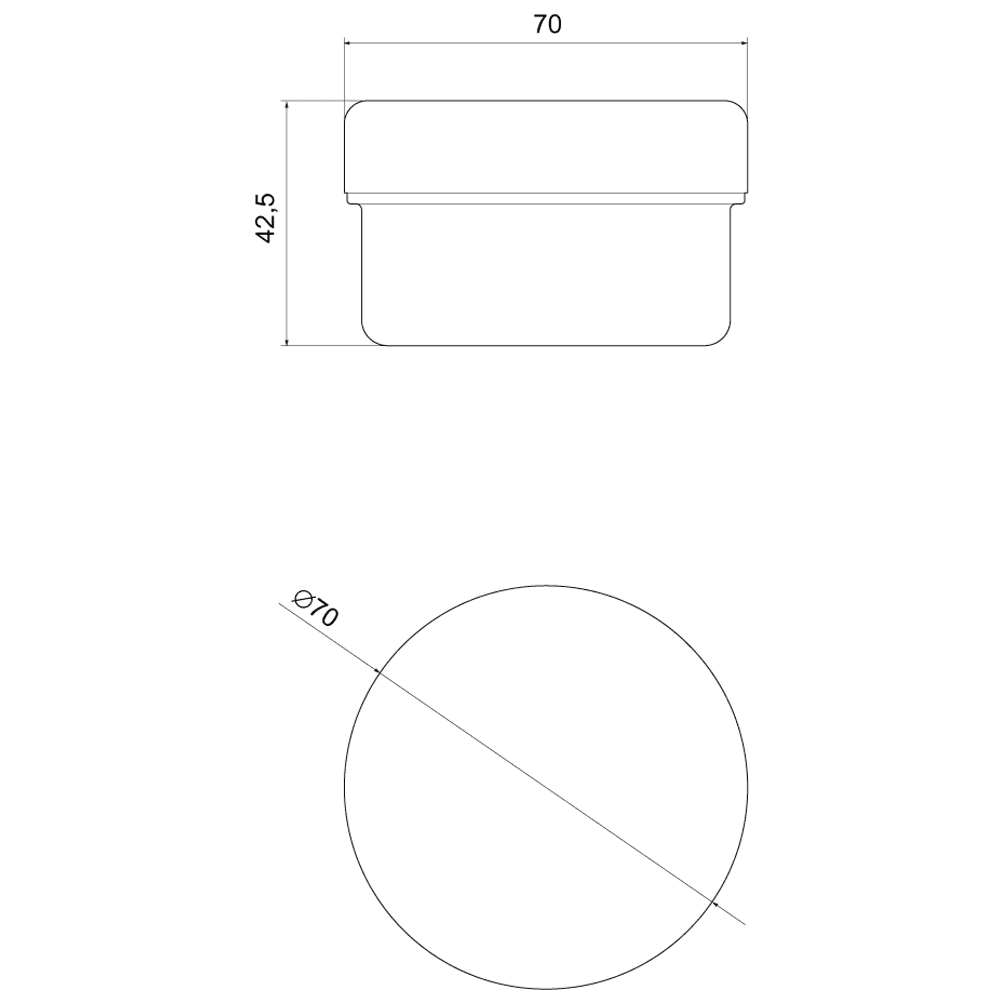

Dimensions
Width70 mm
Height42.5 mm
Other
colorblack
materialPA
fastening methodmounting on pipes
product brand nameSIRIUS
product designationConnection element
protection class IPIP65
design of the productfor mounting on pipes
type of electrical connectionscrew terminal
ambient temperature during operation-20 ... +50 °C
reference code according to EN 61346-2X
tightening torque with screw-type terminals0.4 N·m
outer diameter of the signal column element70 mm
