SIDOOR MEG251 R Geared motor
Nomor Part: 6FB1203-5AT01-7MP0
Kategori
Module rack for industrial heating control systems

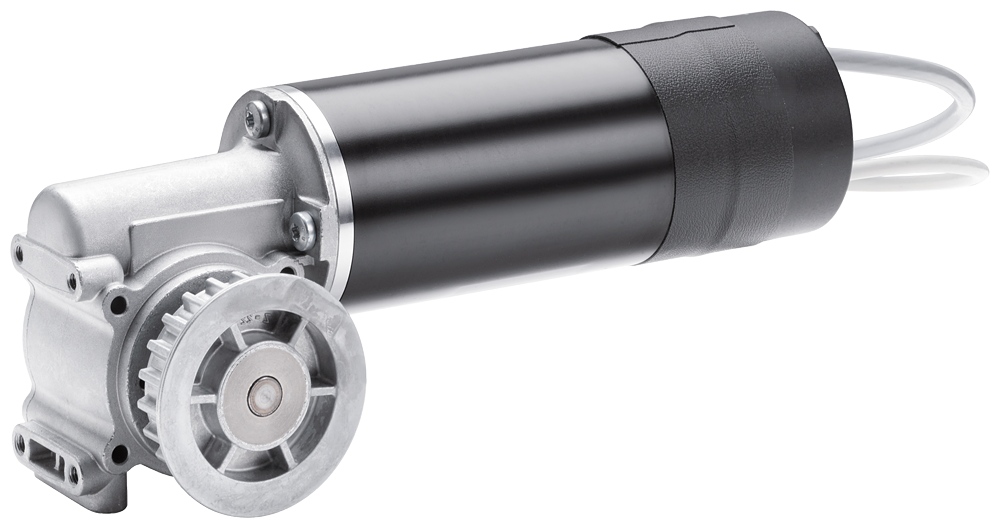

Siemens 6FB1203-5AT01-7MP0. SIDOOR MEG251 R Geared motor, pinion right hand, max. 250kg door weight, cable length 1,5m, 24VDC, -20 - +50 degree Celsius.
Spesifikasi
Other
CE markYes
Speed, max.0.75 m/s
Gear ratio15
UL approvalNo
Rated value (DC)24 V
Height of motor100 mm
Length of motor249 mm
Diameter of motor62 mm
Active power input163 W
Weight of door, max.250 kg
Breakaway force, max.50 N
China RoHS complianceYes
Product type designationMEG251 R
Operational current (rated value)6.8 A
Number of pulses per revolution, max.100
Width of gear unit, including drive pinion86 mm
Torque of the rotary operating mechanism (rated value)4.1 N·m
