Aktif
busbar system 8US2
Nomor Part: 8US2933-3LE00
Kategori
Busbar terminal

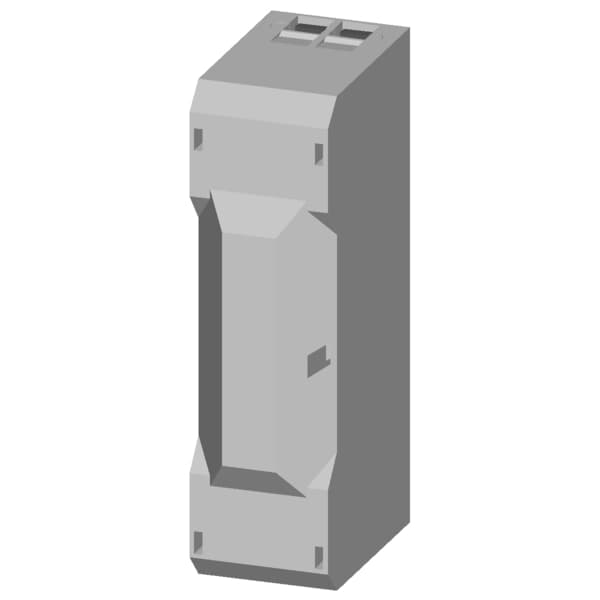

Siemens 8US2933-3LE00. busbar system 8US2, connection module on front, 125 A, 6 – 50 mm², 45 x 160 mm.
Spesifikasi
Mechanical
Net Weight310 g

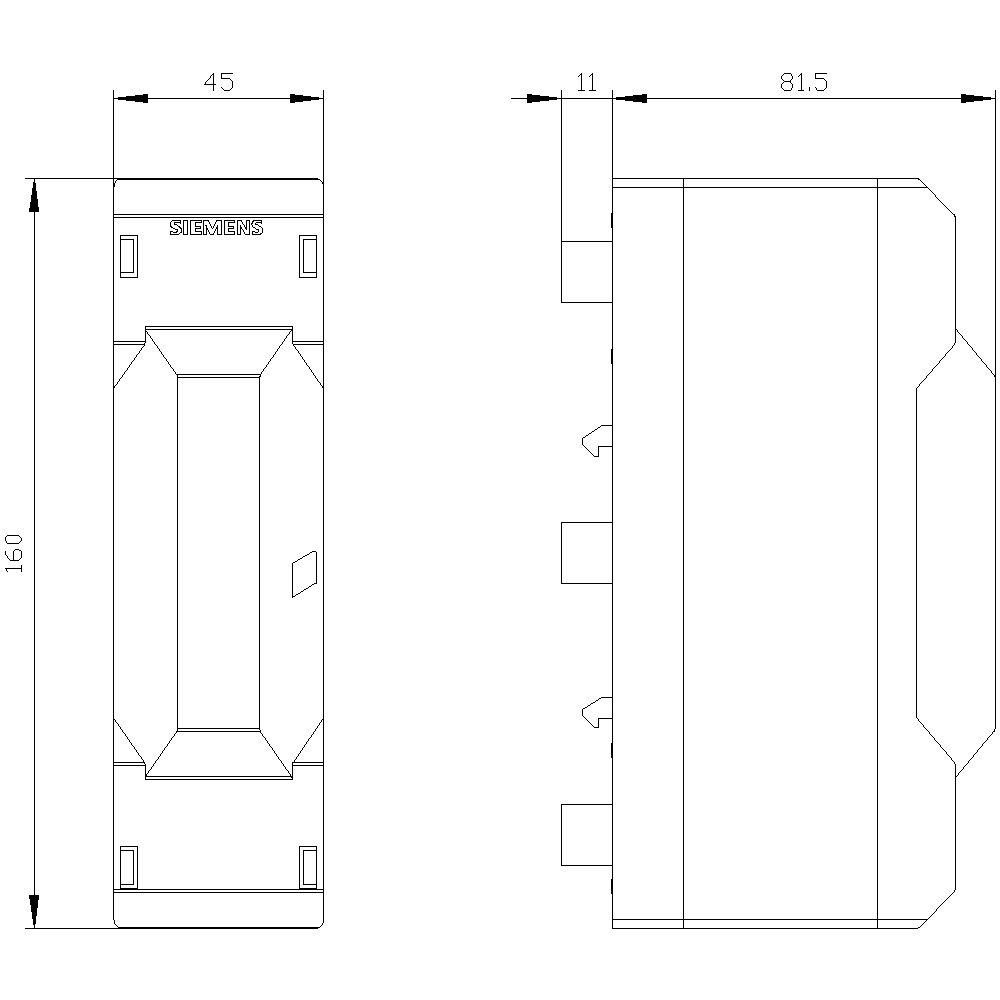

Dimensions
Width45 mm
Height160 mm
Depth92 mm
Other
number of poles3
product brand nameSENTRON
product designationConnection module
power loss [W] maximum9.3 W
type of connection technologybox terminal
insulation voltage rated value800 V
protection class IP on the frontIP20
surge current resistance rated value15 kA
operational current rated value maximum125 A
operating voltage at AC rated value maximum690 V
Suitability to the operation for flat cable-connectionNo
Suitability to the operation for circular conductor connectionYes
Suitability to the operation for sector-shaped conductor connectionNo
