busbar system 8US2
Nomor Part: 8US2933-3HC00
Kategori
Busbar terminal

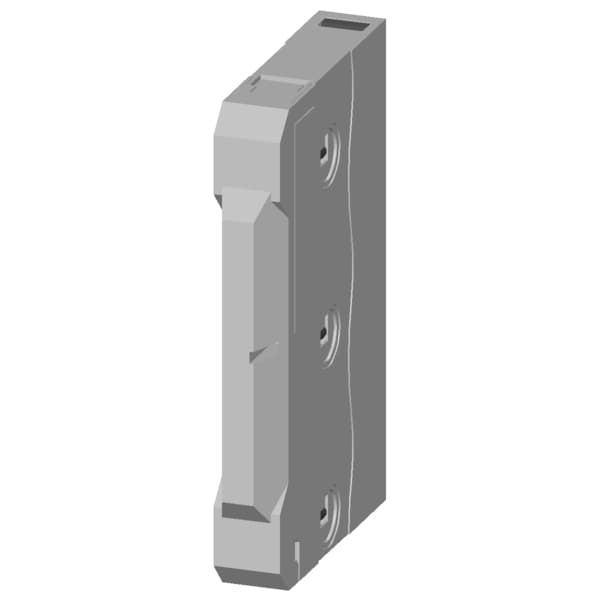

Siemens 8US2933-3HC00. busbar system 8US2, connection module on front, 1.5 – 6 mm², 22.5 x 160 mm.
Spesifikasi
Mechanical
Net Weight233 g

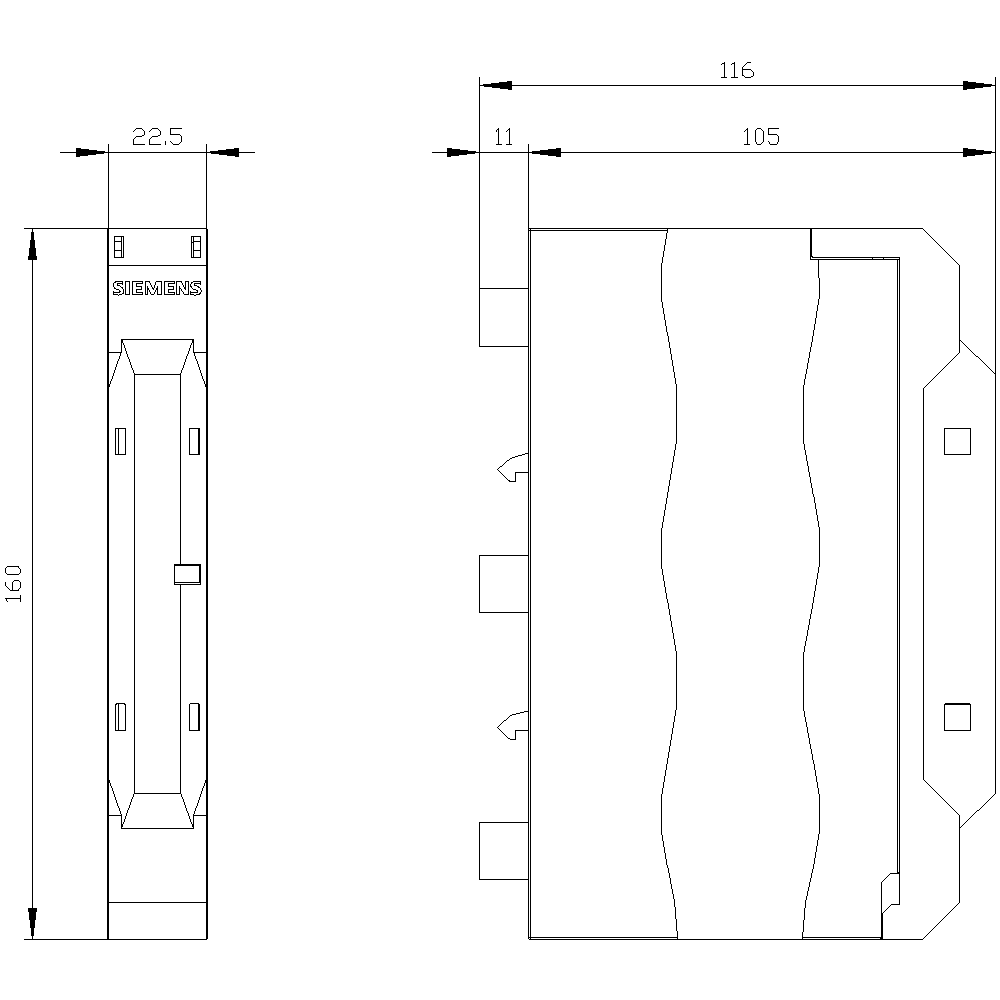

Dimensions
Width22.5 mm
Height160 mm
Depth115 mm
Other
number of poles3
product brand nameSENTRON
product designationConnection module
power loss [W] maximum4.6 W
type of connection technologyspring-loaded terminal
insulation voltage rated value800 V
protection class IP on the frontIP20
surge current resistance rated value10 kA
operational current rated value maximum63 A
operating voltage at AC rated value maximum690 V
Suitability to the operation for flat cable-connectionNo
Suitability to the operation for circular conductor connectionYes
Suitability to the operation for sector-shaped conductor connectionNo
