CCCNo; not necessary
IRTYes
MPINo
— MRPYes
cULusYes
EIB/KNXNo
CE markYes
IP (rear)IP20
PROFIBUSNo
PROFINETYes; incl. shared device, 3rd party PLC
PROFIsafeYes; 2x SIL 3 (two-channel) or 4x SIL 2 (single-channel) emergency stop sensors
EtherNet/IPNo
AS-InterfaceNo
KC approvalYes
PROFINET CBANo
Mounting typeMounting clip
Rack mountingNo
Rail mountingNo
Front mountingYes
mounting depth37 mm; Incl. angled SIMATIC Ethernet connector
Rated value (DC)24 V; 24 V looped through at connector, no interruption on pulling
Illuminant testYes; During switch on
IP (at the front)IP65
Mounting positionvertical
EAC (formerly Gost-R)Yes
RCM (formerly C-TICK)Yes

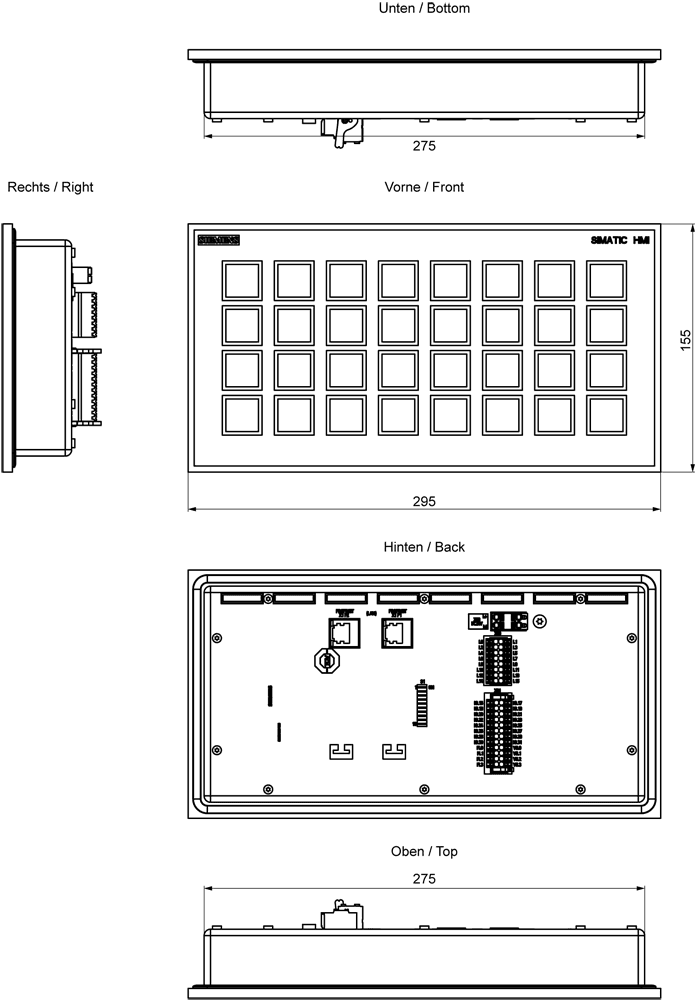

Mounting cutout, width277 mm; Max. thickness of mounting plate 2 - 6 mm
Mounting cutout, height137 mm
Type of supply voltageDC
Height of housing front155 mm
Short-circuit protectionYes
— Number of function keys32
Key and signal lamp testYes; automatically when switching on

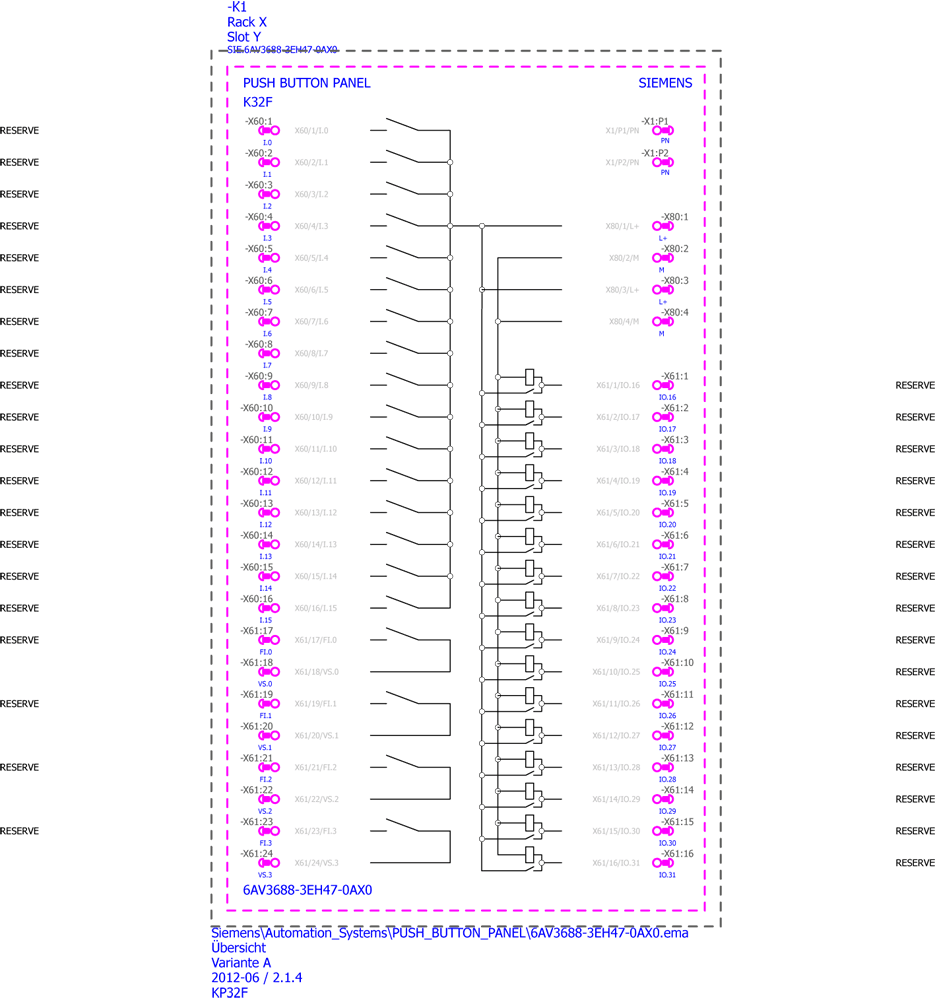

Number of digital inputs32; Total inputs and outputs max. 32 and 2x SIL 2 or 4x SIL 3

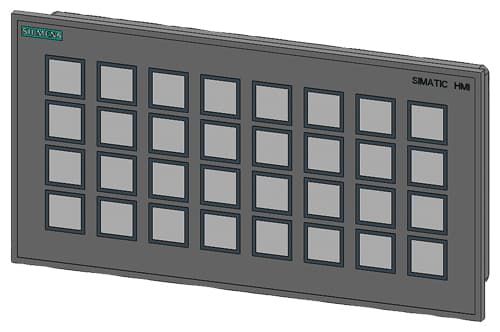

Product type designationKP32F PN
Weight (without packaging)1 220 g
Number of digital outputs16; Max. 32 inputs and outputs (total)
With parameterizable keysYes
— At maximum tilt angle, max.45 °C
— At maximum tilt angle, min.0 °C
Width of the housing front295 mm
— Number of short-stroke keys32
Wall mounting/direct mountingNo
Number of PROFINET interfaces2; Incl. switch
Suitable for safety functionsYes
— For vertical installation, max.55 °C
— For vertical installation, min.0 °C
Current consumption (rated value)1 A
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
— user-definable label membrane keysYes
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
— global warming potential, (total) [CO2 eq]113 kg
Number of industrial Ethernet interfaces2; For the construction of lines and rings without external switch
— global warming potential, (during operation) [CO2 eq]82.3 kg
— global warming potential, (during production) [CO2 eq]38.5 kg
Number of slots for command devices and signaling units0
— global warming potential, (after end of life cycle) [CO2 eq]-8.27 kg
maximum permissible angle of inclination without external ventilation30°; To the front/rear
