IRTYes
MPINo
— MRPYes
cULusYes
EIB/KNXNo
CE markYes
IP (rear)IP20
PROFIBUSNo
PROFINETYes; also 3rd party PLC
PROFIsafeNo
EtherNet/IPNo
AS-InterfaceNo
KC approvalYes
PROFINET CBANo
Mounting typeClamp terminals
Rack mountingNo
Rail mountingNo
Front mountingYes; Compatible with Extension Units dimensions
mounting depth49 mm; Incl. angled SIMATIC Ethernet connector
Rated value (DC)24 V; 24 V looped through at connector, no interruption on pulling
Illuminant testYes; During switch on
IP (at the front)IP65
Mounting positionvertical
RCM (formerly C-TICK)Yes
Mounting cutout, width67.7 mm; Max. thickness of mounting plate 2 - 6 mm
Mounting cutout, height129.7 mm
Type of supply voltageDC

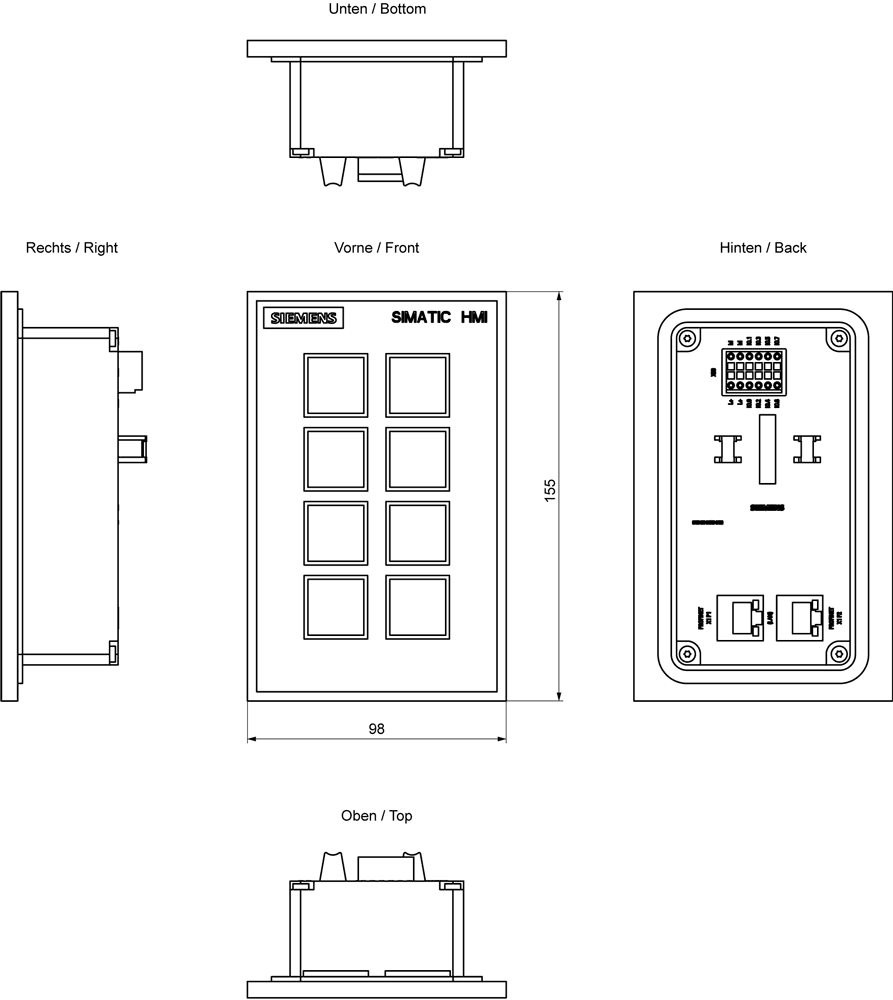

Height of housing front155 mm
Short-circuit protectionYes
— Number of function keys8
Key and signal lamp testYes; automatically when switching on

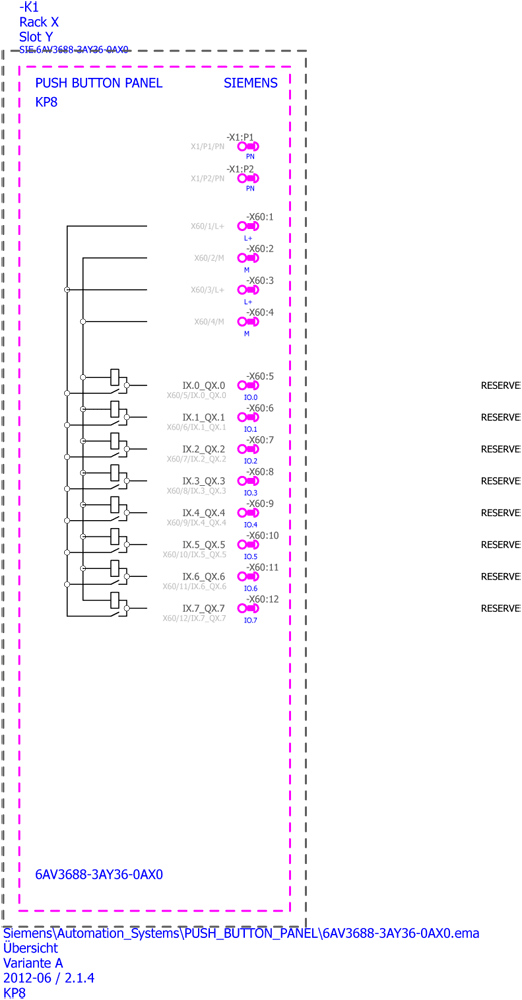

Number of digital inputs8; Max. 8 inputs and outputs (total)

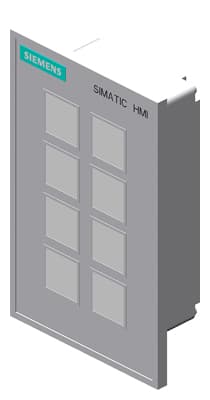

Product type designationKP8 PN
Weight (without packaging)270 g
Number of digital outputs8; Max. 8 inputs and outputs (total)
With parameterizable keysYes
— At maximum tilt angle, max.45 °C
— At maximum tilt angle, min.0 °C
Width of the housing front98 mm
— Number of short-stroke keys8
Wall mounting/direct mountingNo
Number of PROFINET interfaces2; Incl. switch
Suitable for safety functionsNo
— For vertical installation, max.55 °C
— For vertical installation, min.0 °C
Current consumption (rated value)0.3 A
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
— user-definable label membrane keysYes
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
Number of industrial Ethernet interfaces2; For the construction of lines and rings without external switch
Number of slots for command devices and signaling units0
maximum permissible angle of inclination without external ventilation30°; To the front/rear
