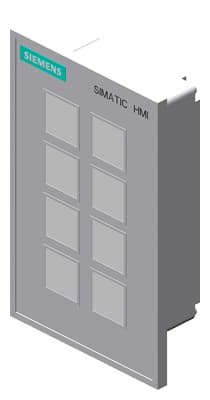

SIMATIC HMI KP8F PN
Nomor Part: 6AV3688-3AF37-0AX0
Kategori
Push button panel
Siemens 6AV3688-3AF37-0AX0. SIMATIC HMI KP8F PN, Key Panel, 8 short-stroke switches with multi-colored LEDs, PROFINET interfaces with PROFIsafe; 8 DI/DO and 2 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5.
Spesifikasi
Other
CCCNo; not necessary
IRTYes
MPINo
— MRPYes
cULusYes
EIB/KNXNo
CE markYes
IP (rear)IP20
PROFIBUSNo
PROFINETYes; also 3rd party PLC
PROFIsafeYes; 1x SIL 3 (two-channel) or 2x SIL 2 (single-channel) emergency stop sensors
EtherNet/IPNo
AS-InterfaceNo
KC approvalYes
PROFINET CBANo
Mounting typeMounting clip
Rack mountingNo
Rail mountingNo
Front mountingYes; Compatible with Extension Units dimensions
mounting depth49 mm; Incl. angled SIMATIC Ethernet connector
Rated value (DC)24 V; 24 V can be looped through connector, interrupted when pulled
Illuminant testYes; During switch on
IP (at the front)IP65
Mounting positionvertical
EAC (formerly Gost-R)Yes
RCM (formerly C-TICK)Yes

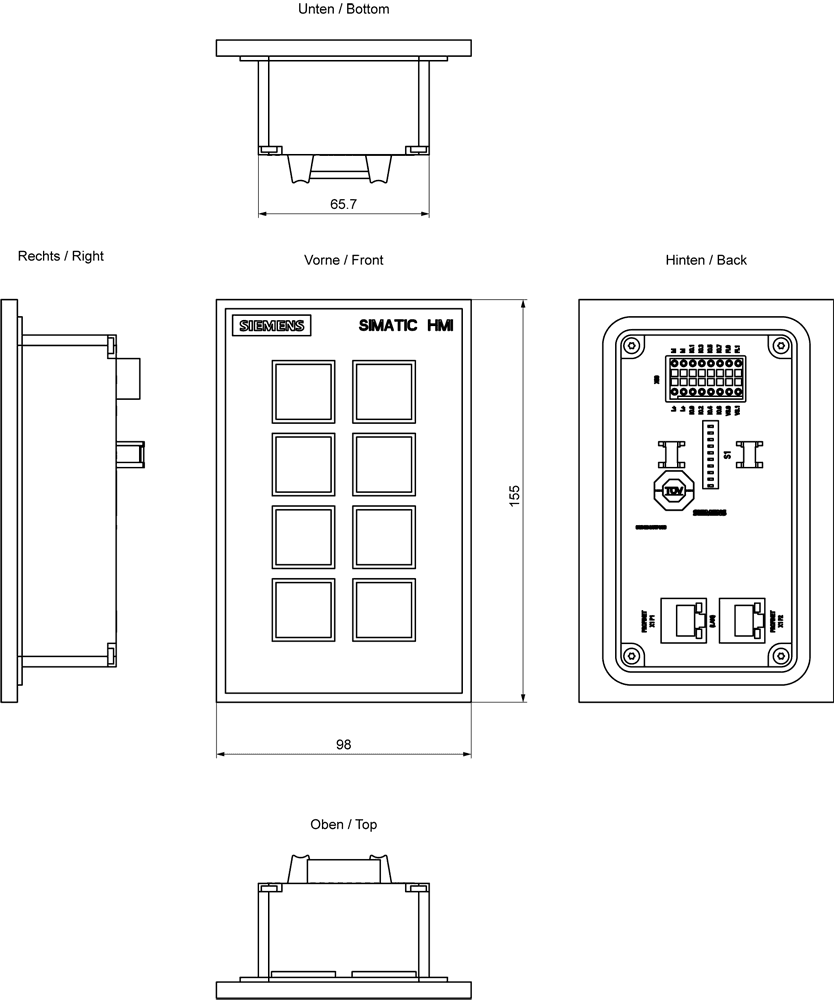

Mounting cutout, width67.7 mm; Max. thickness of mounting plate 2 - 6 mm
Mounting cutout, height129.7 mm
Type of supply voltageDC
Height of housing front155 mm
Short-circuit protectionYes
— Number of function keys8
Key and signal lamp testYes; automatically when switching on

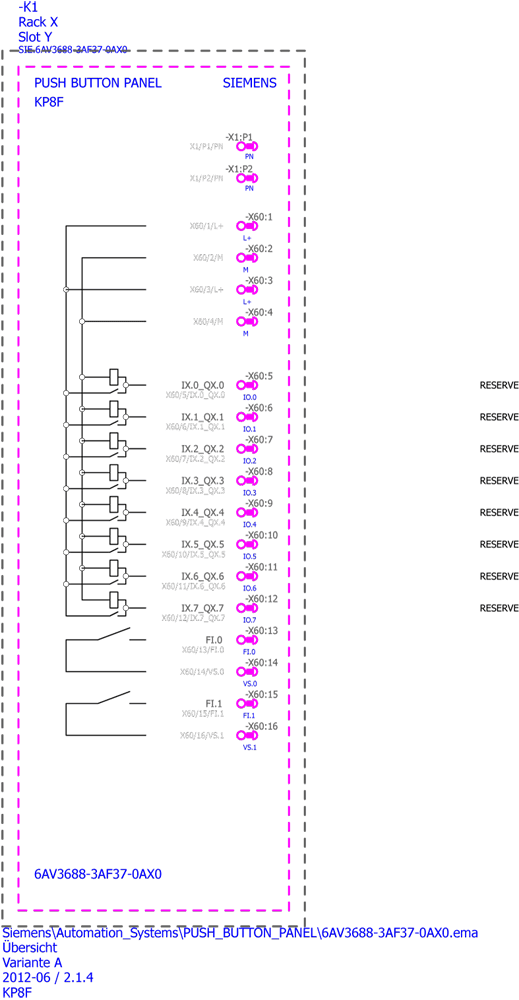

Number of digital inputs8; total inputs and outputs max. 8 and 2x SIL 2 or 1x SIL 3
Product type designationKP8F PN
Weight (without packaging)280 g
Number of digital outputs8; Max. 8 inputs and outputs (total)
With parameterizable keysYes
— At maximum tilt angle, max.45 °C
— At maximum tilt angle, min.0 °C
Width of the housing front98 mm
— Number of short-stroke keys8
Wall mounting/direct mountingNo
Number of PROFINET interfaces2; Incl. switch
Suitable for safety functionsYes
— For vertical installation, max.55 °C
— For vertical installation, min.0 °C
Current consumption (rated value)0.3 A
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
— user-definable label membrane keysYes
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
Number of industrial Ethernet interfaces2; For the construction of lines and rings without external switch
Number of slots for command devices and signaling units0
maximum permissible angle of inclination without external ventilation30°; To the front/rear
