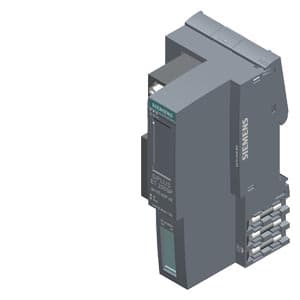

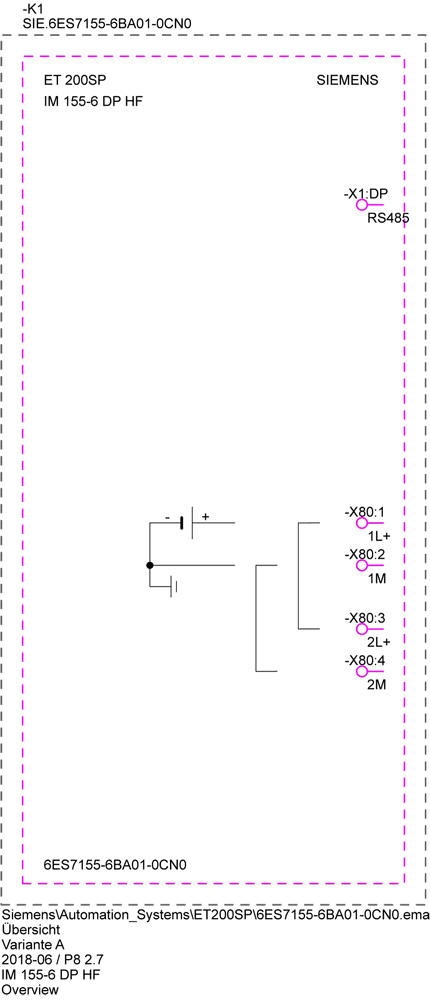

SIPLUS ET 200SP IM155-6DP HF based on 6ES7155-6BA01-0CN0 with conformal coating
Nomor Part: 6AG1155-6BA01-7CN0
Kategori
Fieldbus, decentr. periphery - communication module
Siemens 6AG1155-6BA01-7CN0. SIPLUS ET 200SP IM155-6DP HF based on 6ES7155-6BA01-0CN0 with conformal coating, -40…+70 °C, bundle PROFIBUS IM, max. 32 I/O modules and 16 ET 200AL modules, multi hot swap, bundle consists of: interface module (6AG1155-6BU01-7CN0), server module (6AG1193-6PA00-7AA0), PROFIBUS plug.
Spesifikasi

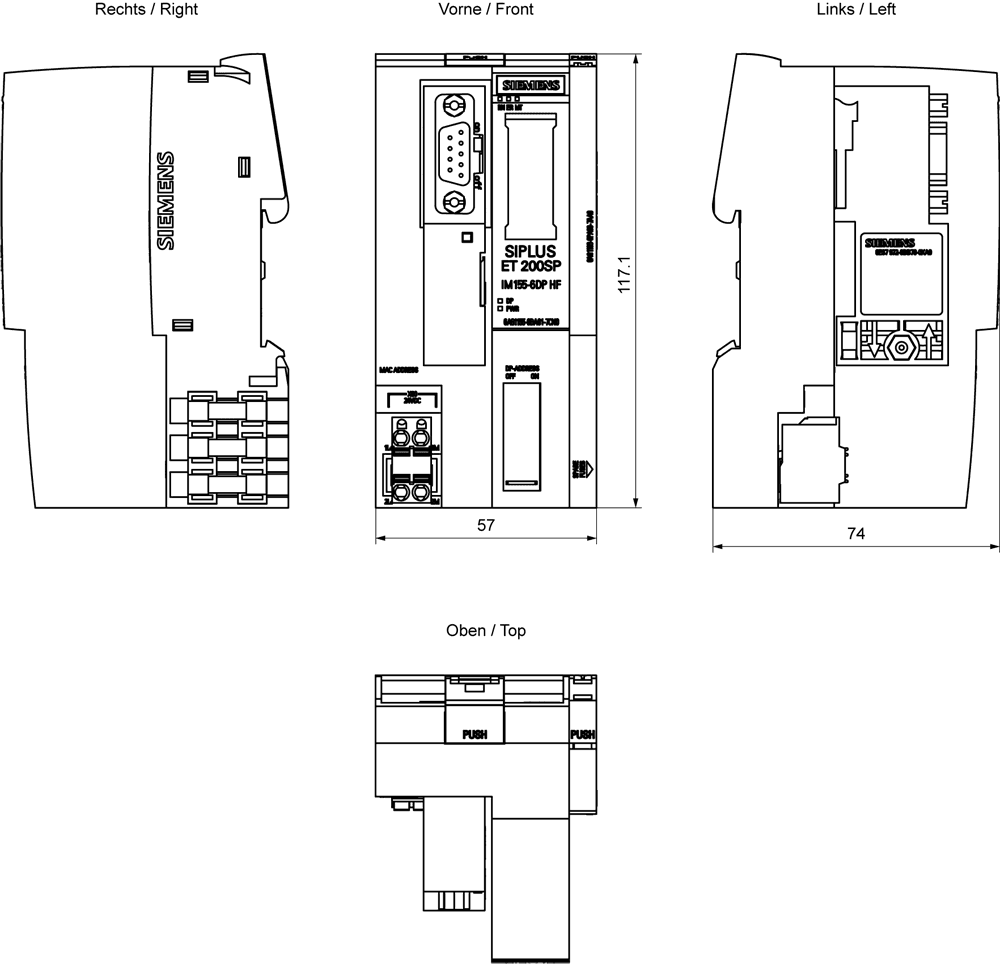

Dimensions
Width50 mm
Height117 mm
Depth74 mm
Other
I²t0.038 A²·s
— DPV0Yes
— DPV1Yes
AlarmsYes
PROFIBUSYes
PROFIsafeYes
EtherNet/IPNo
Modbus TCPNo
via datasetYes
Weight, approx.150 g
Power loss, typ.1.5 W
Rated value (DC)24 V
— SYNC capabilityYes
Status indicatorYes
— FREEZE capabilityYes
Inrush current, max.1.6 A
Diagnostics functionYes
Isolation tested with707 V DC (type test)
Current consumption, max.335 mA
Product type designationIM 155-6 DP HF
between different circuitsSafety extra low voltage SELV
Reverse polarity protectionYes
Number of PROFIBUS interfaces1
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IONo
between backplane bus and electronicsNo
between supply and all other circuitsNo
between PROFIBUS DP and all other circuit componentsYes
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
