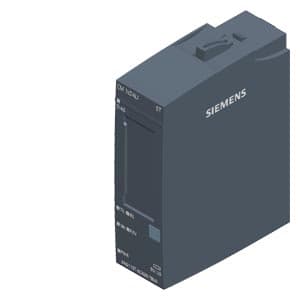

SIPLUS ET 200SP CM DALI based on 6ES7137-6CA00-0BU0 with conformal coating -40…+60 °C
Nomor Part: 6AG1137-6CA00-7BU0
Kategori
Fieldbus, decentr. periphery - communication module
Siemens 6AG1137-6CA00-7BU0. SIPLUS ET 200SP CM DALI based on 6ES7137-6CA00-0BU0 with conformal coating -40…+60 °C, DALI master module, integrated DALI bus power supply 160 mA up to 64 operating devices 63 controlgear units color code CC20, suitable for BU type U0.

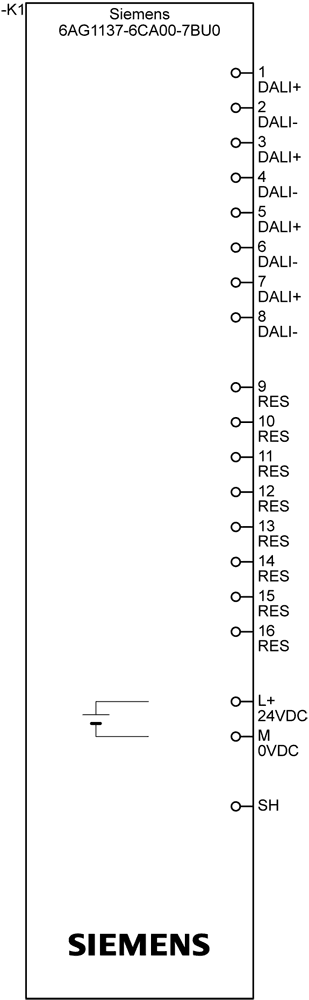

Spesifikasi

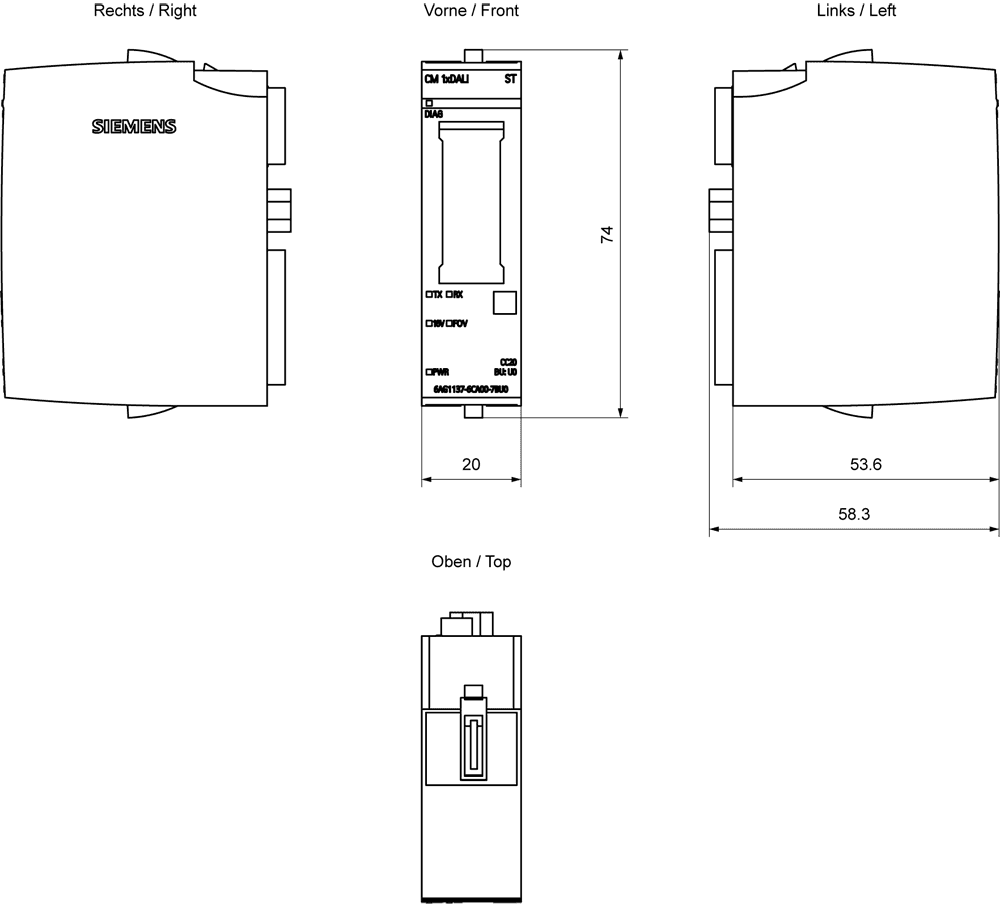

Dimensions
Width20 mm
Height73 mm
Depth58 mm
Other
— PushbuttonsYes
— Light sensorYes
Weight, approx.50 g
Power loss, typ.1.7 W
Rated value (DC)24 V
usable BaseUnitsBU type U0
to SIMATIC S7-1200Yes; FW V4.0 or higher
to SIMATIC S7-1500Yes
— Presence detectorYes
— Supply current, max.250 mA
— Supply current, min.160 mA
— Can be switched offYes
Isolation tested with3 000 V AC (type test)
— Further input devicesYes; general device type
— Absolute input devicesYes
Current consumption, max.250 mA
Current consumption, typ.92 mA
Product type designationCM 1xDALI
— Further operating devicesYes; general device type
— LED modules (device type 6)Yes
Reverse polarity protectionYes
— Color control (device type 8)Yes
— Direct voltage (device type 5)Yes
— Discharge lamps (device type 2)Yes
Current consumption (rated value)163 mA
— Fluorescent lamps (device type 0)Yes
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
— Incandescent lamps (device type 4)Yes
— Switching function (device type 7)Yes
between backplane bus and interfaceYes
— Low-voltage halogen lamps (device type 3)Yes
Color code for module-specific color-coded labelCC20
— Emergency lighting with single battery (device type 1)Yes
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3)
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3).
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-5Yes; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Yes; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
