I²t0.36 A²·s
— IRTNo
— MRPYes
— MRPDNo
AlarmsYes
PROFIBUSNo
PROFIsafeYes
EtherNet/IPNo
Modbus TCPNo
Secure BootNo
via datasetNo
— PROFIenergyNo

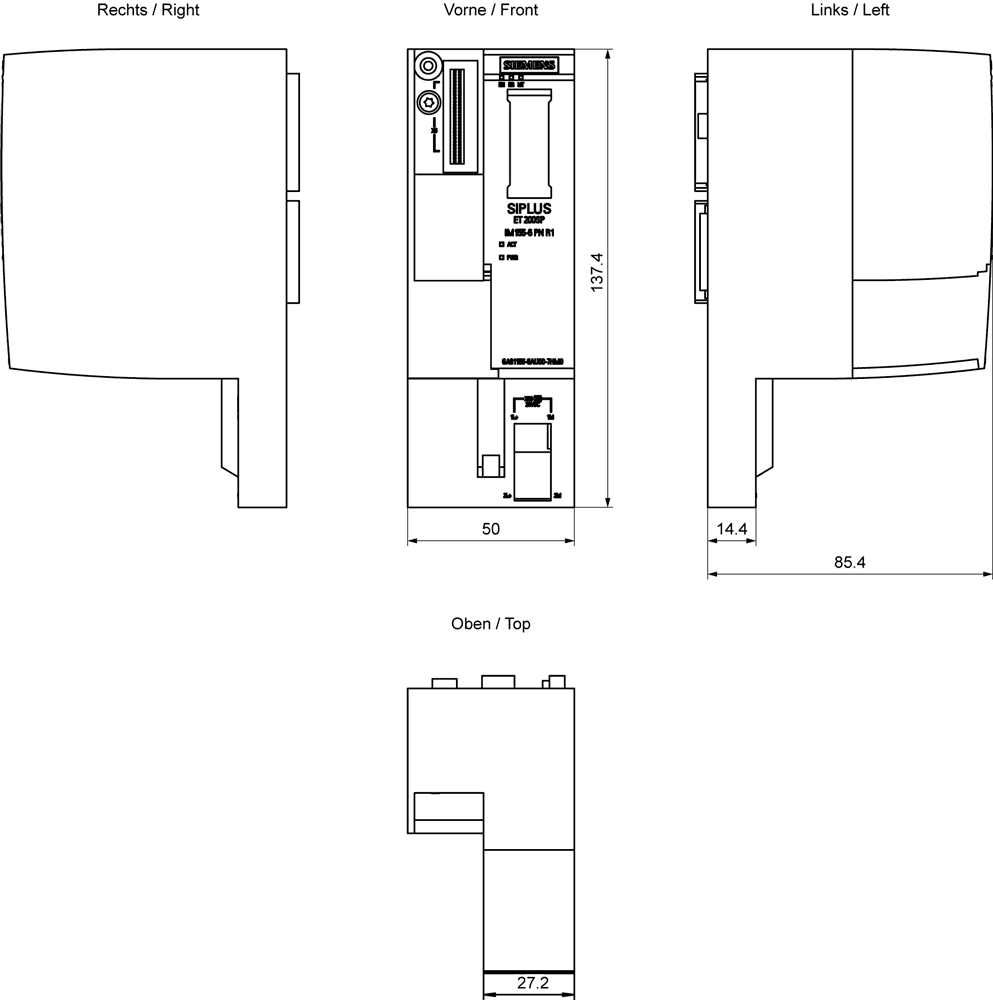

Weight, approx.192 g; without BusAdapter
— Shared deviceNo
data integrityYes
Power loss, typ.2.4 W
Rated value (DC)24 V
Status indicatorYes
Inrush current, max.5 A
— Prioritized startupNo
Diagnostics functionYes
safely removing dataNo
Isolation tested with707 V DC (type test)
signed firmware updateYes
Current consumption, max.700 mA
Short-circuit protectionYes

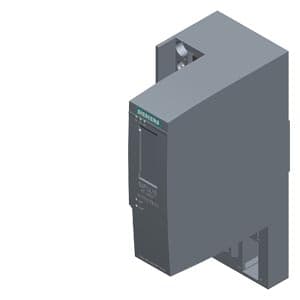

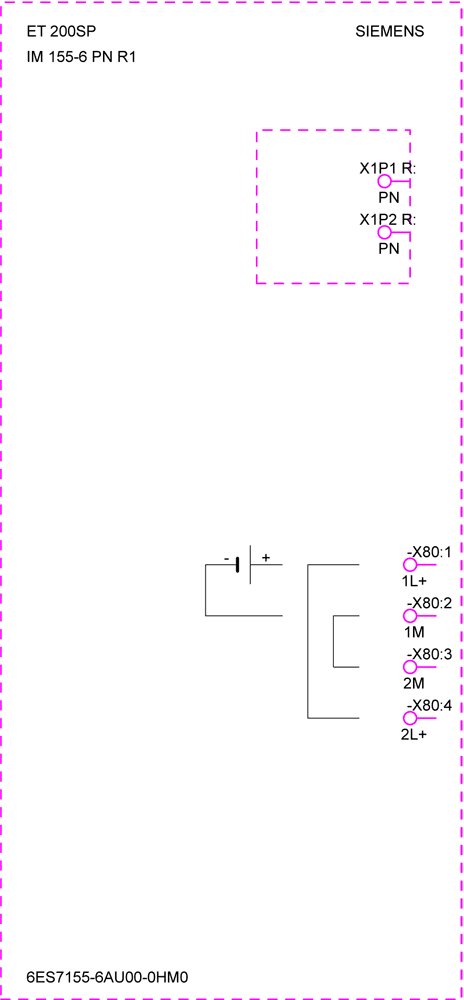

Product type designationIM 155-6 PN R1
between different circuitsSafety extra low voltage SELV
Reverse polarity protectionYes
Number of PROFINET interfaces1; 2 ports (switch)
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
between backplane bus and electronicsNo
between supply and all other circuitsYes
— global warming potential, (total) [CO2 eq]105 kg
between PROFINET and all other circuitsYes; 1500 V AC (type test)
— global warming potential, (during operation) [CO2 eq]91.9 kg
— global warming potential, (during production) [CO2 eq]13.7 kg
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— global warming potential, (after end of life cycle) [CO2 eq]-0.617 kg
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
