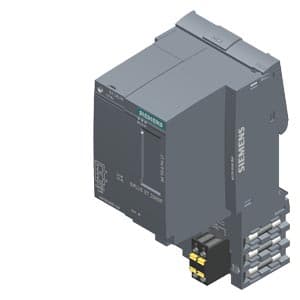

SIPLUS ET 200SP IM155-6PN ST / BA based on 6ES7155-6AA02-0BN0 with conformal coating
Nomor Part: 6AG1155-6AA02-7BN0
Kategori
Fieldbus, decentr. periphery - communication module
Siemens 6AG1155-6AA02-7BN0. SIPLUS ET 200SP IM155-6PN ST / BA based on 6ES7155-6AA02-0BN0 with conformal coating, -40...+70 °C, PROFINET interface module IM 155-6 PN ST, max. 32 I/O modules, and 16 ET 200AL modules, multi hot swap, optional PN strain relief, bundle consists of: interface module (6AG1155-6AU02-7BN0), server module (6AG1193-6PA00-7AA0), BusAdapter BA 2xRJ45 (6AG1193-6AR00-7AA0).

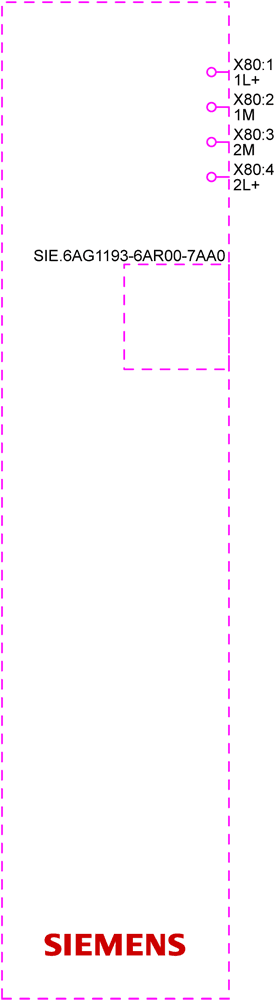

Spesifikasi

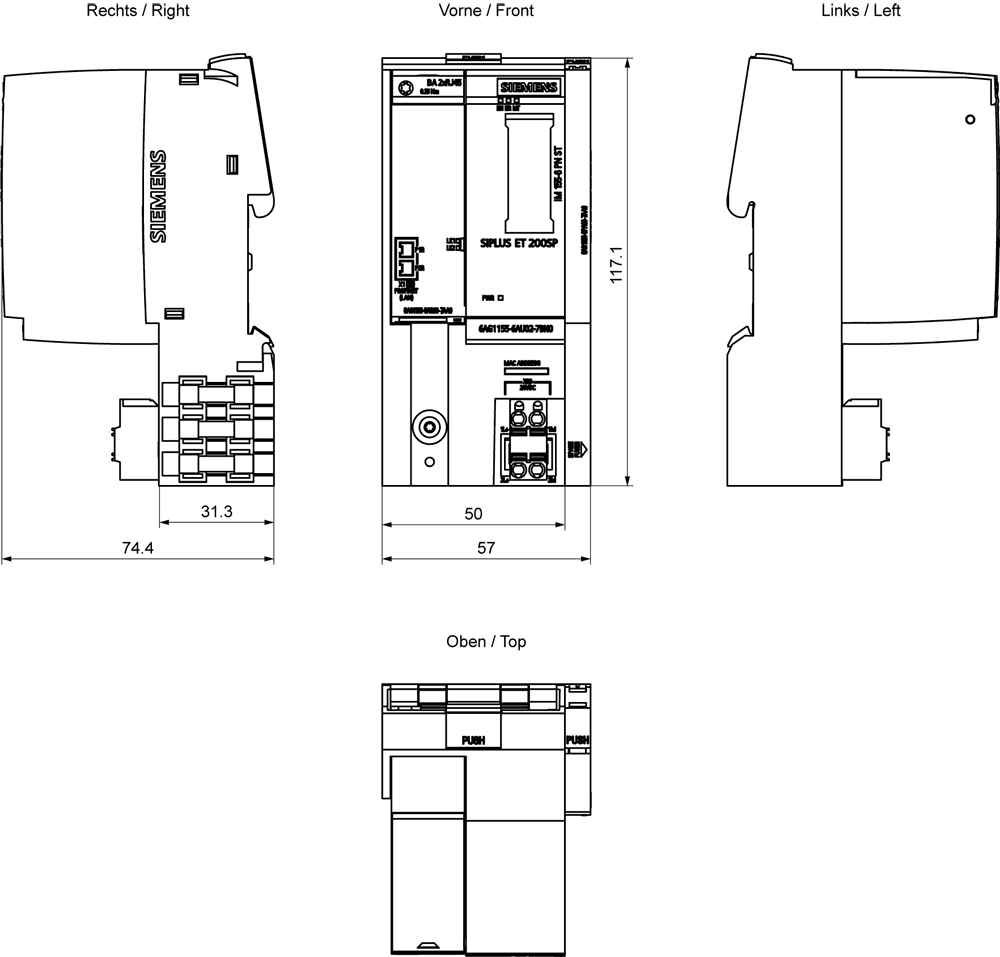

Dimensions
Width50 mm
Height117 mm
Depth74 mm
Other
I²t0.05 A²·s
— IRTYes; 1 ms to 4 ms at an interval of 125 µs
— MRPYes
— MRPDNo
AlarmsYes
PROFIBUSNo
PROFIsafeYes
EtherNet/IPNo
Modbus TCPNo
via datasetYes
— PROFIenergyYes
Strain reliefYes; Optional
Weight, approx.125 g; without BusAdapter
— FragmentationYes
— Shared deviceYes
data integrityYes
Power loss, typ.1.8 W
Rated value (DC)24 V
— Fast ForwardingYes
Status indicatorYes
Inrush current, max.1 A
— Prioritized startupYes
Diagnostics functionYes
safely removing dataYes
Isolation tested with707 V DC (type test)
Network loading class3
signed firmware updateYes
Current consumption, max.450 mA
PROFINET Security Class1
Short-circuit protectionYes
Product type designationIM 155-6 PN ST incl. BA 2x RJ45 and server module
— Dynamic Frame Packing (DFP)Yes
between different circuitsSafety extra low voltage SELV
Device identifier (DeviceID)0313H
— Number of coupling modules6; 1x output + max. 5x input
Reverse polarity protectionYes
Number of PROFINET interfaces1; 2 ports (switch)
Vendor identification (VendorID)002AH
Current consumption (rated value)350 mA
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
between backplane bus and electronicsNo
between supply and all other circuitsNo
between PROFINET and all other circuitsYes; 1500 V AC (type test)
Device ID according to ODVA (Product code)0FA2H
Manufacturer ID according to ODVA (VendorID)04E3H
— Number of IO Controllers with shared device, max.4
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
