stripped length7 mm
fastening methodDIN rail
product brand nameSENTRON
degree of pollution2

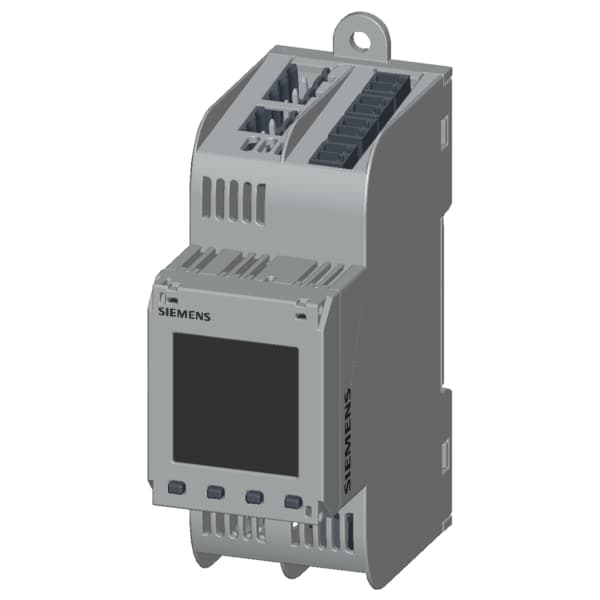

product designationResidual current monitor with communication
protection class IPIP20
overvoltage categoryIII
design of the productdigital, type B with communication
power loss [V∙A] maximum15 VA
type of electrical connectionscrew terminal
protection class IP on the frontIP30
reference code according to IEC 81346-2K
influence of the surrounding temperatureMax. 95% humidity
number of CO contacts for auxiliary contacts2
protection class IP at connection all terminalsIP20
switching current of relay contacts rated value5 A
switching voltage of relay contacts rated value230 V
wire length to the summation current transformer10 m
type of connectable summation current transformer5SV8711-2KK, 5SV8711-2KP, 5SV8712-2KK, 5SV8712-2KP, 5SV8713-2KK, 5SV8714-2KK
product component removable terminal for main circuitNo
type of voltage of the operating voltage for actuationAC
type of connectable conductor cross-sections for AWG cables for supply voltageAWG 26 ... AWG 14
