stripped length10 mm
fastening methodDIN rail
product brand nameSENTRON
degree of pollution2

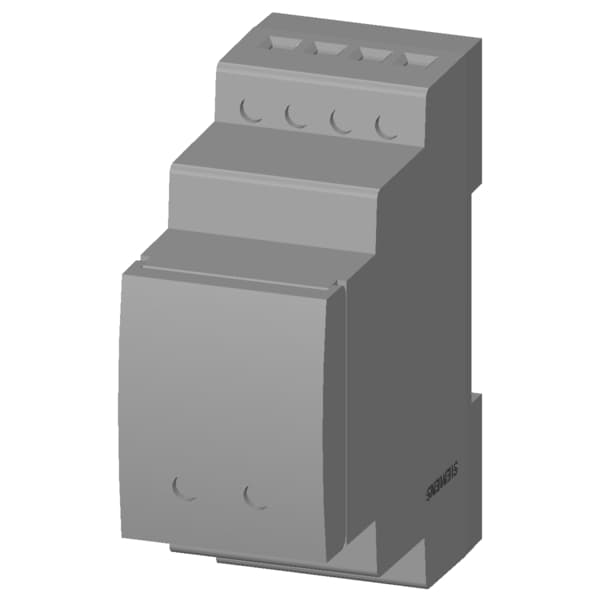

product designationresidual current monitor
overvoltage categoryIII
design of the productAnalog, type A
power loss [V∙A] maximum3 VA
type of electrical connectionscrew terminal
protection class IP on the frontIP41
reference code according to IEC 81346-2K
influence of the surrounding temperatureMax. 95% humidity
number of CO contacts for auxiliary contacts1
protection class IP at connection all terminalsIP20
switching current of relay contacts rated value6 A
switching voltage of relay contacts rated value230 V
wire length to the summation current transformer10 m
type of connectable summation current transformer5SV8700-0KK, 5SV8701-0KK, 5SV8702-0KK, 5SV8703-0KK, 5SV8704-0KK, 5SV8705-0KK, 5SV8706-0KK
product component removable terminal for main circuitNo
type of voltage of the operating voltage for actuationAC
product component removable terminal for auxiliary and control circuitNo
type of connectable conductor cross-sections for AWG cables for supply voltageAWG 25 ... AWG 14
