Aktif

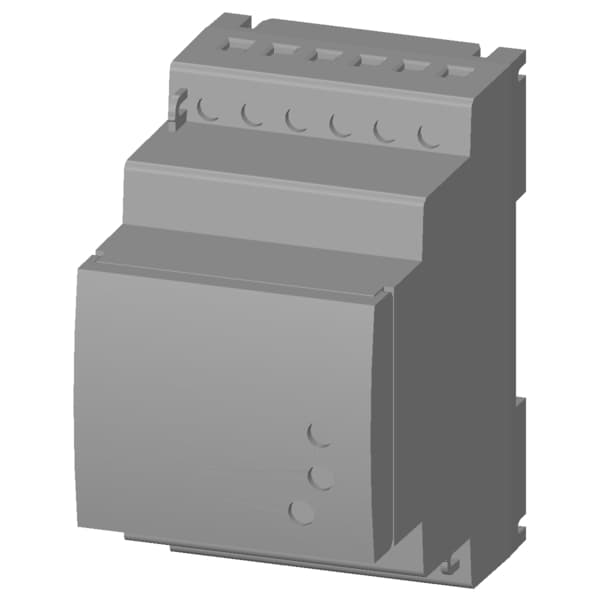

Differential current monitoring device Digital
Nomor Part: 5SV8001-6KK
Kategori
Residual current monitoring relay
Siemens 5SV8001-6KK. Differential current monitoring device Digital, Type A IDN 0.03 A 30 A 0.02 10 sec. (INS, SEL).
Spesifikasi
Mechanical
Net Weight267 g
Dimensions
Width54 mm
Height85 mm
Depth68 mm
Other
stripped length10 mm
fastening methodDIN rail
product brand nameSENTRON
degree of pollution2
product designationresidual current monitor
overvoltage categoryIII
design of the productDigital, type A
power loss [V∙A] maximum6 VA
type of electrical connectionscrew terminal
protection class IP on the frontIP41
reference code according to IEC 81346-2K
influence of the surrounding temperatureMax. 95% humidity
number of CO contacts for auxiliary contacts2
protection class IP at connection all terminalsIP20
switching current of relay contacts rated value6 A
switching voltage of relay contacts rated value230 V
wire length to the summation current transformer10 m
type of connectable summation current transformer5SV8700-0KK, 5SV8701-0KK, 5SV8702-0KK, 5SV8703-0KK, 5SV8704-0KK, 5SV8705-0KK, 5SV8706-0KK
product component removable terminal for main circuitNo
type of voltage of the operating voltage for actuationAC
product component removable terminal for auxiliary and control circuitNo
type of connectable conductor cross-sections for AWG cables for supply voltageAWG 26 ... AWG 14
