Modular residual current protective device Type A with Communication Please consider Radio approval! List of countries: see Certifi cates
Nomor Part: 5SV8122-6MP
Merek
Kategori
Residual current monitoring relay
Siemens 5SV8122-6MP. Modular residual current protective device Type A with Communication Please consider Radio approval! List of countries: see Certifi cates.
Spesifikasi
Mechanical
Net Weight90 g

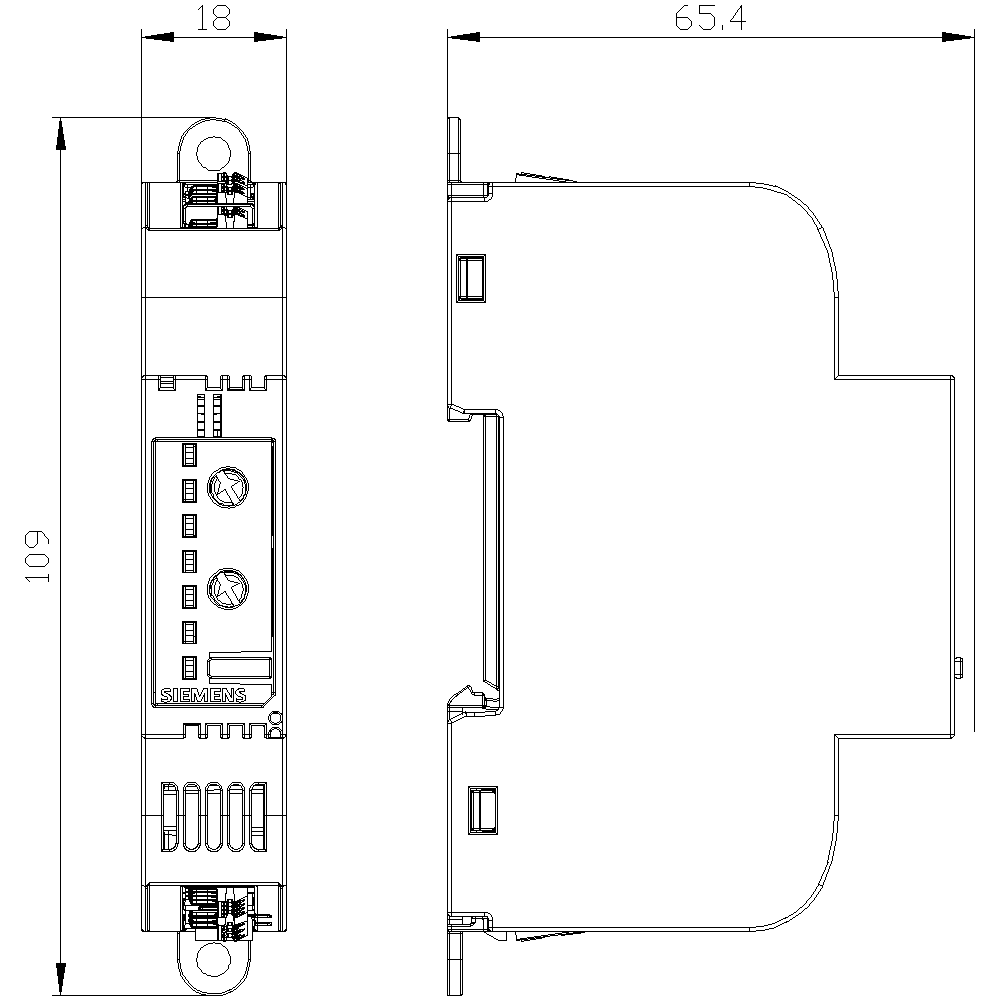

Dimensions
Width18 mm
Height109 mm
Depth64 mm
Other
product brand nameSENTRON
product designationModular residual current device
supply voltage at AC230 V
design of the productanalog, type A
type of electrical connectiontab connection
supply voltage frequency rated value50 Hz
reference code according to IEC 81346-2F
type of voltage of the operating voltage for actuation
