stripped length8 mm
fastening methodDIN rail
product brand nameSENTRON
degree of pollution3

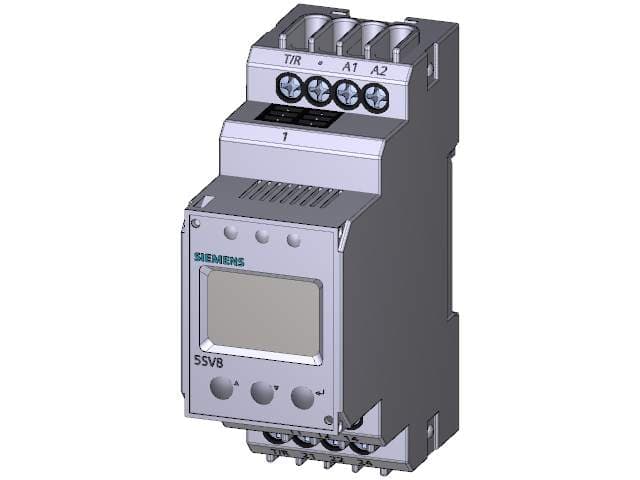

product designationmodular residual current device
overvoltage categoryIII
design of the productDigital, type B
power loss [V∙A] maximum6.5 VA
material of the enclosurePC
type of electrical connectionscrew terminal
protection class IP on the frontIP30
reference code according to IEC 81346-2F
influence of the surrounding temperatureMax. 95% humidity
number of CO contacts for auxiliary contacts2
protection class IP at connection all terminalsIP20
switching current of relay contacts rated value5 A
switching voltage of relay contacts rated value250 V
wire length to the summation current transformer10 m
type of connectable summation current transformer5SV8701-2KK, 5SV8701-2KP, 5SV8702-2KK, 5SV8702-2KP, 5SV8703-2KK, 5SV8704-2KK
product component removable terminal for main circuitNo
type of voltage of the operating voltage for actuationDC
product component removable terminal for auxiliary and control circuitYes
type of connectable conductor cross-sections for AWG cables for supply voltageAWG 24 ... AWG 14
