Aktif
Residual Current Monitor analog Type A 1 Channel with Communication Please consider Radio approval! List of countries: see Certifi cates
Nomor Part: 5SV8022-6MP
Kategori
Residual current monitoring relay

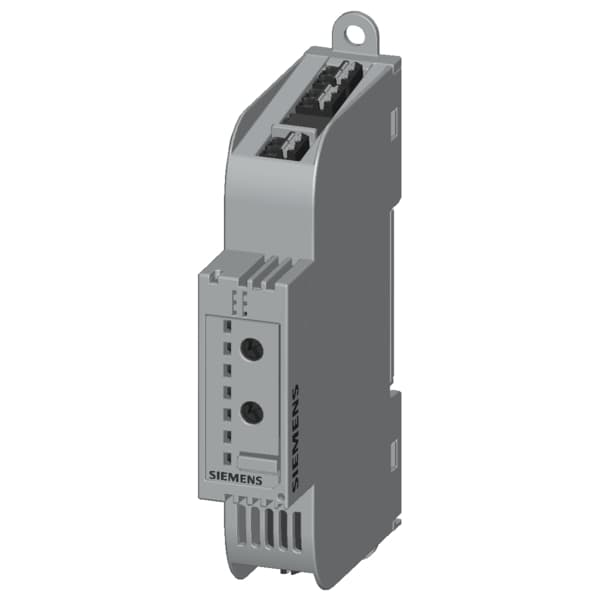

Siemens 5SV8022-6MP. Residual Current Monitor analog Type A 1 Channel with Communication Please consider Radio approval! List of countries: see Certifi cates.
Spesifikasi
Mechanical
Net Weight88 g

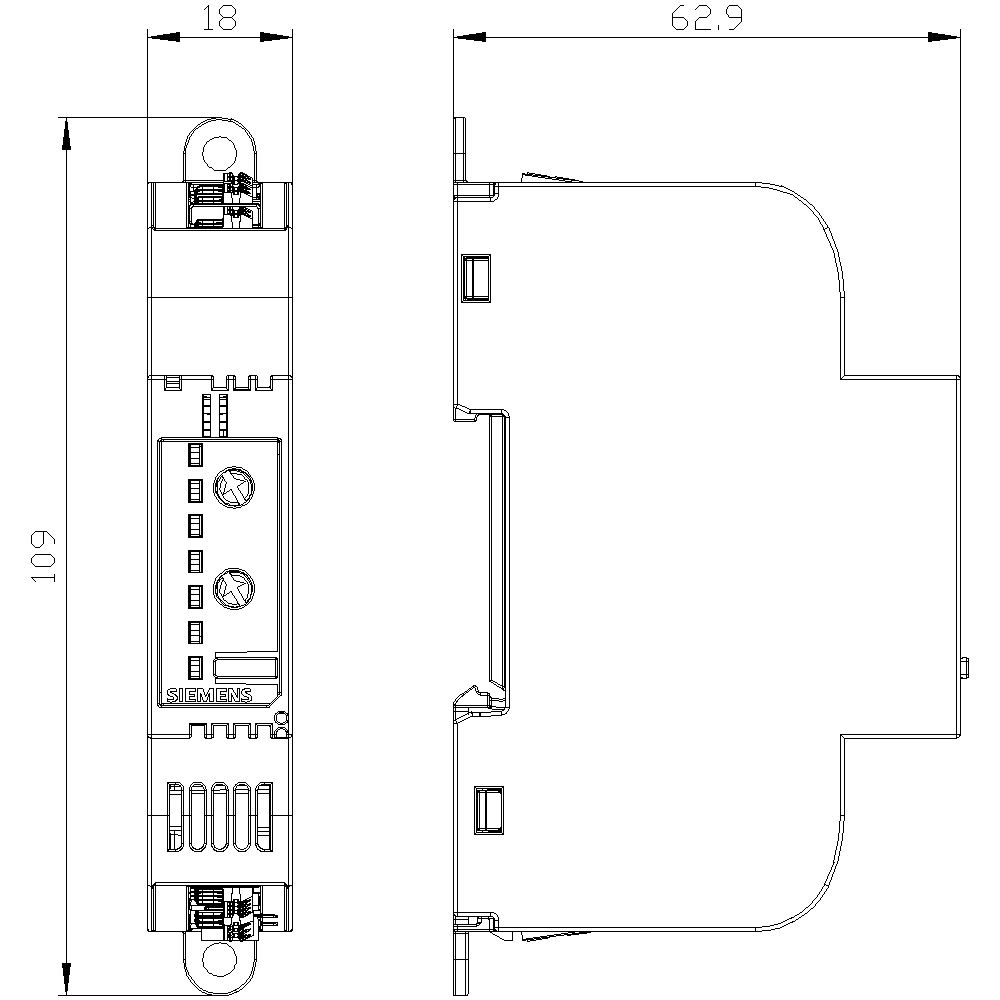

Dimensions
Width18 mm
Height109 mm
Depth64 mm
Other
stripped length7 mm
fastening methodDIN rail
product brand nameSENTRON
degree of pollution2
product designationResidual current monitor with communication
protection class IPIP20
overvoltage categoryIII
design of the productanalog, type A with communication
power loss [V∙A] maximum15 VA
type of electrical connectiontab connection
protection class IP on the frontIP30
reference code according to IEC 81346-2K
influence of the surrounding temperatureMax. 95% humidity
number of CO contacts for auxiliary contacts1
protection class IP at connection all terminalsIP20
switching current of relay contacts rated value5 A
switching voltage of relay contacts rated value230 V
wire length to the summation current transformer10 m
type of connectable summation current transformer5SV8710-0KK, 5SV8711-0KK, 5-SV8712-0KK, 5SV8713-0KK, 5SV8714-0KK
product component removable terminal for main circuitNo
type of voltage of the operating voltage for actuationAC
type of connectable conductor cross-sections for AWG cables for supply voltageAWG 24 ... AWG 16
