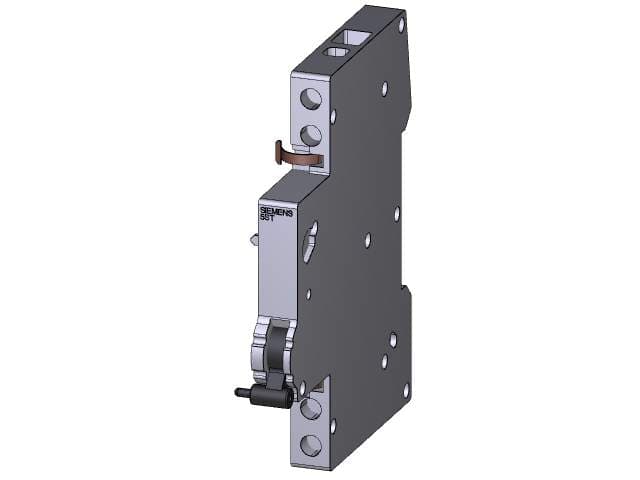

Name: auxiliary switch 2 NC with test button for miniature circuit breakers 5SL
Brand: Siemens
SKU: 5ST3012-2
Availability: InStock

Spesifikasi

Mechanical

Net Weight71 g

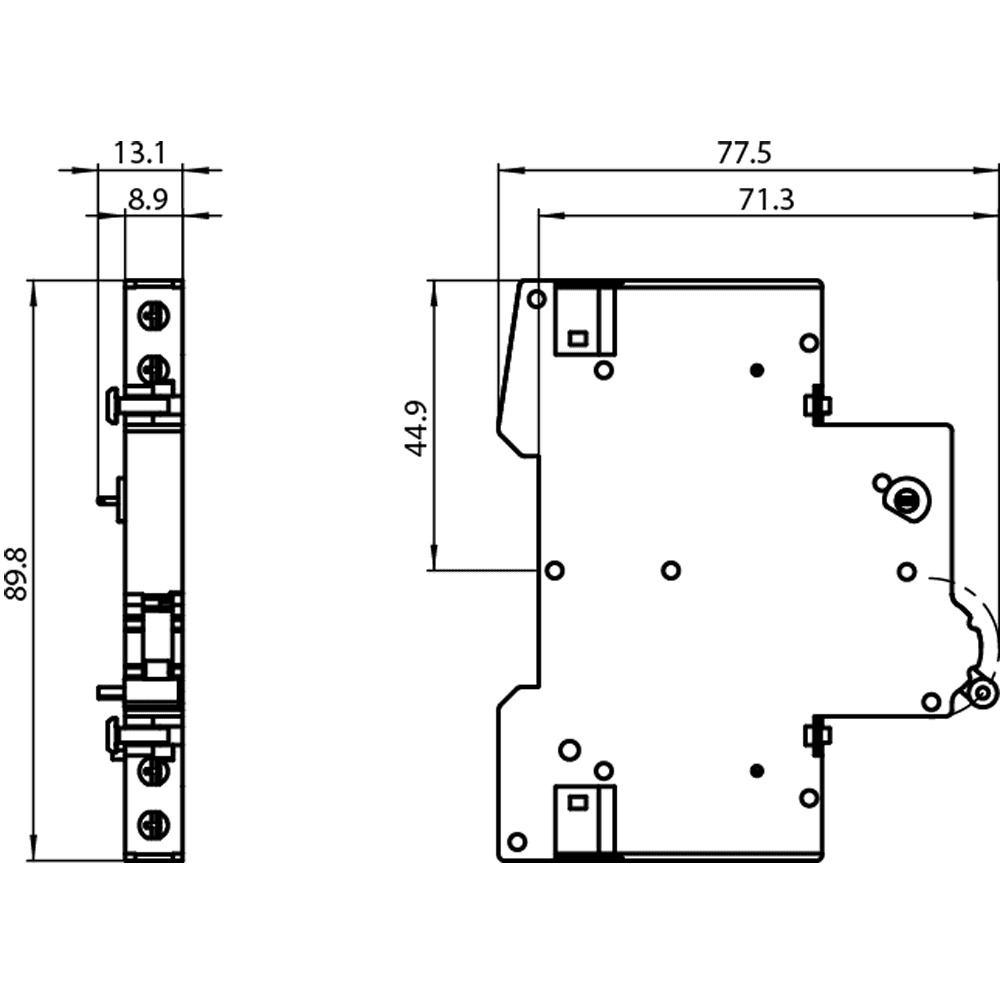

Dimensions

Width9 mm

Height90 mm

Depth70 mm

Other

standardIEC/EN60947-5-1; IEC/EN62019; GB14048.5

product extensionauxiliary switch

product brand nameSENTRON

product designationauxiliary switches

protection class IPIP20

design of the productMountable

number of CO contacts0

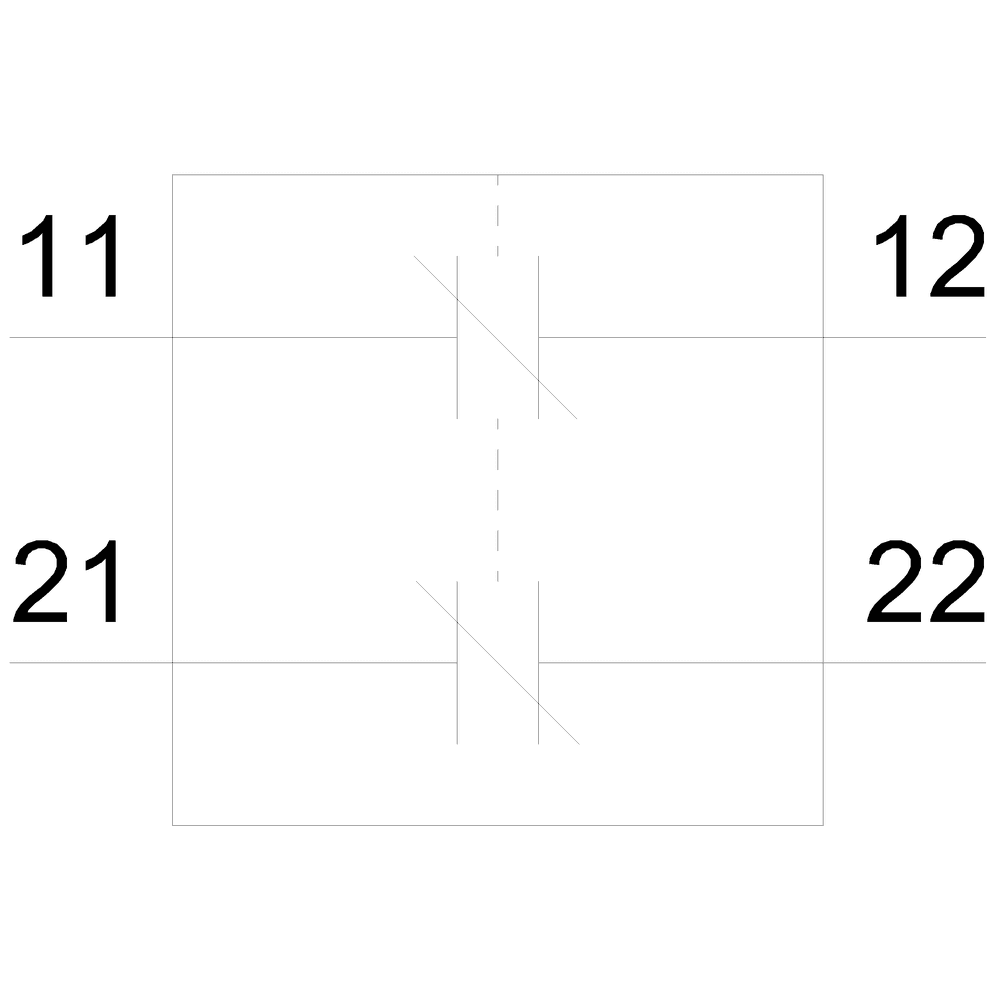

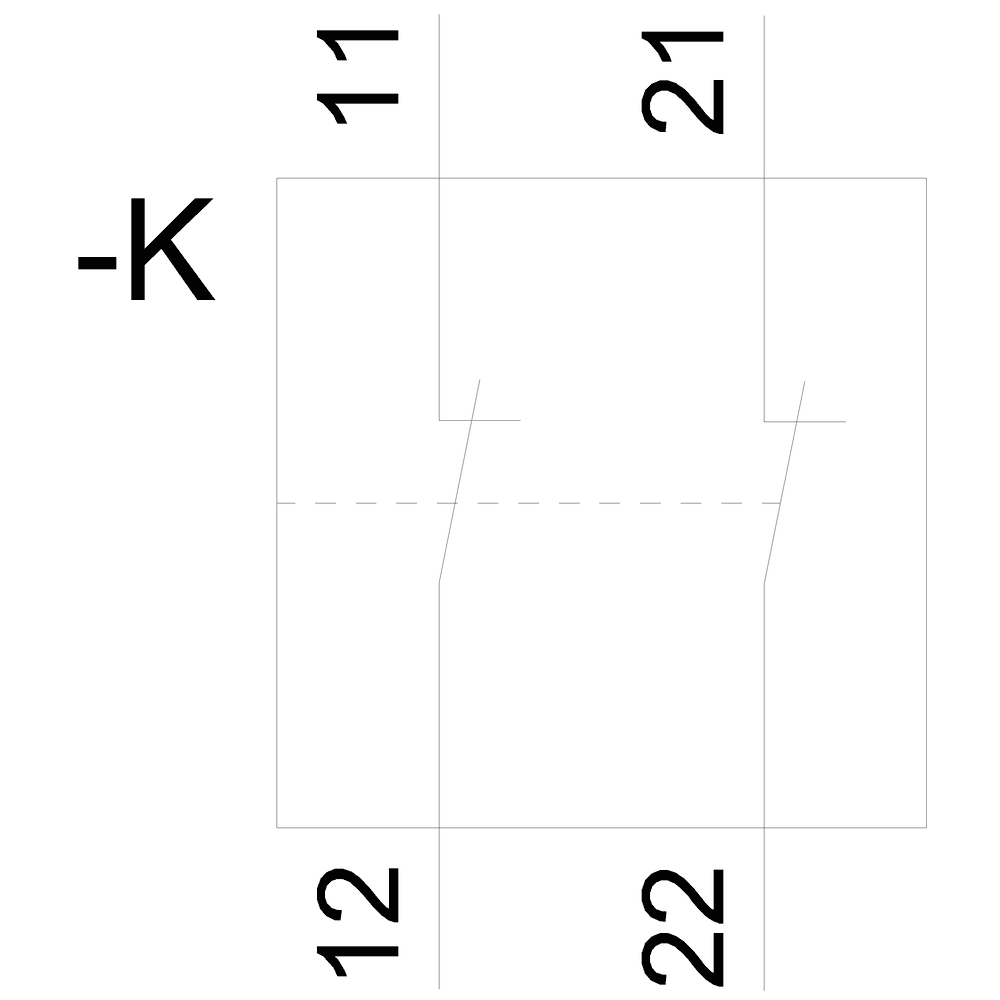

number of NC contacts2

number of NO contacts0

number of modular width units0.5

insulation voltage rated value440 V

number of fault signal contacts0

product extension can be mountedUniversal

type of voltage of control voltageAC/DC

design of the product factory mountedNo

operational current at DC rated value0.05 A

ambient temperature during storage minimum-40 °C

electrical endurance (operating cycles) typical10 000
