auxiliary switch with test button 1 NO + 1 NC for miniature circuit breakers 5SL

Name: auxiliary switch with test button 1 NO + 1 NC for miniature circuit breakers 5SL
Brand: Siemens
SKU: 5ST3010-2
Availability: InStock

Nomor Part: 5ST3010-2

Merek

Kunjungi Situs Web

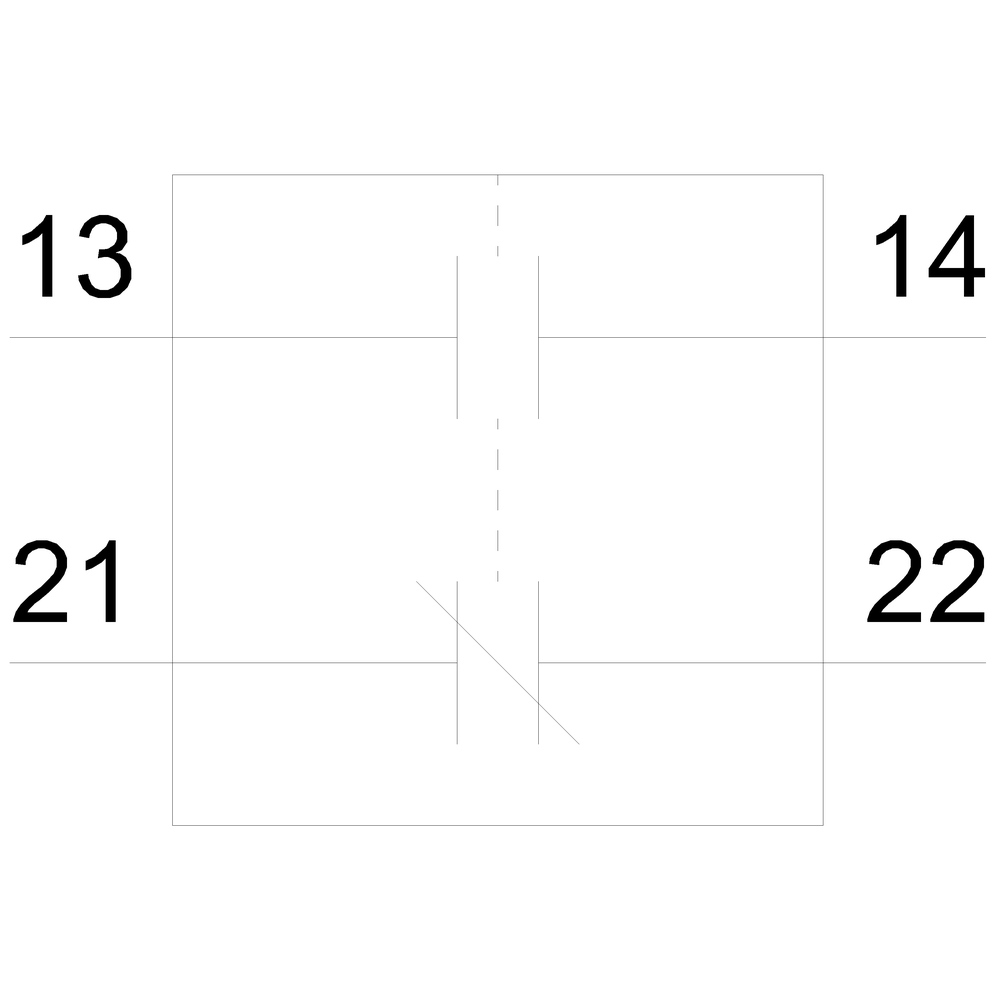

Siemens 5ST3010-2. auxiliary switch with test button 1 NO + 1 NC for miniature circuit breakers 5SL, 5SY, 5SP, incorporated switch 5TL1, RCBO 5SU1 (without 5SU1…FP/FR), RCCB 5SV (for 5SU1, handle coupler 5ST3805-1 is required).

Spesifikasi

Mechanical

Net Weight68 g

Dimensions

Width9 mm

Height90 mm

Depth70 mm

Other

standardIEC/EN60947-5-1; IEC/EN62019; GB14048.5

product extensionauxiliary switch

product brand nameSENTRON

product designationauxiliary switches

protection class IPIP20

design of the productMountable

number of CO contacts0

number of NC contacts1

number of NO contacts1

number of modular width units0.5

insulation voltage rated value440 V

number of fault signal contacts0

product extension can be mountedUniversal

type of voltage of control voltageAC/DC

design of the product factory mountedNo

operational current at DC rated value0.05 A

ambient temperature during storage minimum-40 °C

electrical endurance (operating cycles) typical10 000
