Aktif
Auxiliary switch 1 CO for RCBO 2/3/4P Un: 230/400V
Nomor Part: 5ST1010-0FP
Kategori
Auxiliary device for distribution board devices

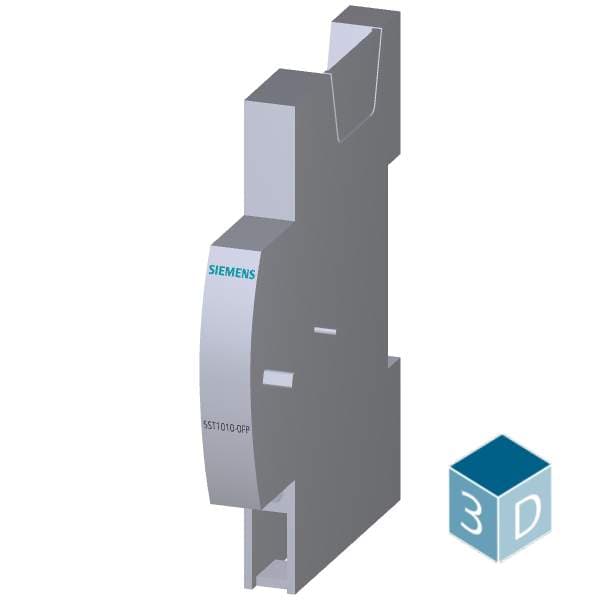

Siemens 5ST1010-0FP. Auxiliary switch 1 CO for RCBO 2/3/4P Un: 230/400V.
Spesifikasi
Mechanical
Net Weight49 g

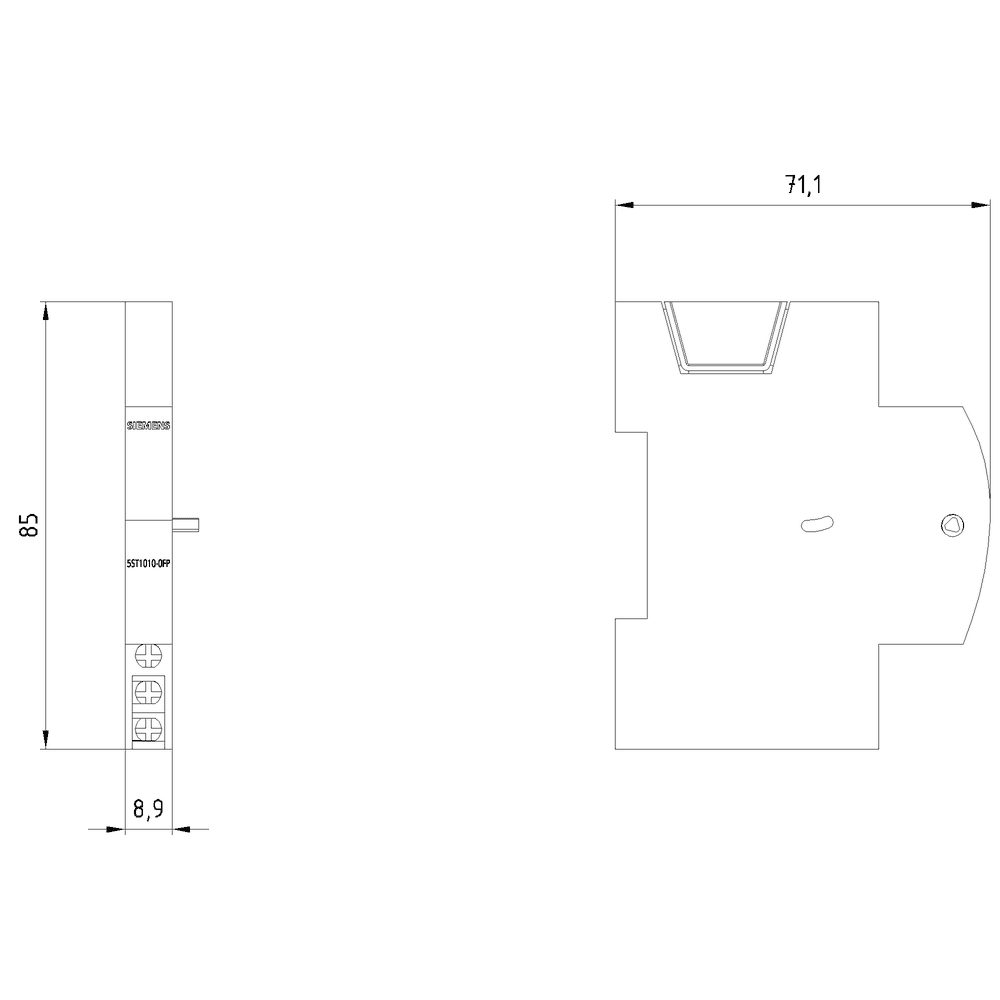

Dimensions
Width9 mm
Height85 mm
Depth72 mm
Other
standardIEC/EN62019
product extensionAuxiliary current switch
product brand nameSENTRON
product designationauxiliary switches
protection class IPIP20
design of the productMountable
number of CO contacts1
number of NC contacts0
number of NO contacts0
number of modular width units1
design of the auxiliary switch1 CO contact, 6 A, 230 V AC
number of fault signal contacts0
product extension can be mounted5SU1...-.FP/FR/FN..
type of voltage of control voltageAC/DC
design of the product factory mountedNo
switching capacity current rated value6 A
ambient temperature during storage minimum-40 °C
product function test function for fault current tripNo
