Name: auxiliary switch 2 NO for miniature circuit breakers 5SL
Brand: Siemens
SKU: 5ST3011
Availability: InStock

Spesifikasi

Mechanical

Net Weight62 g

Dimensions

Width9 mm

Height90 mm

Depth70 mm

Other

standardIEC/EN60947-5-1; IEC/EN62019

product extensionauxiliary switch

product brand nameSENTRON

product designationauxiliary switches

protection class IPIP20

design of the productMountable

number of CO contacts0

number of NC contacts0

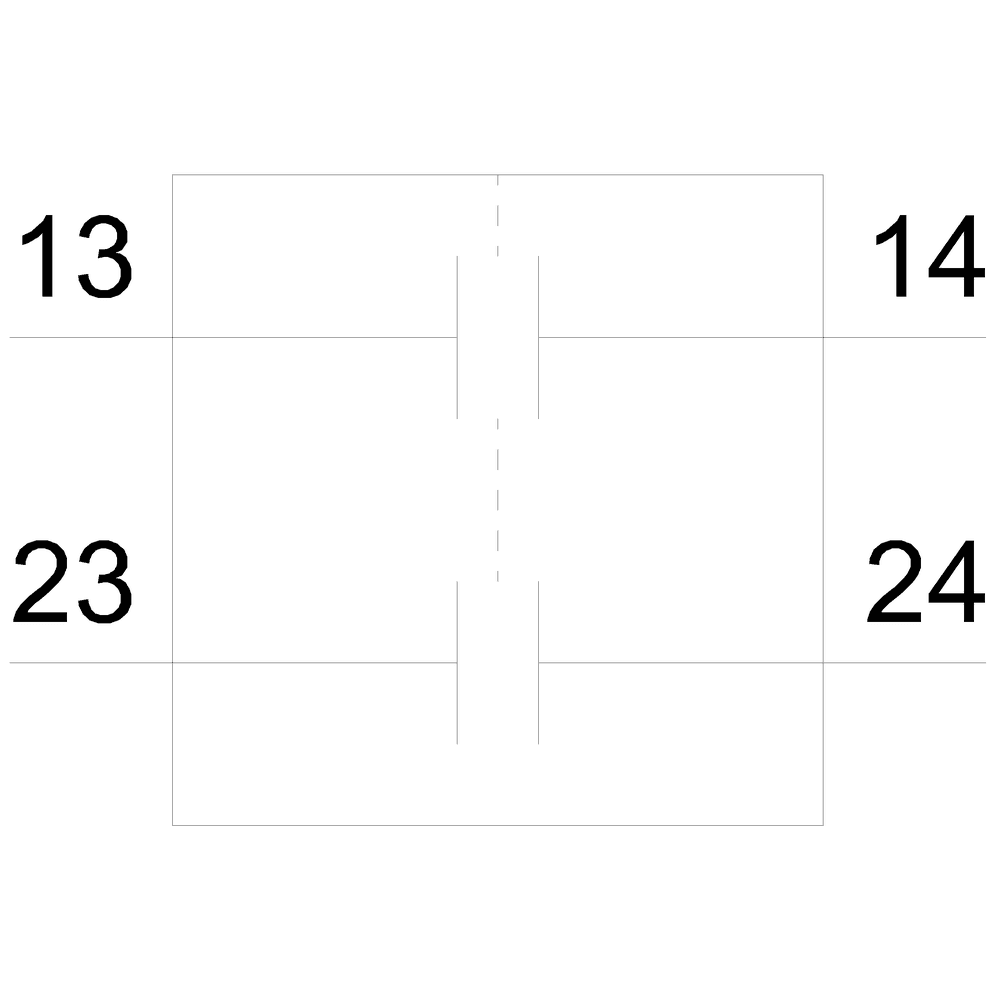

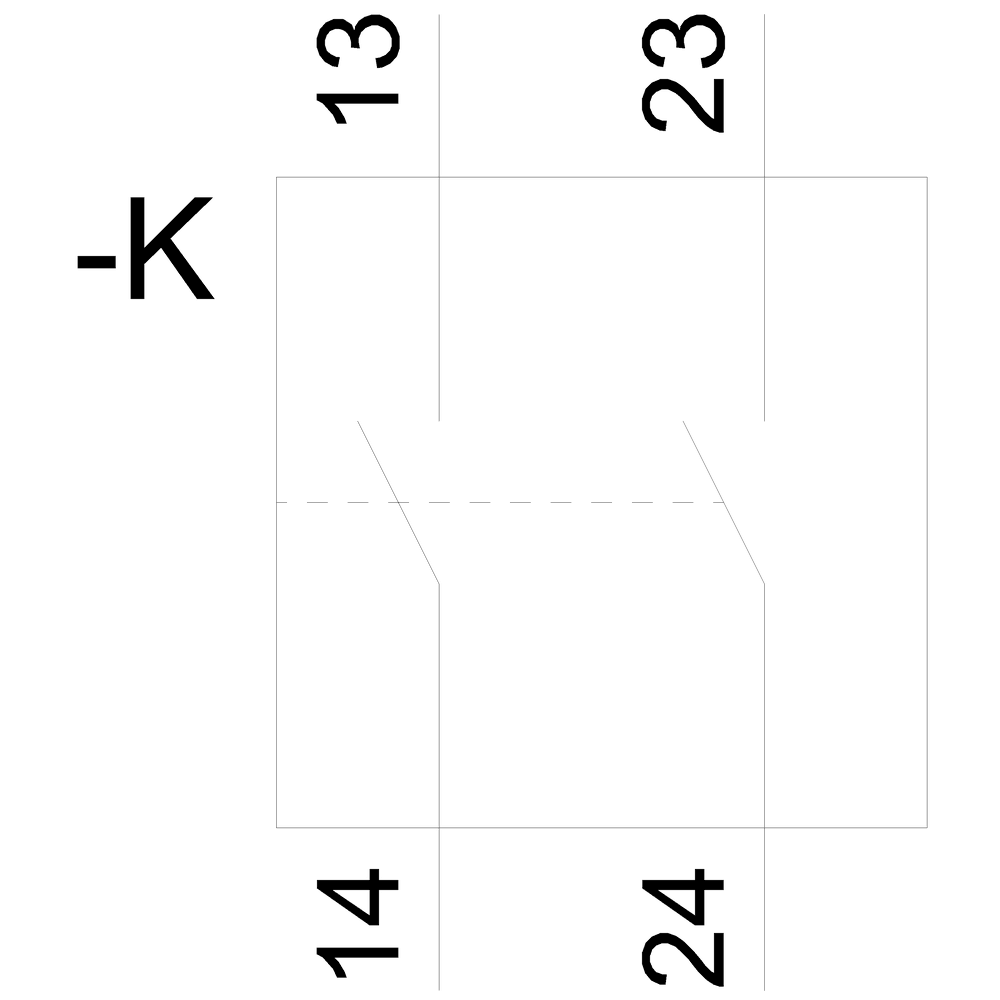

number of NO contacts2

number of modular width units0.5

insulation voltage rated value440 V

number of fault signal contacts0

product extension can be mountedUniversal

type of voltage of control voltageAC/DC

surge voltage resistance rated value4 kV

design of the product factory mountedNo

operational current at DC rated value0.01 A

ambient temperature during storage minimum-40 °C

electrical endurance (operating cycles) typical10 000
