auxiliary switch
Nomor Part: 5ST3010
Kategori
Auxiliary device for distribution board devices

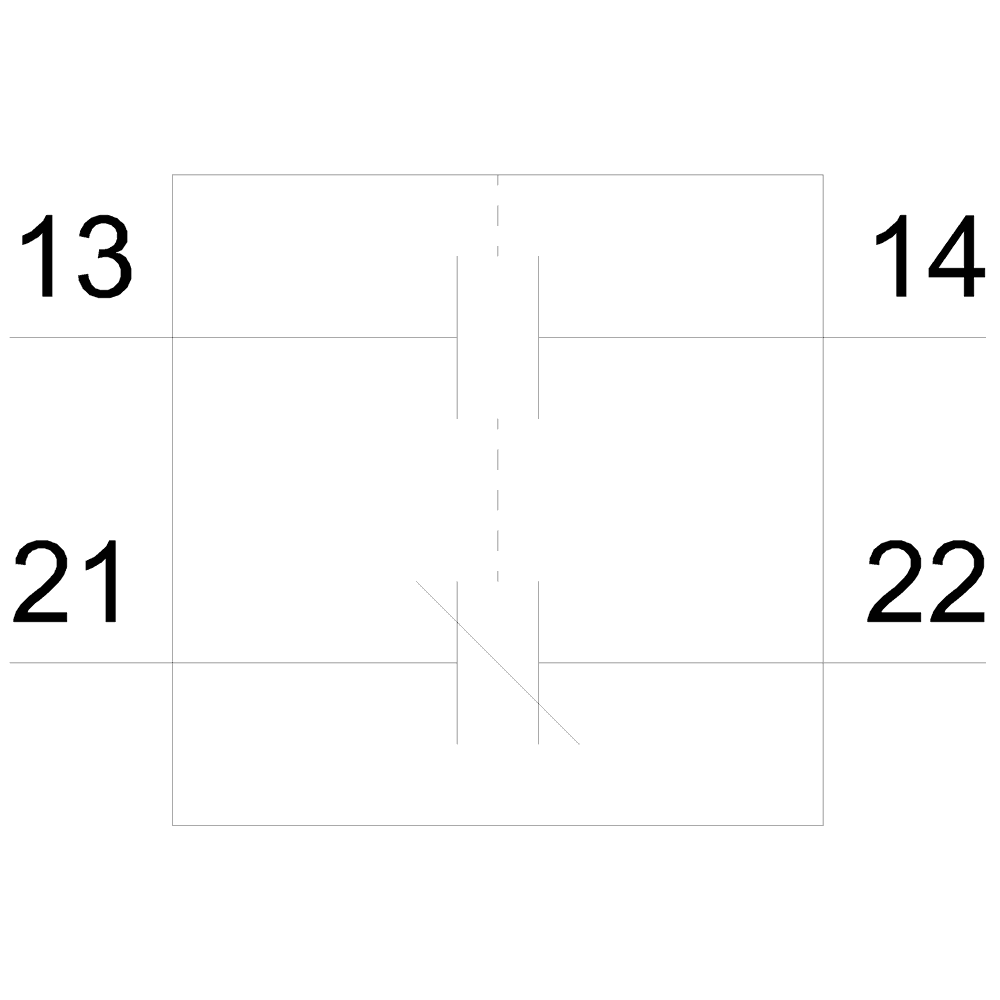

Siemens 5ST3010. auxiliary switch, 1 NO + 1 NC for miniature circuit breakers 5SL, 5SY, 5SP, incorporated switch 5TL1, RCBO 5SU1 (without 5SU1…FP/FR), RCCB 5SV (for 5SU1, handle coupler 5ST3805-1 is required).
Spesifikasi
Mechanical
Net Weight50.4 g
Dimensions
Width9 mm
Height90 mm
Depth70 mm
Other
standardIEC/EN60947-5-1; IEC/EN62019
product extensionauxiliary switch
product brand nameSENTRON
product designationauxiliary switches
protection class IPIP20
design of the productMountable
number of CO contacts0
number of NC contacts1
number of NO contacts1
number of modular width units0.5
insulation voltage rated value440 V
number of fault signal contacts0
product extension can be mountedUniversal
type of voltage of control voltageAC/DC
surge voltage resistance rated value4 kV
design of the product factory mountedNo
operational current at DC rated value0.01 A
ambient temperature during storage minimum-40 °C
electrical endurance (operating cycles) typical10 000
product function test function for fault current tripNo
