Aktif
MINIZED
Nomor Part: 5SG7651-0KK16
Kategori
D0-system switch disconnector

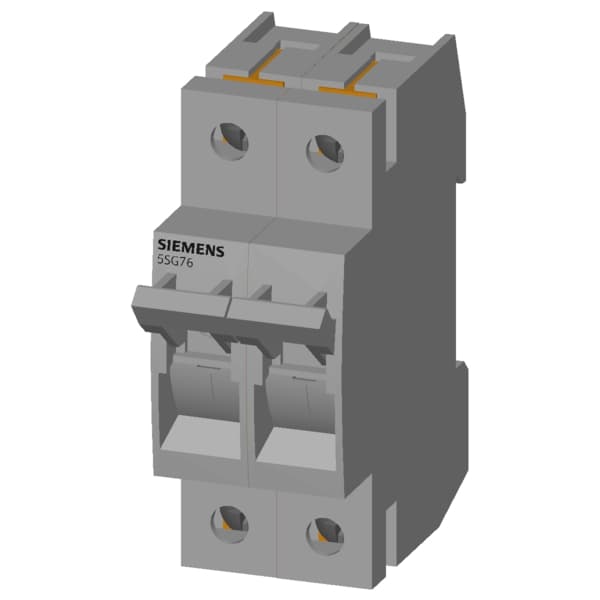

Siemens 5SG7651-0KK16. MINIZED, fuse switch disconnector, D01, 2-pole, 1-pole+N, In: 16 A, Un AC: 230 V, without fuse link.
Spesifikasi
Mechanical
Net Weight157 g
Dimensions
Width36 mm
Height88 mm
Depth70 mm
Other
design of pole1P+N
number of poles2
mounting positionany, preferably vertical
product brand nameSENTRON
protection class IPIP20, with connected conductors
overvoltage category4
product feature sealableYes
operating voltage at AC rated value230 V
surge voltage resistance rated value6 kV
size of fuse system according to EN 60269-1D01
