Aktif
MINIZED
Nomor Part: 5SG7113
Merek
Kategori
D0-system switch disconnector

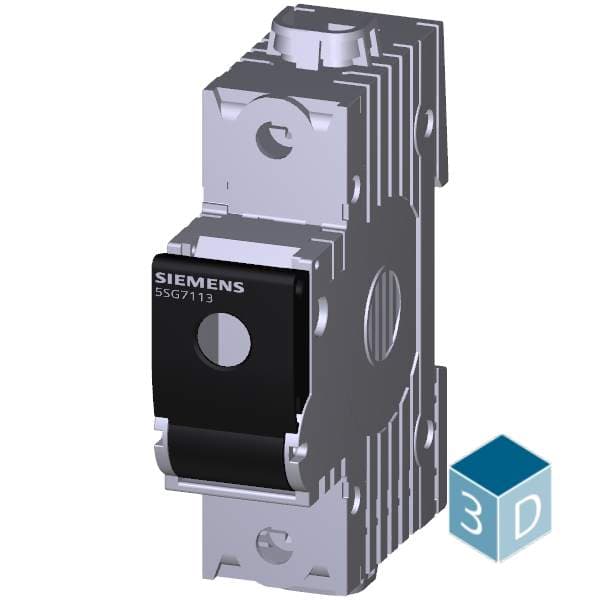

Siemens 5SG7113. MINIZED, switch disconnector with fuse, D02, 1-pole, In: 63 A, Un AC: 230 V, without adapter sleeve without fuse link.
Spesifikasi
Mechanical
Net Weight163 g

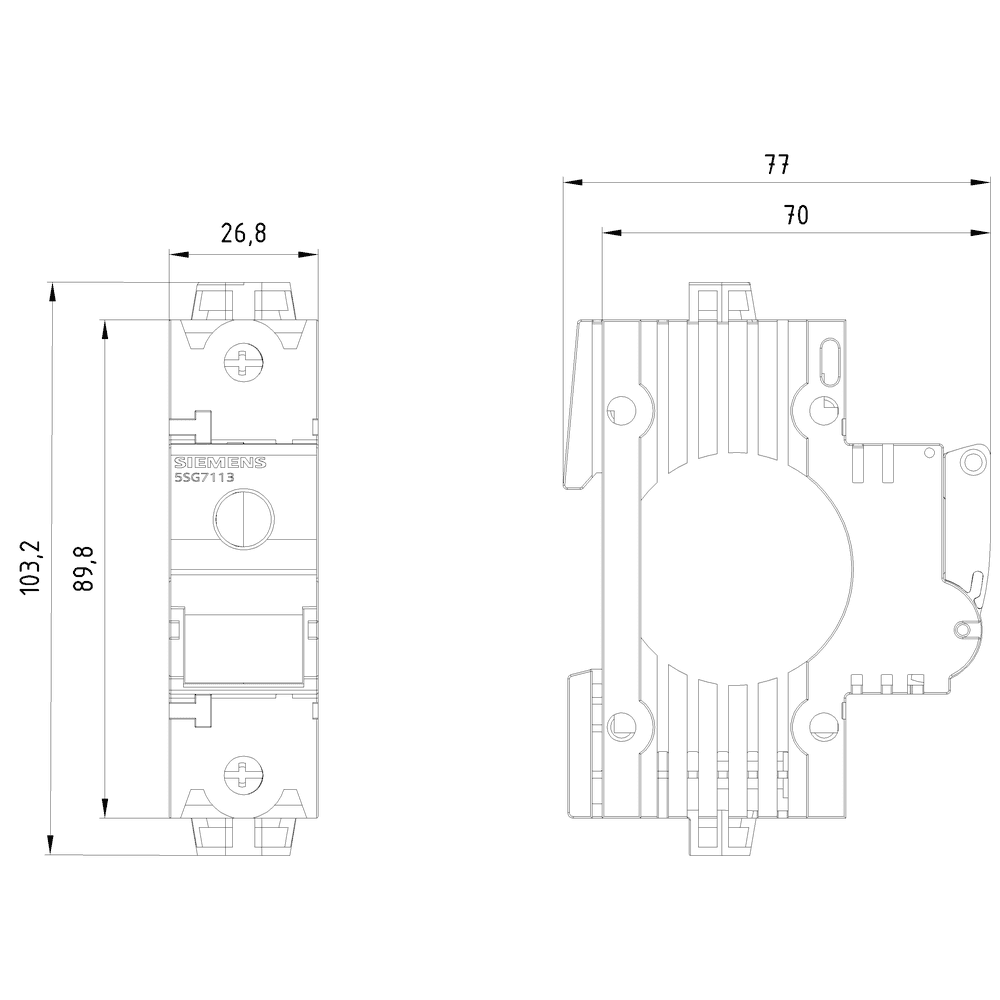

Dimensions
Width27 mm
Height90 mm
Depth70 mm
Other
number of poles1
mounting positionany, preferably vertical
product brand nameSENTRON
protection class IPIP20, with connected conductors
overvoltage category4
product feature sealableYes
operating voltage at AC rated value230 V
surge voltage resistance rated value6 kV
