MINIZED
Nomor Part: 5SG7133-8BA25
Merek
Kategori
D0-system switch disconnector

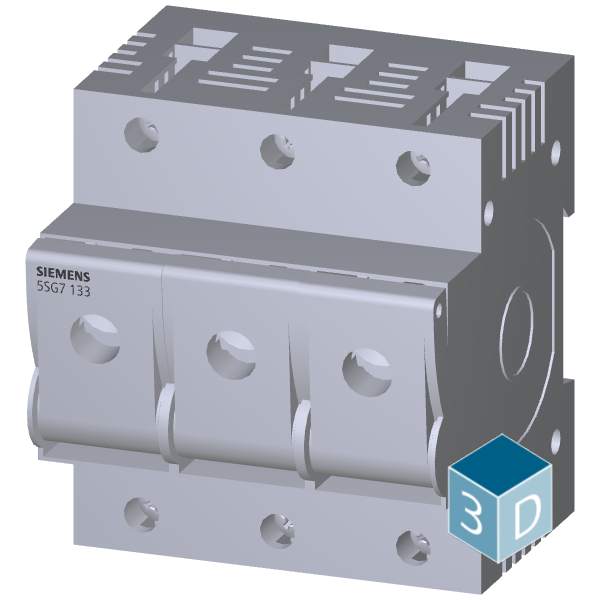

Siemens 5SG7133-8BA25. MINIZED, switch disconnector with fuse, D02, 3-pole, In: 25 A, Un AC: 400 V incl. adapter sleeve incl. fuse link.
Spesifikasi
Mechanical
Net Weight510 g
Dimensions
Width81 mm
Height90 mm
Depth70 mm
Other
number of poles3
mounting positionany, preferably vertical
product brand nameSENTRON
protection class IPIP20, with connected conductors
overvoltage category4
product feature sealableYes
operating voltage at AC rated value400 V
surge voltage resistance rated value6 kV
