Aktif
MINIZED
Nomor Part: 5SG7621-0KK16
Merek
Kategori
D0-system switch disconnector

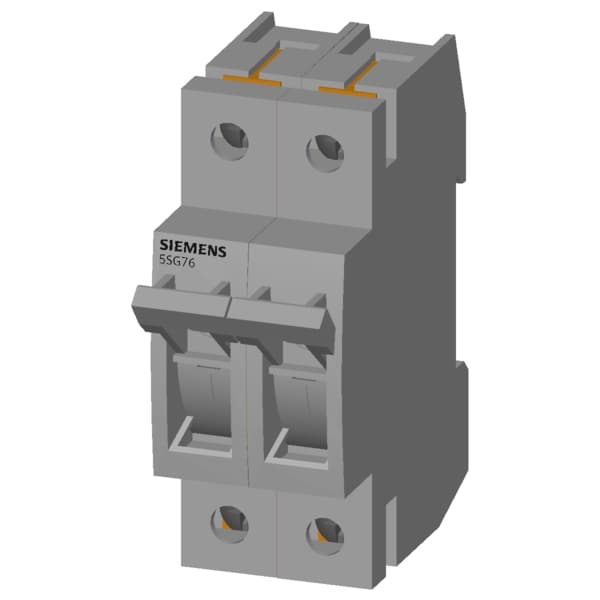

Siemens 5SG7621-0KK16. MINIZED, fuse switch disconnector, D01, 2-pole, In: 16 A, Un AC: 400 V without fuse link.
Spesifikasi
Mechanical
Net Weight153 g

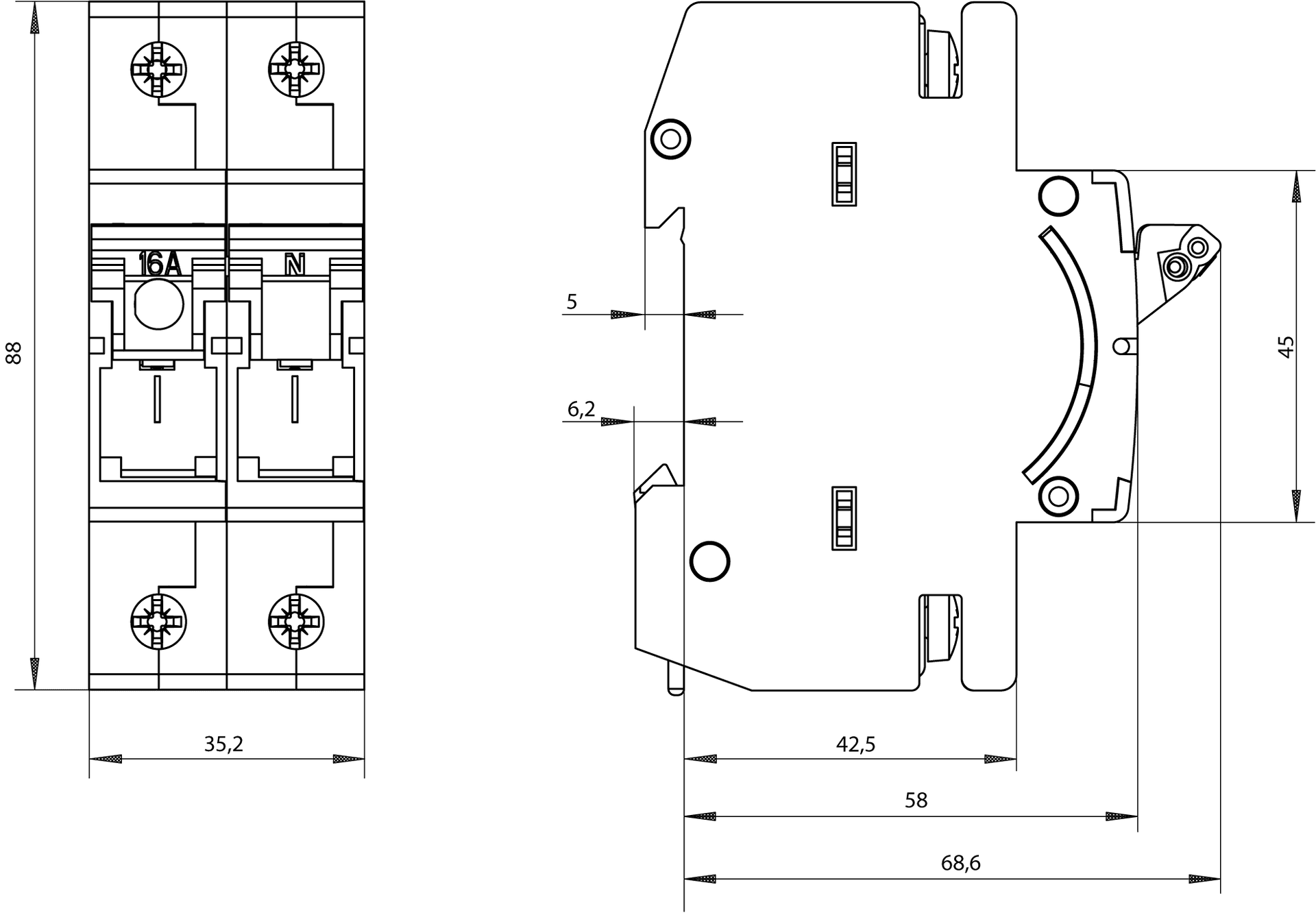

Dimensions
Width36 mm
Height88 mm
Depth70 mm
Other
number of poles2
mounting positionany, preferably vertical
product brand nameSENTRON
protection class IPIP20, with connected conductors
overvoltage category4
product feature sealableYes
operating voltage at AC rated value400 V
surge voltage resistance rated value6 kV
