Aktif
D0 switch disconnector
Nomor Part: 5SG7234-2
Merek
Kategori
D0-system switch disconnector
Siemens 5SG7234-2. D0 switch disconnector, with fuse 400 V D02 63 A 3-pole, for 60 mm busbar system with screwless terminals, with LED signal detector.
Spesifikasi
Mechanical
Net Weight378 g

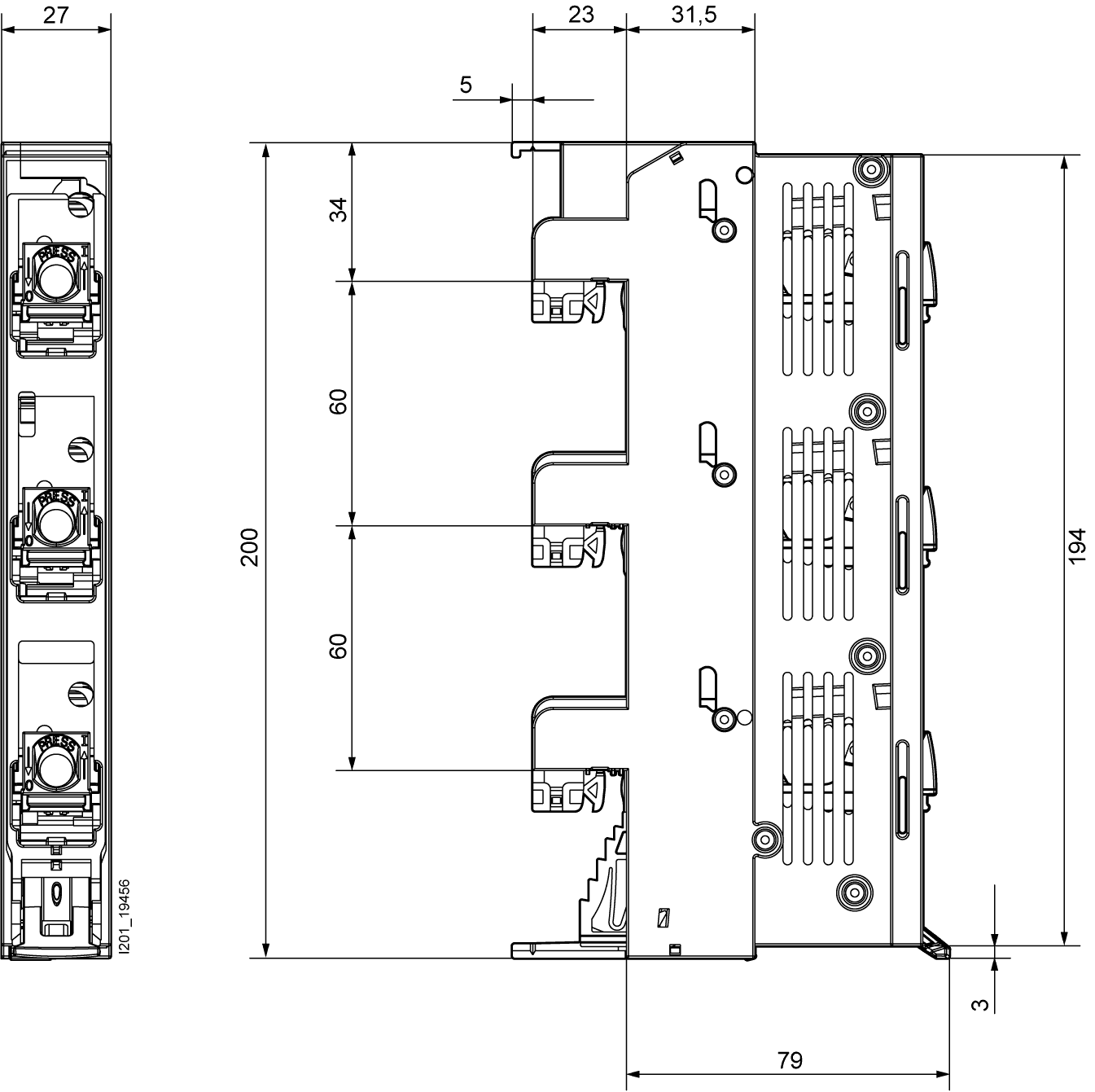

Dimensions
Width27 mm
Height79 mm
Depth200 mm
Other
number of poles3
mounting positionany, preferably vertical
product brand nameSENTRON
protection class IPIP20, with connected conductors
product feature sealableYes
operating voltage at AC rated value400 V
surge voltage resistance rated value6 kV
size of fuse system according to EN 60269-1
