Aktif
MINIZED
Nomor Part: 5SG7230
Kategori
D0-system switch disconnector
Siemens 5SG7230. MINIZED, Switch disconnector with Fuse, D02, 3-pole, In: 63 A, Un AC: 400 V, for Busbar system 8US 60 mm.
Spesifikasi
Mechanical
Net Weight640 g

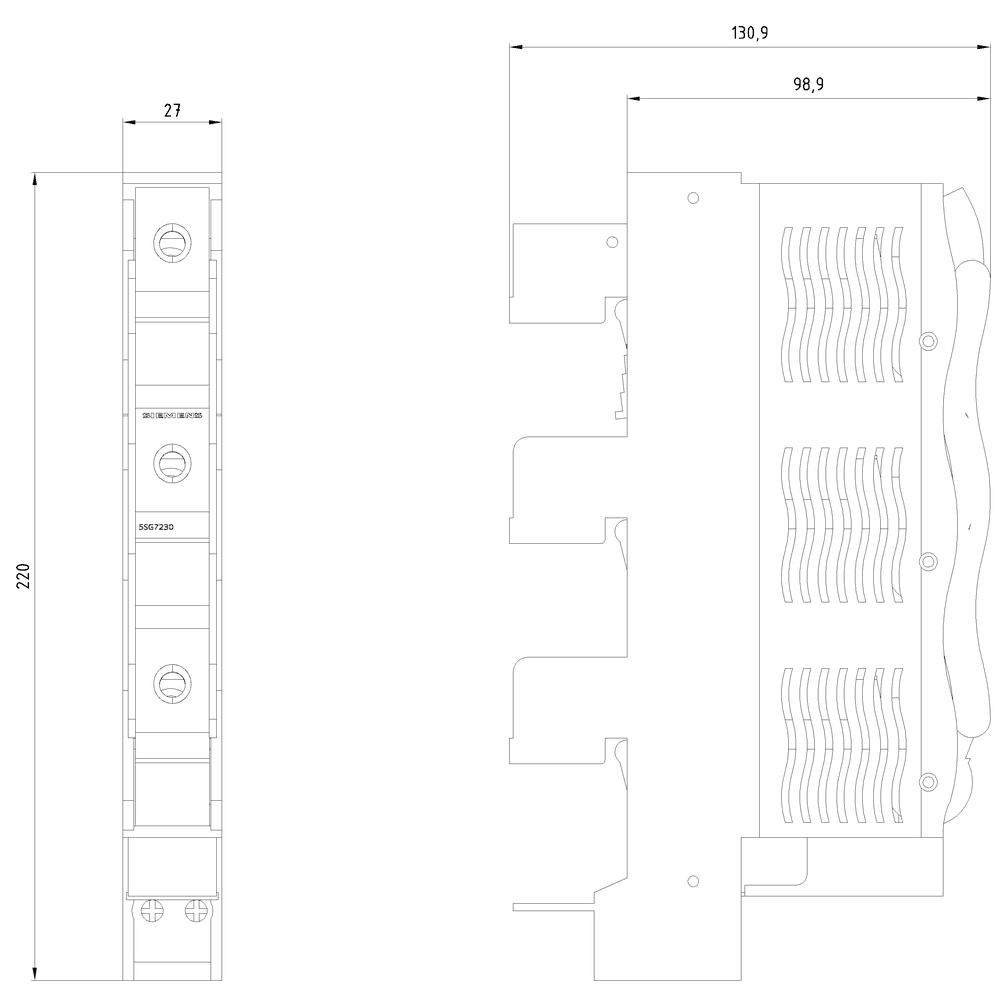

Dimensions
Width27 mm
Height100 mm
Depth219 mm
Other
number of poles3
mounting positionvertical
product brand nameSENTRON
protection class IPIP20, with connected conductors
product feature sealableYes
operating voltage at AC rated value400 V
surge voltage resistance rated value6 kV
size of fuse system according to EN 60269-1D02
