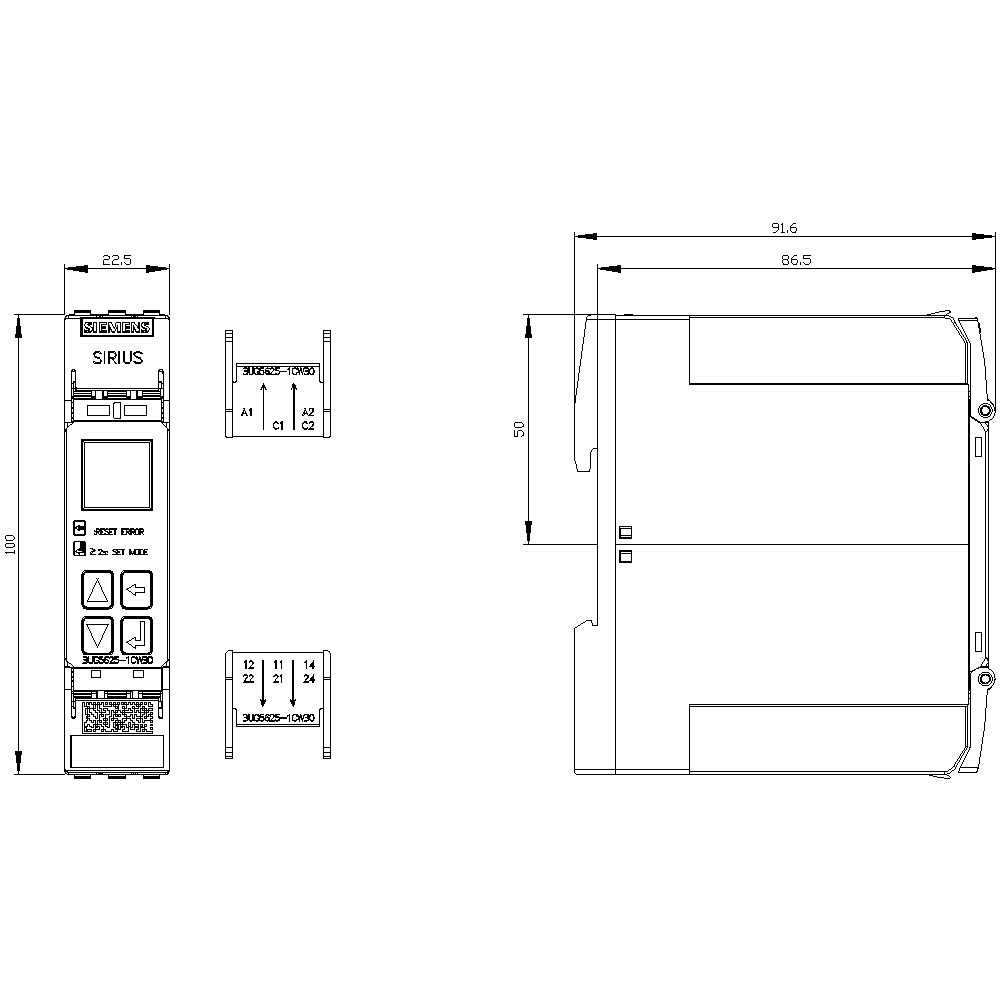

— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
type of voltageAC/DC
fastening methodscrew and snap-on mounting

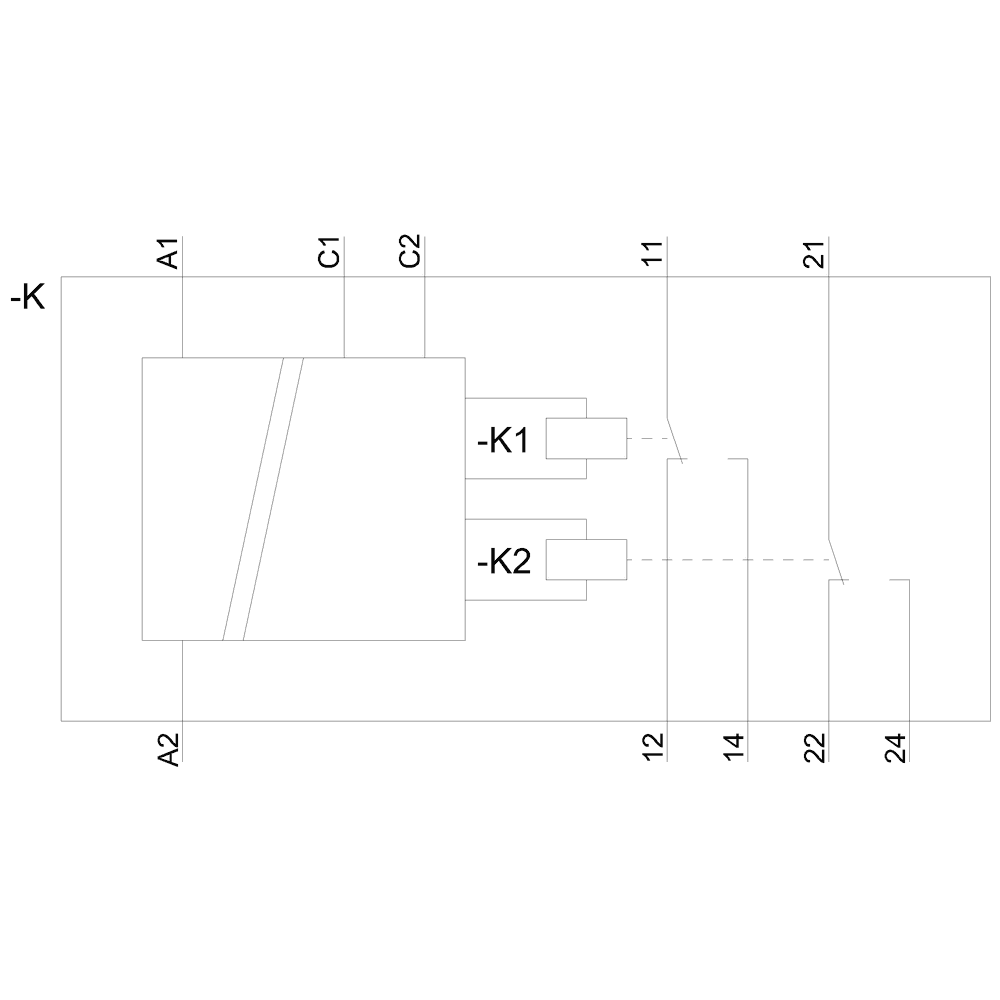

product functionresidual current monitoring relay
mounting positionany
measurable current30 ... 40 000 mA
product brand nameSIRIUS
degree of pollution3

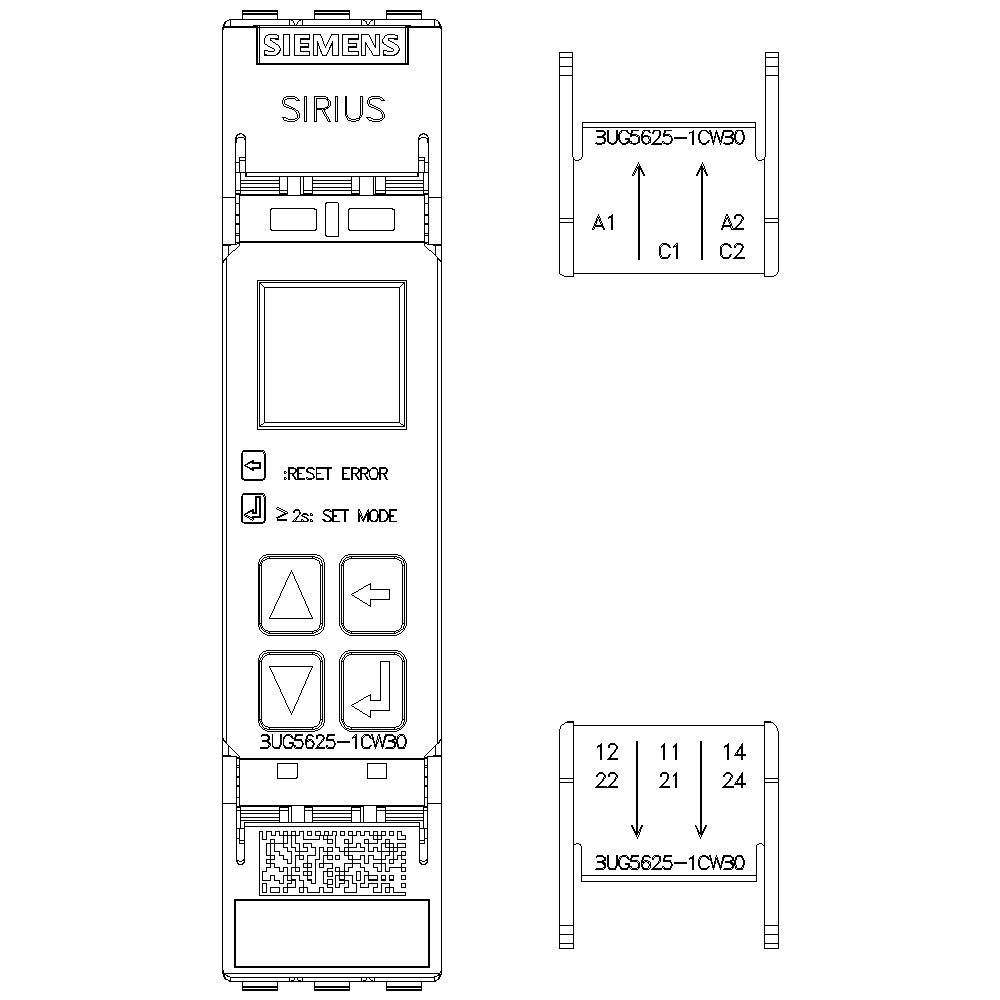

product designationResidual current monitoring relay with digital setting
design of the displayLCD
design of the productmonitoring of residual current, external power supply with auxiliary voltage
product type designation3UG5
measurable line frequency16 ... 400 Hz
accuracy of digital display+/-1 digit
Substance Prohibitance (Date)06/01/2023
operating voltage rated value24 ... 240 V
type of electrical connectionscrew terminal
adjustable response delay time0 ... 999.9 s
adjustable operating delay time0 ... 999.9 s
operating frequency rated value16 ... 400 Hz
design of the electrical isolationgalvanic isolation
operational current at 17 V minimum5 mA
protocol is supported IO-Link protocolNo
reference code according to IEC 81346-2K
— with degree of pollution 2 rated value690 V
— with degree of pollution 3 rated value690 V
number of NC contacts delayed switching0
number of NO contacts delayed switching0
control supply voltage at DC rated value24 ... 240 V
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
tightening torque with screw-type terminals0.6 ... 0.8 N·m
adjustable response delay time when starting0 ... 999.9 s
vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
mechanical service life (operating cycles) typical10 000 000
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
adjustable switching hysteresis for measured current value0 mA
continuous current of the DIAZED fuse link of the output relay6 A
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
product component removable terminal for auxiliary and control circuitYes
