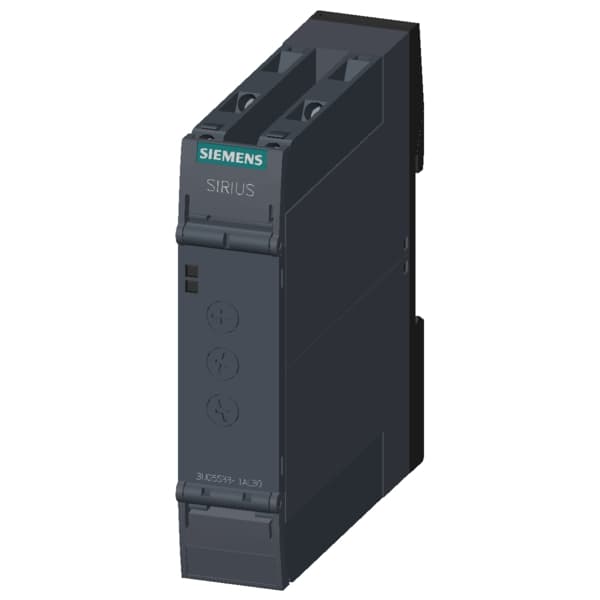

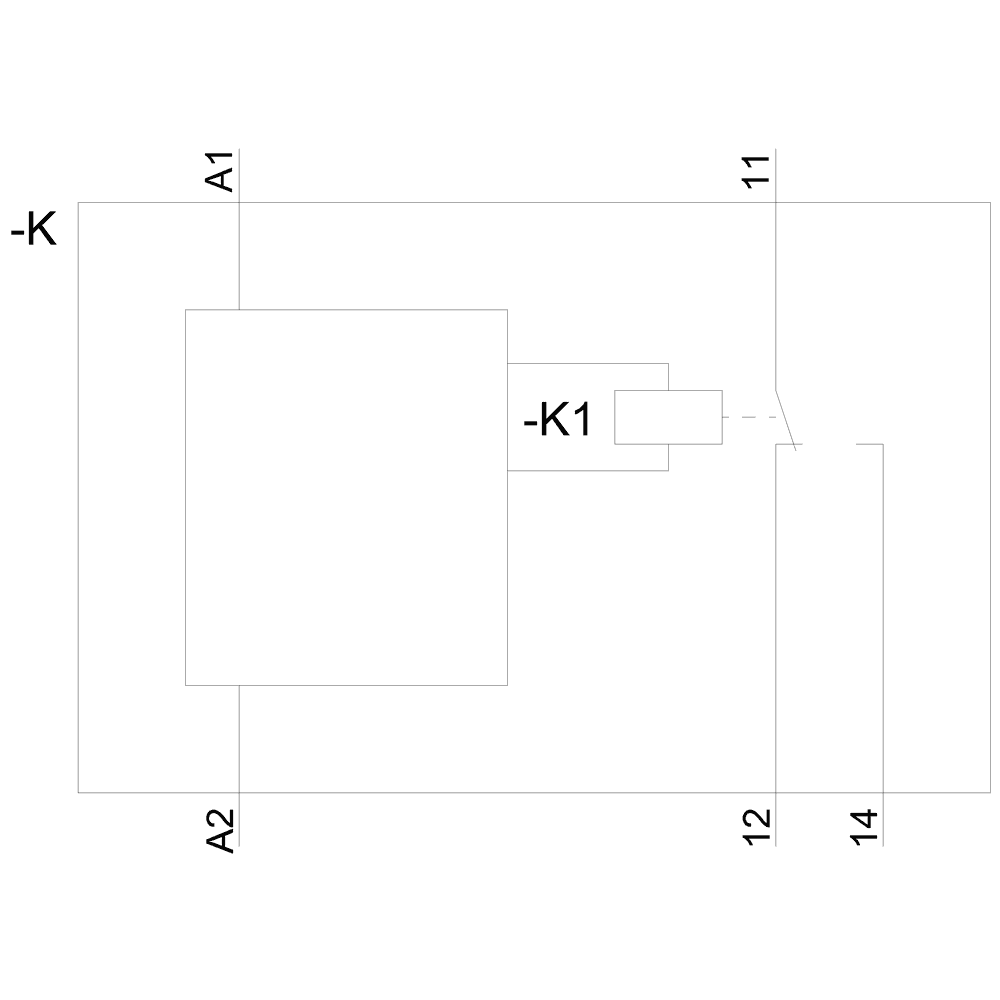

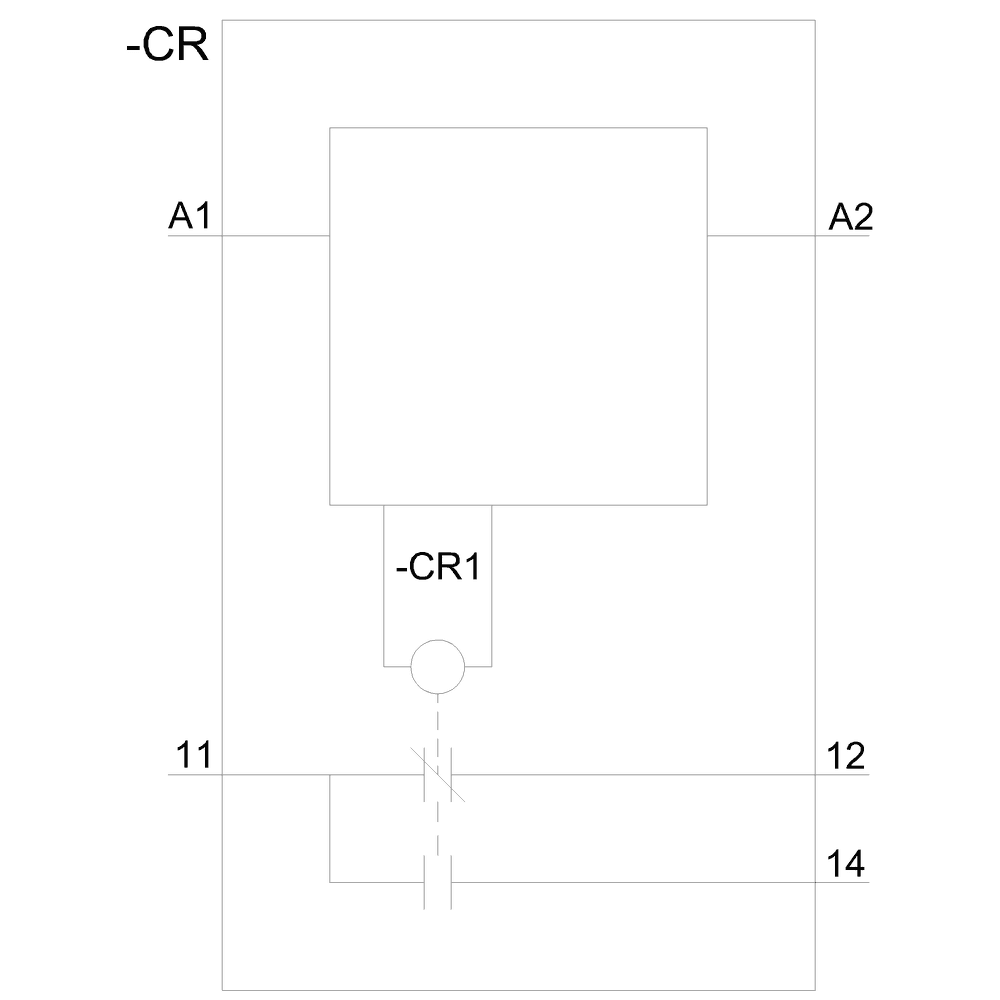

analog monitoring relay voltage monitoring from 20 to 275 V AC/DC overshoot and undershoot with internal power supply 24 to 240 V DC and AC 50 to 60 Hz ON delay and tripping delay 0.1 .. 30 s 1 changeover contact screw terminal

Name: analog monitoring relay voltage monitoring from 20 to 275 V AC/DC overshoot and undershoot with internal power supply 24 to 240 V DC and AC 50 to 60 Hz ON delay and tripping delay 0.1 .. 30 s 1 changeover contact screw terminal
Brand: Siemens
SKU: 3UG5533-1AL30
Availability: InStock

Nomor Part: 3UG5533-1AL30

Merek

Spesifikasi

Mechanical

Net Weight0.145 kg

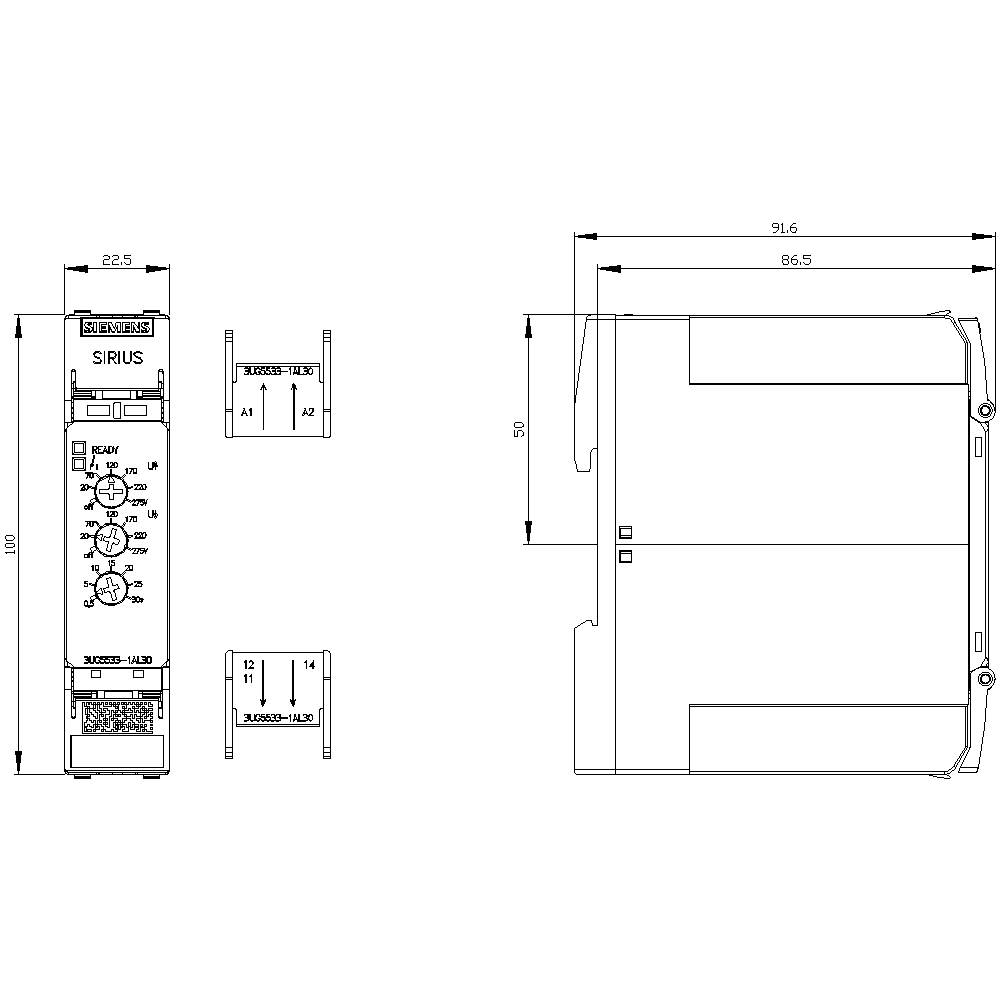

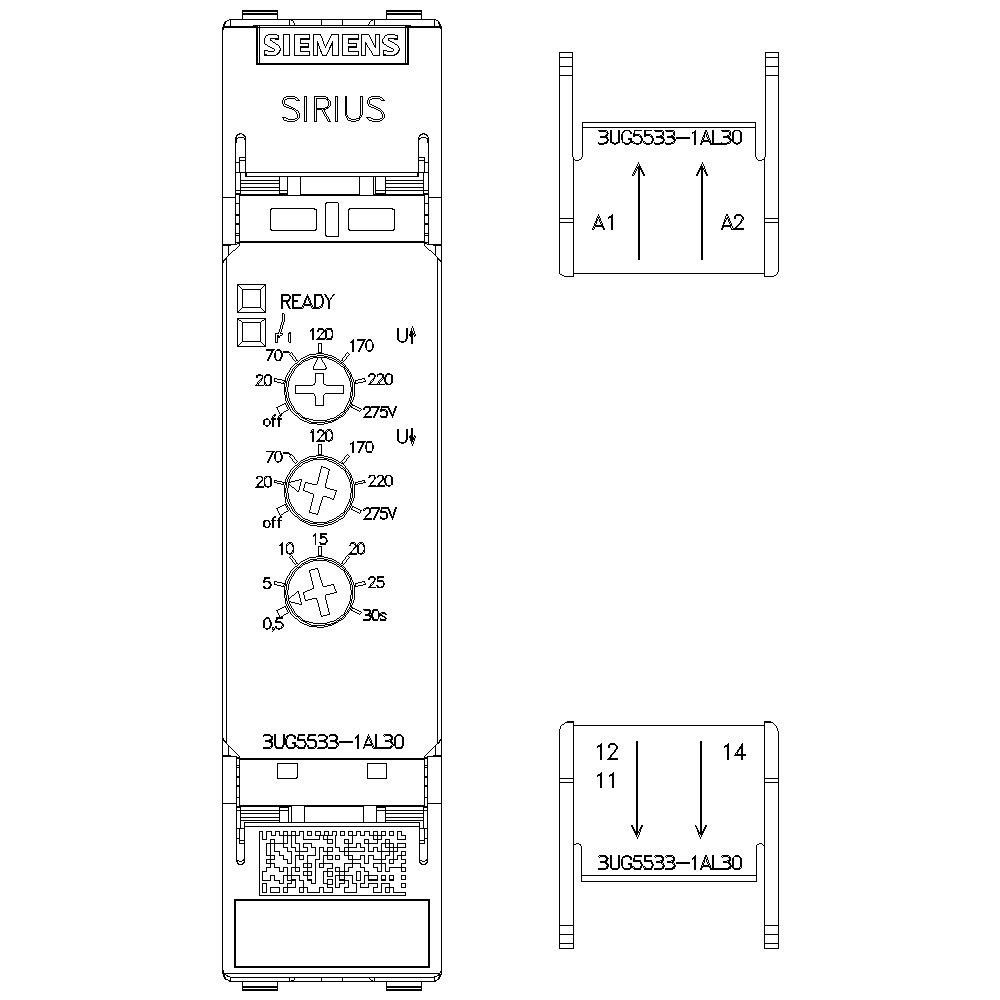

Dimensions

Width22.5 mm

Height100 mm

Depth90 mm

Other

— upwards0 mm

— forwards0 mm

— backwards0 mm

— downwards0 mm

— at the side0 mm

fastening methodscrew and snap-on mounting

product functionVoltage monitoring relay

mounting positionany

product brand nameSIRIUS

degree of pollution3

product designationAnalog setting voltage monitoring relay

— at 50 Hz rated value240 ... 240 V

— at 60 Hz rated value240 ... 240 V

design of the productmonitoring of undervoltage and overvoltage, internally powered without auxiliary voltage

measurable voltage at AC20 ... 275 V

measurable voltage at DC20 ... 275 V

product type designation3UG5

Substance Prohibitance (Date)06/01/2023

type of electrical connectionscrew terminal

design of the electrical isolationgalvanic isolation

operational current at 17 V minimum5 mA

surge voltage resistance rated value6 kV

reference code according to IEC 81346-2K

number of CO contacts delayed switching1

number of NC contacts delayed switching0

number of NO contacts delayed switching0

control supply voltage at DC rated value24 ... 240 V

number of poles for main current circuit1

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms

tightening torque with screw-type terminals0.6 ... 0.8 N·m

vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles

mechanical service life (operating cycles) typical10 000 000

installation altitude at height above sea level maximum2 000 m

protection class IP on the front according to IEC 60529IP20

ampacity of the output relay at AC-15 at 400 V at 50/60 Hz3 A

continuous current of the DIAZED fuse link of the output relay6 A

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

product component removable terminal for auxiliary and control circuitYes
