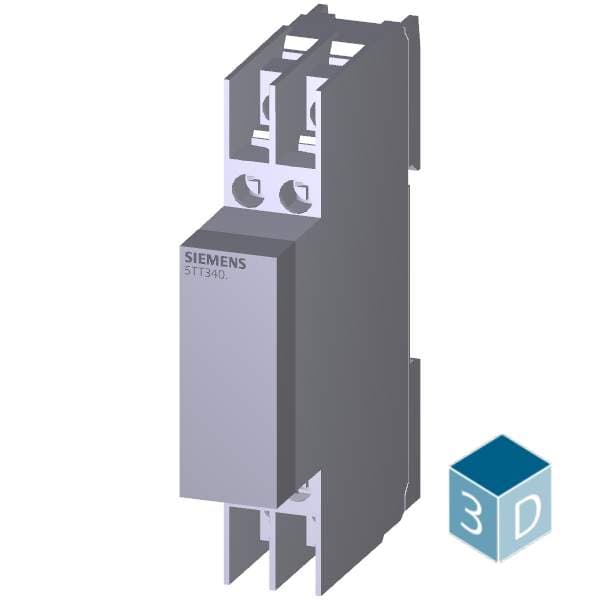

Voltage relay T5570 AC 230/400V 1CO 0.85/0.95 With transparent cap

Name: Voltage relay T5570 AC 230/400V 1CO 0.85/0.95 With transparent cap
Brand: Siemens
SKU: 5TT3401
Availability: InStock

Nomor Part: 5TT3401

Merek

Kunjungi Situs Web

Kategori

Voltage monitoring relay

Permintaan WhatsApp

Siemens 5TT3401. Voltage relay T5570 AC 230/400V 1CO 0.85/0.95 With transparent cap.

Spesifikasi

Mechanical

Net Weight76 g

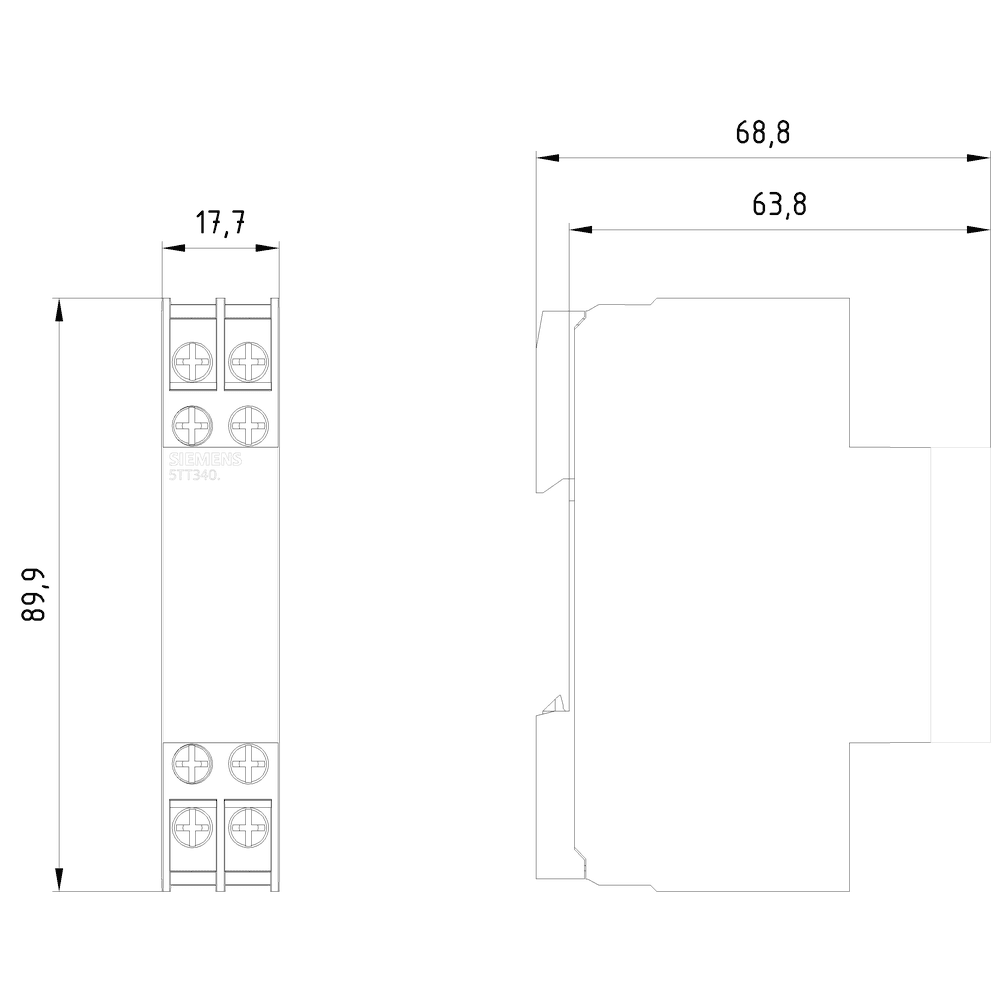

Dimensions

Width18 mm

Height90 mm

Depth64 mm

Other

product brand nameSENTRON

product designationVoltage relay

type of electrical connectionscrew terminal

type of voltage for monitoringAC

measurable voltage at AC initial value253 V

adjustable voltage range full-scale value161 V

measurable voltage at AC full-scale value253 V

Unduhan

5TT3401_doc_0 5TT3401_doc_1 5TT3401_doc_2

Anda Mungkin Juga Suka

Siemens

Voltage relay T5570 AC 230/400V 1CO 0.7/0.9 With transparent cap

5TT3400

Siemens

Voltage relays AC 230/400V 2W 0.9/1.3 Asymmetrical monitoring With transparent cap

5TT3195

Siemens

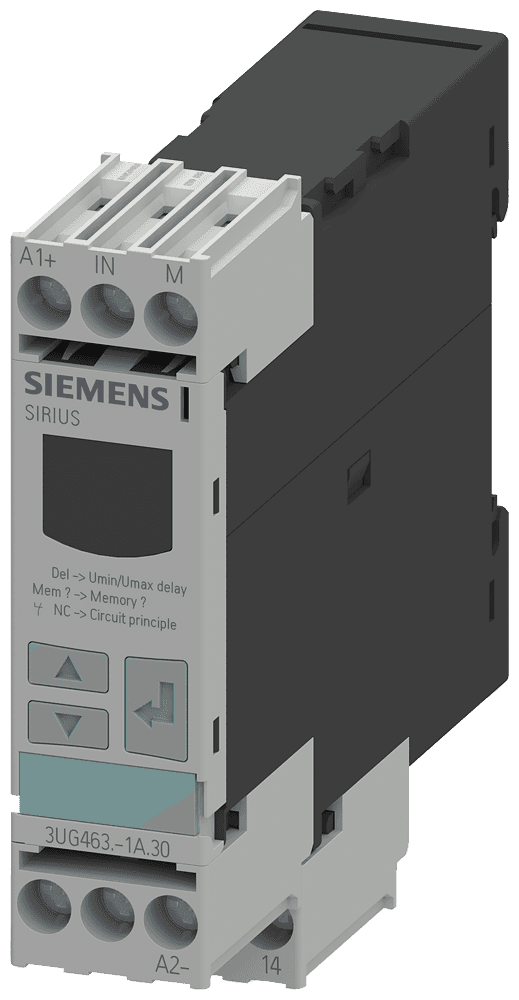

!!! product phase-out !!! the preferred successor is 3UG5642-1CW30 digital monitoring relay voltage monitoring

3UG4631-1AW30

Siemens

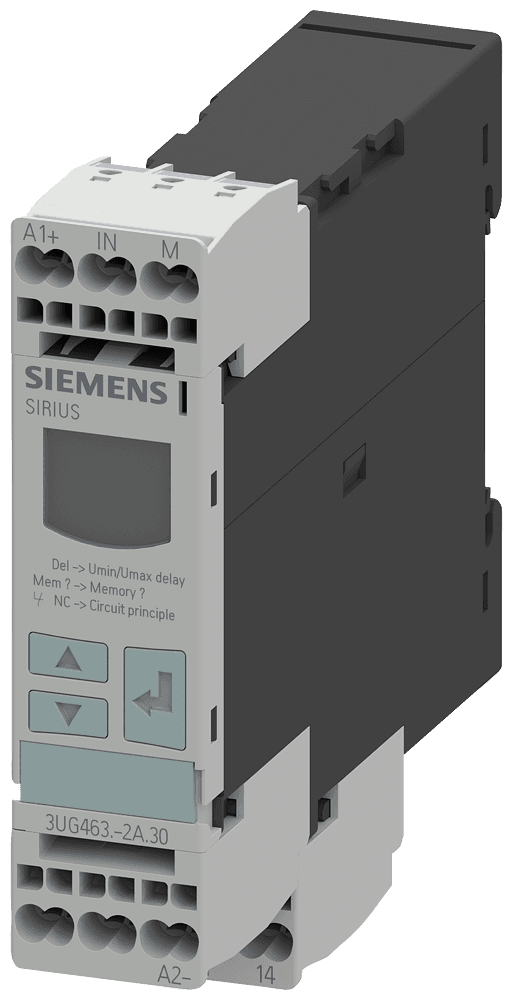

!!! product phase-out !!! the preferred successor is 3UG5642-2CW30 digital monitoring relay voltage monitoring
