Voltage relay T5570 AC 230/400V 1CO 0.7/0.9 With transparent cap

Name: Voltage relay T5570 AC 230/400V 1CO 0.7/0.9 With transparent cap
Brand: Siemens
SKU: 5TT3400
Availability: InStock

Nomor Part: 5TT3400

Merek

Kunjungi Situs Web

Kategori

Voltage monitoring relay

Permintaan WhatsApp

Siemens 5TT3400. Voltage relay T5570 AC 230/400V 1CO 0.7/0.9 With transparent cap.

Spesifikasi

Mechanical

Net Weight77 g

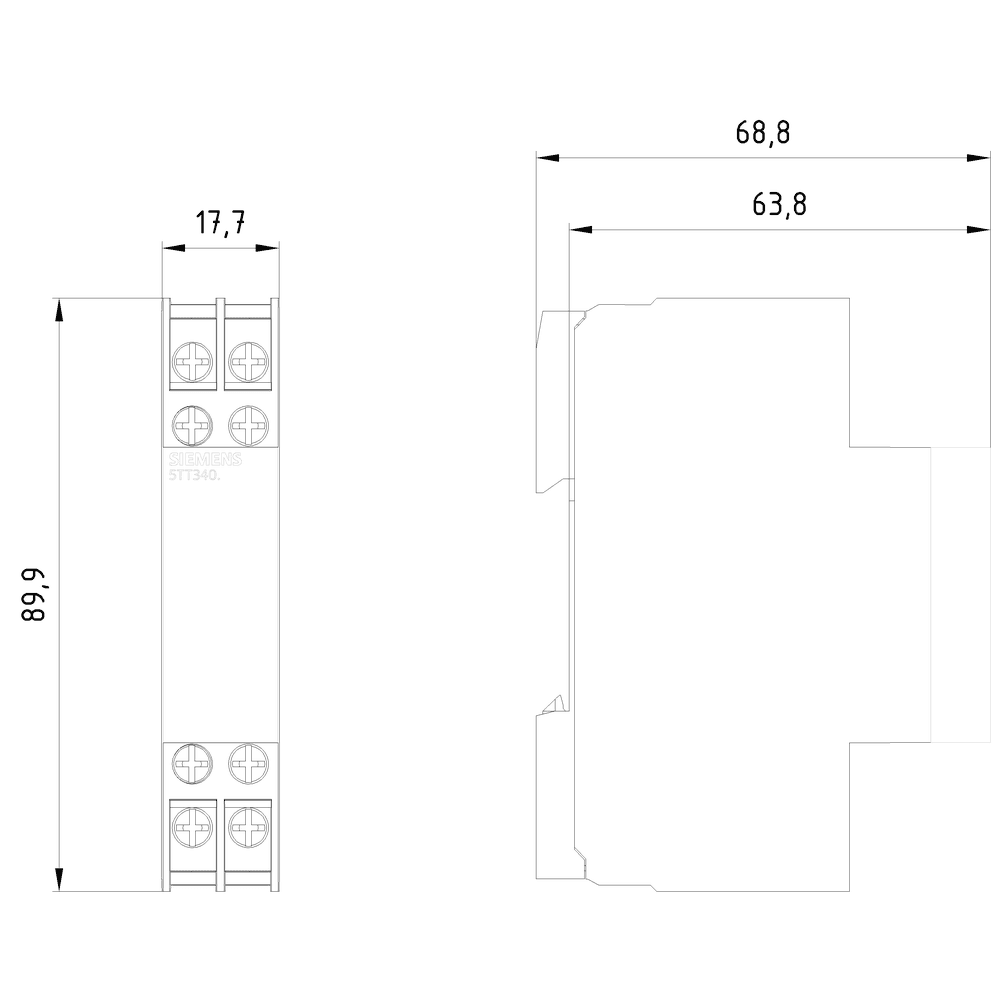

Dimensions

Width18 mm

Height90 mm

Depth64 mm

Other

product brand nameSENTRON

product designationVoltage relay

type of electrical connectionscrew terminal

type of voltage for monitoringAC

measurable voltage at AC initial value253 V

adjustable voltage range full-scale value161 V

measurable voltage at AC full-scale value253 V

Unduhan

5TT3400_doc_0 5TT3400_doc_1 5TT3400_doc_2
