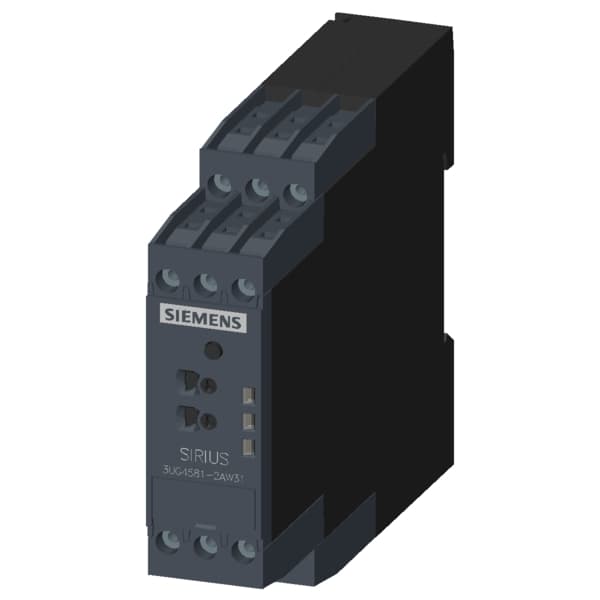

Name: insulation monitoring relay for ungrounded (IT) networks up to 400 V AC
Brand: Siemens
SKU: 3UG4581-2AW31
Availability: InStock

Spesifikasi

Mechanical

Net Weight0.155 kg

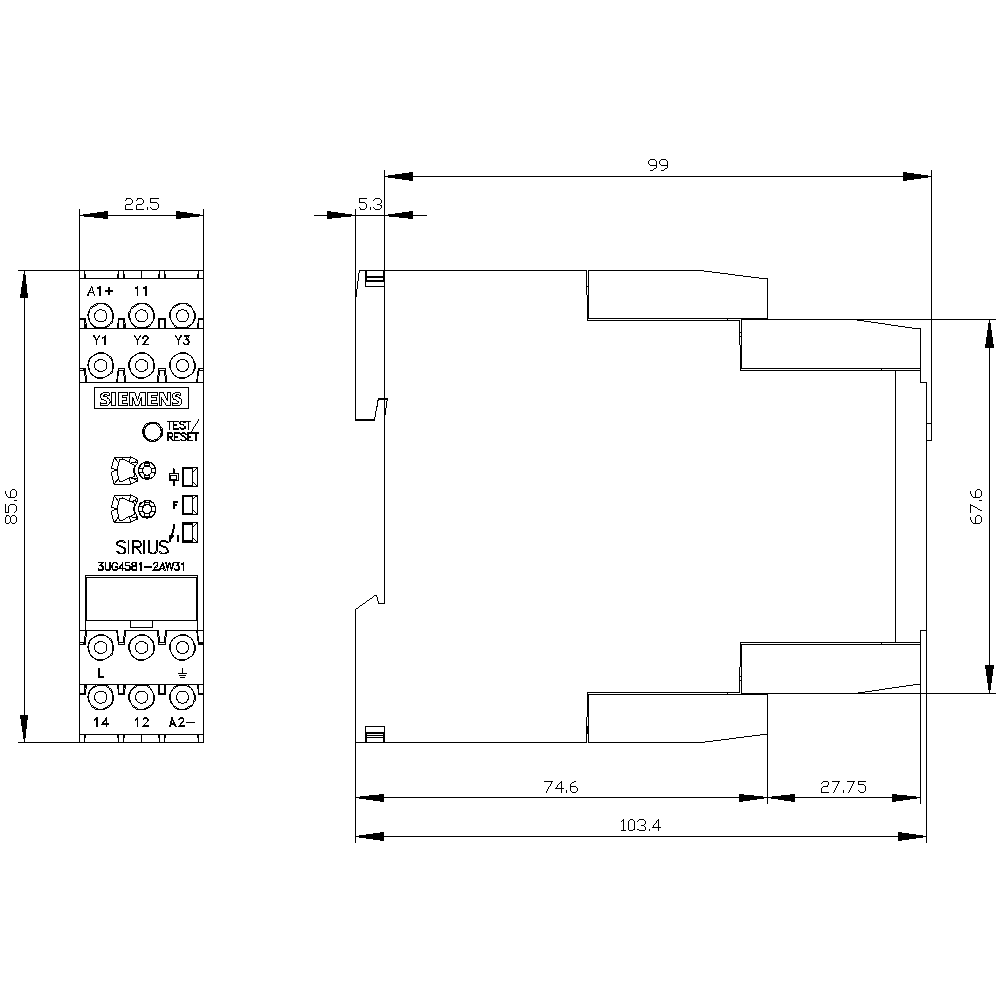

Dimensions

Width22.5 mm

Height78 mm

Depth100 mm

Other

— upwards0 mm

— forwards0 mm

— backwards0 mm

— downwards0 mm

— at the side0 mm

fastening methodsnap-on fastening on 35 mm DIN rail

product functionInsulation monitor

mounting positionany

product brand nameSIRIUS

product designationInsulation monitoring relay with analog setting

measurable voltage at AC0 ... 400 V

product type designation3UG4

measurable line frequency50 ... 60 Hz

Substance Prohibitance (Date)05/01/2012

type of electrical connectionspring-loaded terminal (push-in)

operating frequency rated value50 ... 60 Hz

ambient temperature during operation-25 ... +60 °C

surge voltage resistance rated value6 000 V

reference code according to IEC 81346-2K

number of NC contacts delayed switching0

number of NO contacts delayed switching0

control supply voltage at DC rated value24 ... 240 V

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

protection class IP on the front according to IEC 60529IP20

thermal current of the switching element with contacts maximum4 A

product component removable terminal for auxiliary and control circuitNo
