operator panel with display for SIMOCODE M series
Nomor Part: 3UF8200-1AA00-0
Kategori
Operator panel for Motor management device

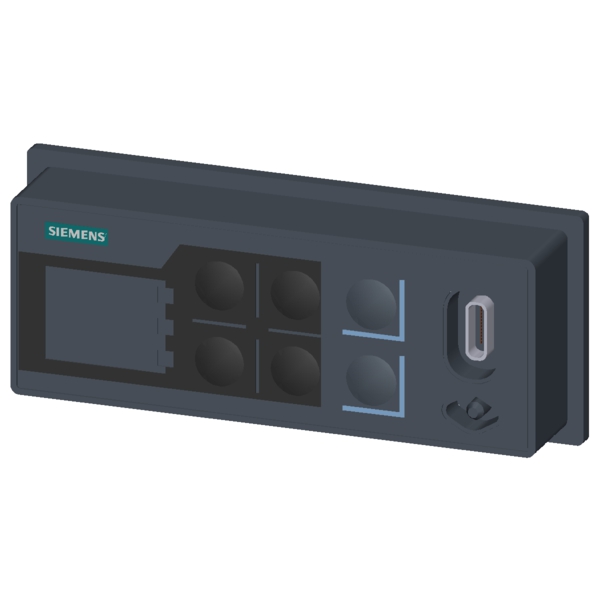

Siemens 3UF8200-1AA00-0. operator panel with display for SIMOCODE M series, installation on device front or front panel mounting, display with colored background, 3 LEDs for status display, 6 buttons for manual control, USB-C interface.
Spesifikasi
Mechanical
Net Weight0.053 kg

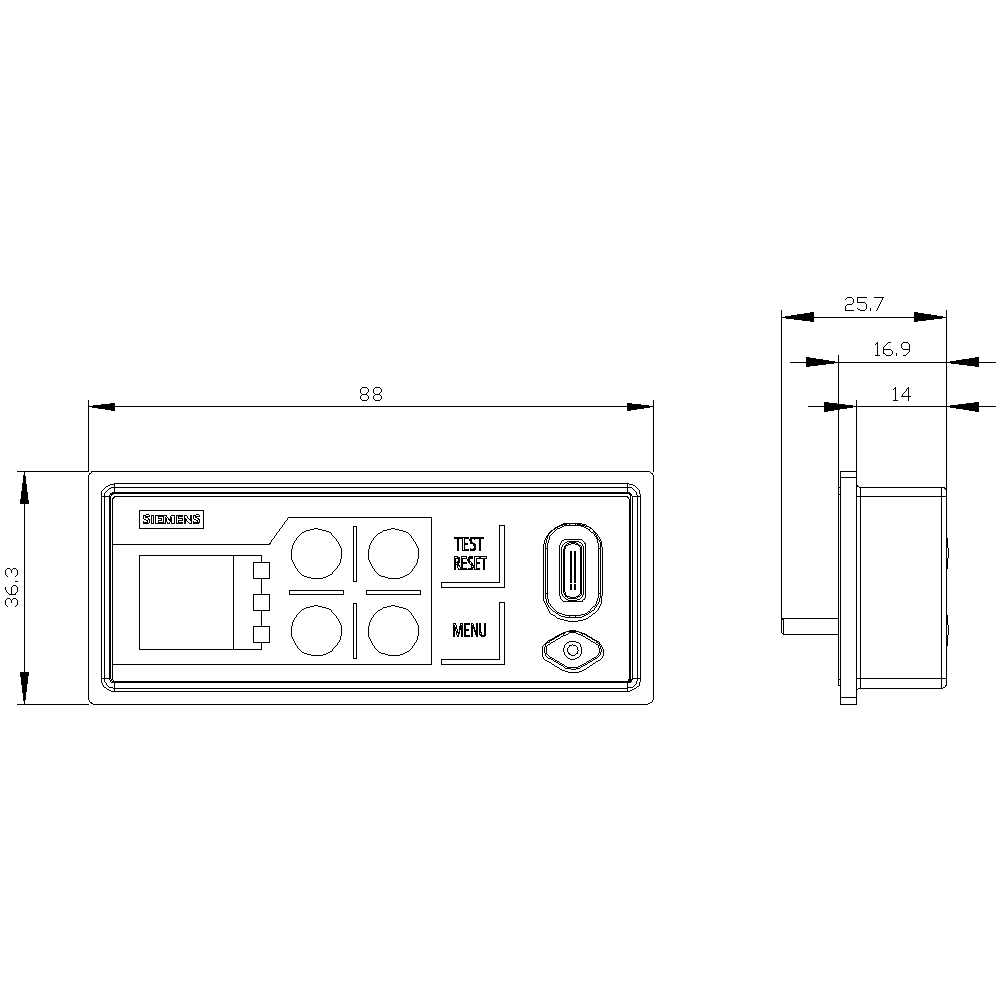

Dimensions
Width88 mm
Height36.3 mm
Depth25.7 mm
Other
number of keys6
fastening methodfront mounting / on basic unit
mounting positionvertical
number of displays1
product brand nameSIMOCODE
product designationoperator panels
vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
consumed active power0.5 W
design of the interfaceUSB-C
product type designationM-CP
number of status displays4
apparent power consumption0.5 VA
certificate of suitabilityCE / RoHS
Substance Prohibitance (Date)01/01/2024
degree of protection NEMA rating12
protection class IP on the frontIP40/IP54
relative humidity during operation5 ... 95 %
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
reference code according to IEC 81346-2A
shock resistance according to IEC 60068-2-2715g / 11 ms
electrostatic discharge according to IEC 61000-4-26/8 kV
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
