colortitanium grey
fastening methodfront plate mounting
mounting positionvertical
product brand nameSIMOCODE

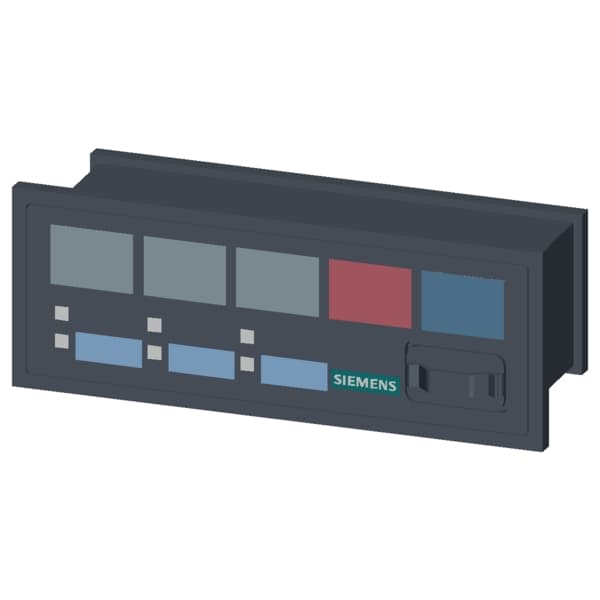

product designationoperator panels
vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
consumed active power0.1 W
product type designationBB
certificate of suitabilityCE / UL / CSA / CCC / C-Tick (RCM) / GOST / NOM / ABS / DNV / GL / LRS / RoHS
Substance Prohibitance (Date)07/01/2006
protection class IP on the frontIP54
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2A
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
