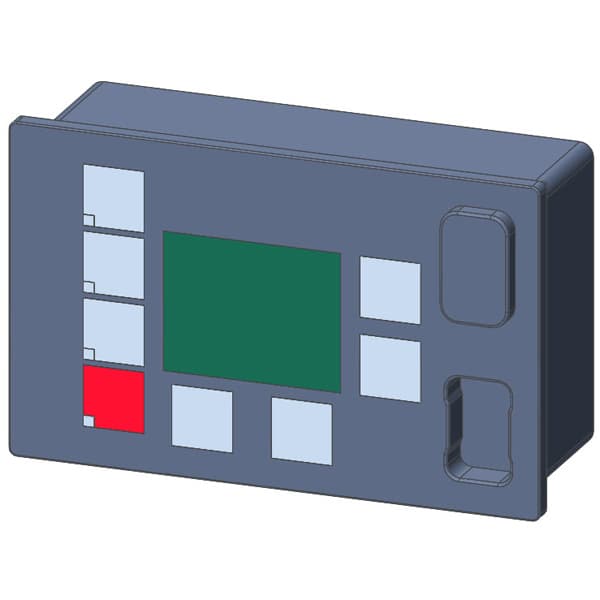

operator panel with display for SIMOCODE pro V(without PN GP) installation in control cabinet door or front plate

Name: operator panel with display for SIMOCODE pro V(without PN GP) installation in control cabinet door or front plate
Brand: Siemens
SKU: 3UF7210-1AA01-0
Availability: InStock

Nomor Part: 3UF7210-1AA01-0

Merek

Kunjungi Situs Web

Spesifikasi

Mechanical

Net Weight133 g

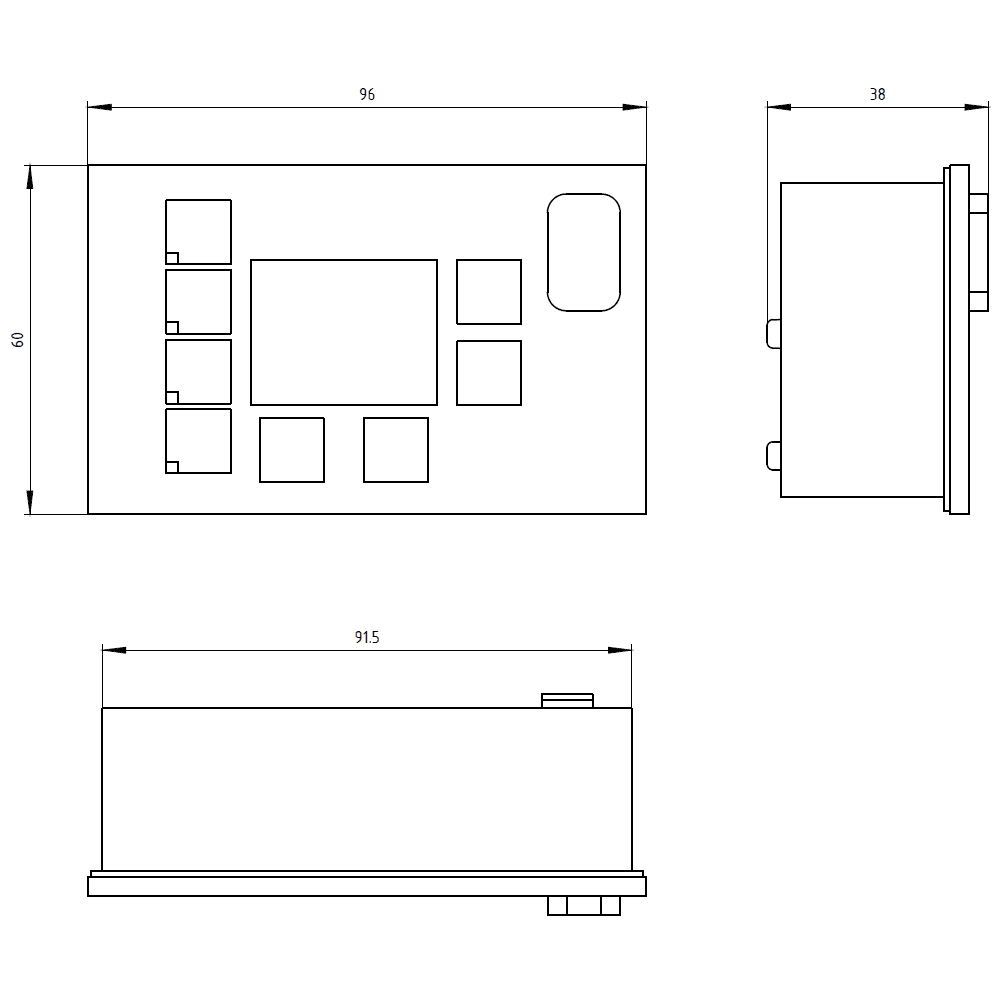

Dimensions

Width96 mm

Height60 mm

Depth44 mm

Other

colortitanium grey

fastening methodfront plate mounting

mounting positionvertical

product brand nameSIMOCODE

product designationoperating module with display

vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g

consumed active power0.3 W

product type designationBBD

certificate of suitabilityCE / UL / CSA / CCC / C-Tick (RCM) / GOST / NOM / ABS / DNV / GL / LRS / RoHS

Substance Prohibitance (Date)07/01/2006

protection class IP on the frontIP54

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

surge voltage resistance rated value4 000 V

reference code according to IEC 81346-2A

EMC emitted interference according to IEC 60947-1class A

field-based interference according to IEC 61000-4-310 V/m

national language on the display screen is supportedEnglish / German / French / Spanish / Portuguese / Italian / Polish / Finnish
