Aktif
auxiliary switch 1 CO for cylindrical fuse base size 14x 51 mm for displaying the switching state of fuses with striker indicator
Nomor Part: 3NW7901
Kategori
Auxiliary device for distribution board devices

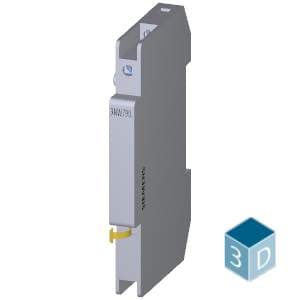

Siemens 3NW7901. auxiliary switch 1 CO for cylindrical fuse base size 14x 51 mm for displaying the switching state of fuses with striker indicator.
Spesifikasi
Mechanical
Net Weight52 g

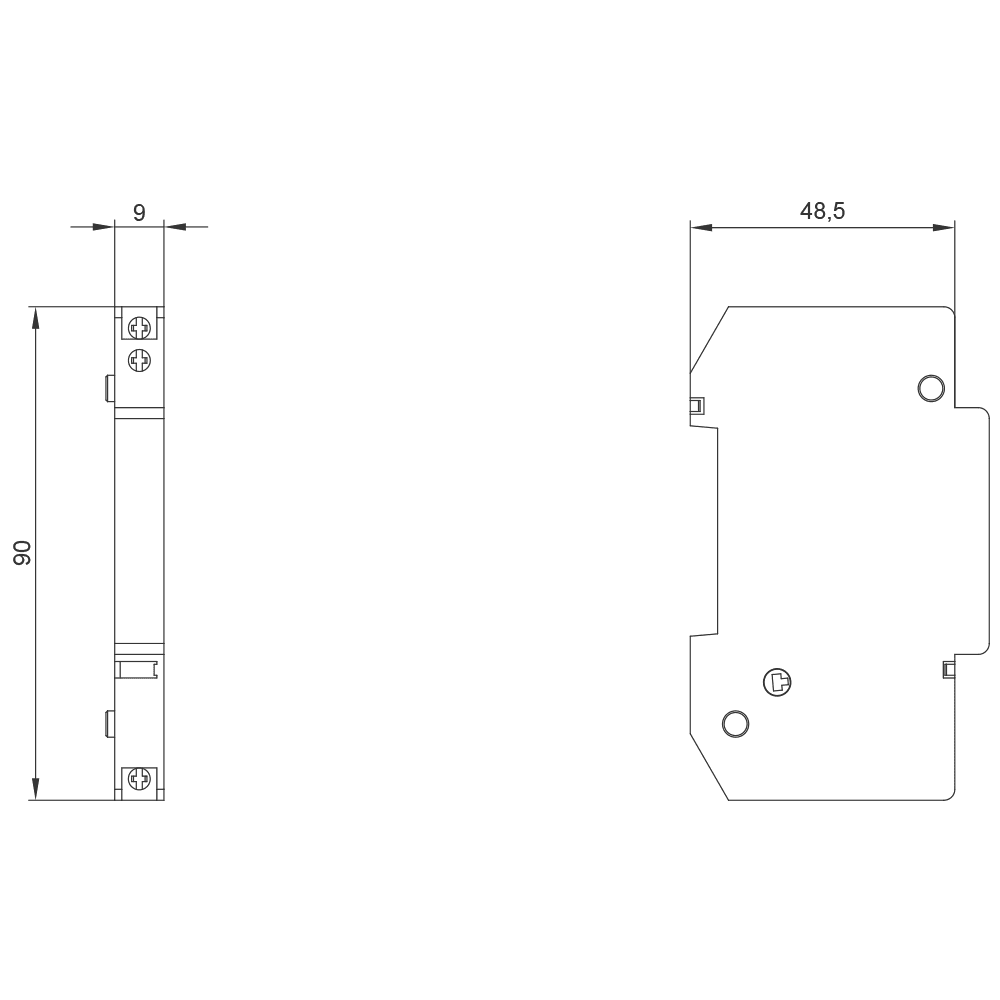

Dimensions
Width9 mm
Height83 mm
Depth64 mm
Other
product extensionAuxiliary current switch
product brand nameSENTRON
product designationauxiliary switches
design of the productstriker fuses
number of CO contacts1
number of NC contacts0
number of NO contacts0
number of modular width units1
number of fault signal contacts0
product extension can be mountedothers
type of voltage of control voltageAC
design of the product factory mountedNo
switching capacity current rated value5 A
