number of labels0
product brand nameSIRIUS ACT
product designationEnclosures
protection class IPIP66, IP67, IP69(IP69K)
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
design of the housingwith protective collar
number of LED modules0
material of the holderPlastic
product feature lockoutNo
design of the front ringStandard
number of command points1
product type designation3SU1
type of unlocking deviceA = rotate-to-unlatch mechanism
material of the enclosureplastic
number of contact modules2
Substance Prohibitance (Date)10/01/2014
number of inscription plates0
product component front ringNo
shape of the enclosure frontSquare
color of the actuating elementred
shape of the actuating elementround
color of the enclosure top partyellow

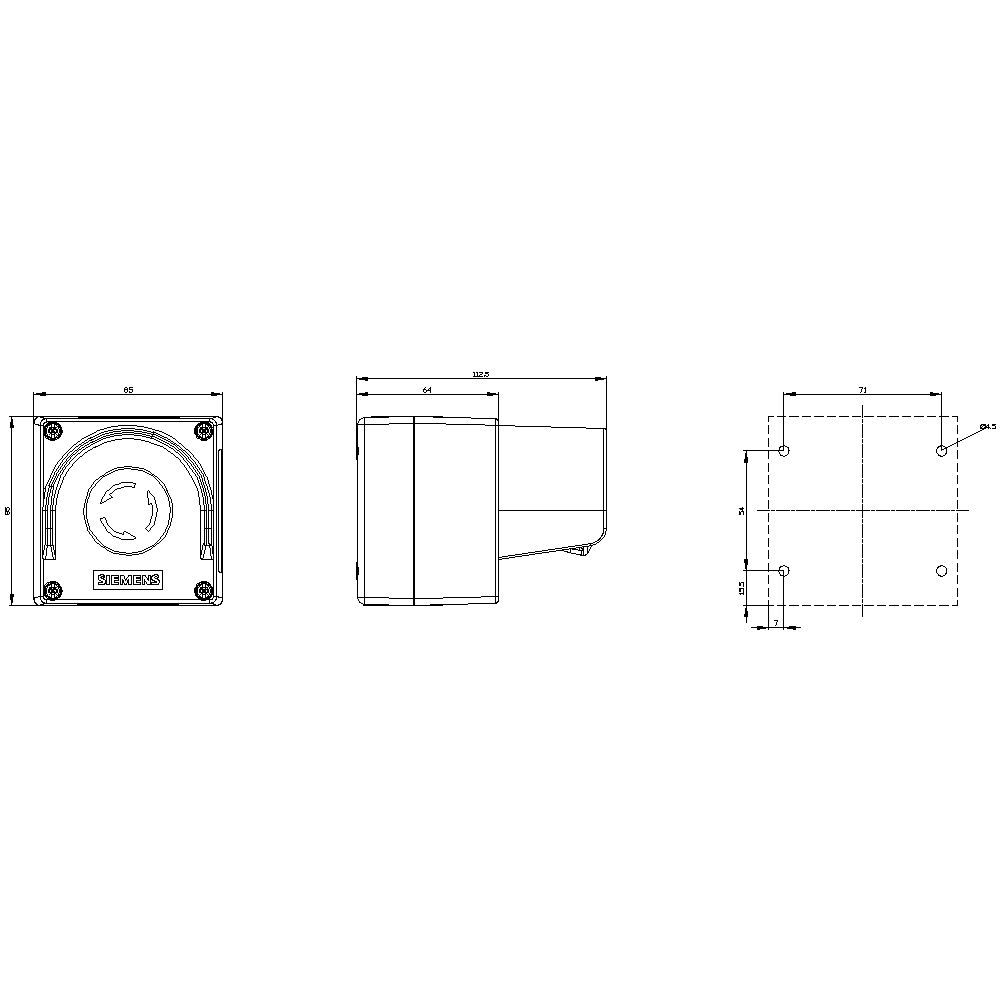

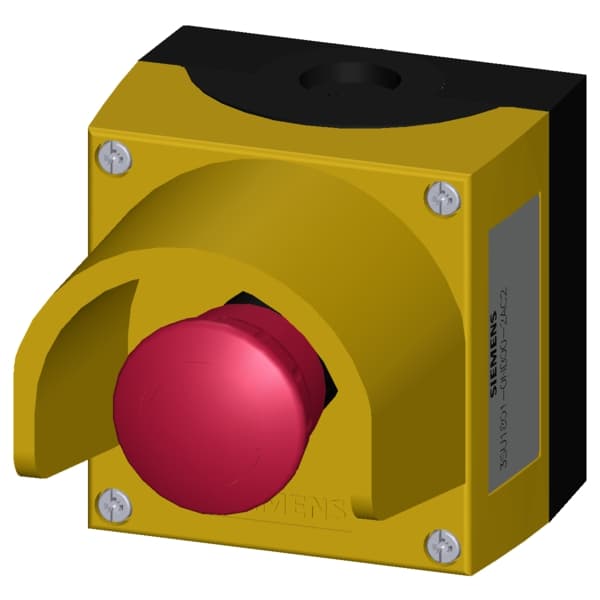

design of the actuating elementEMERGENCY STOP mushroom pushbutton
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13
fastening method of the enclosureVertical
material of the actuating elementplastic
shape of the installation openinground
device type according to ISO 13849-13
reference code according to IEC 81346-2S
product extension optional light sourceNo
test wear-related service life necessaryYes
suitability for use EMERGENCY OFF switchYes
design of the interface for communicationwithout
safety device type according to IEC 61508-2Type A
tightening torque with screw-type terminals0.8 ... 0.9 N·m
type of electrical connection on enclosureCable routing above and below, both 1 x M20
design of the contact of auxiliary contactsSilver alloy
fastening method of modules and accessoriesFloor mounting
equipment of commanding and signaling deviceA = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts0
continuous current of the DIAZED fuse link gG10 A
product function suitable for safety functionYes
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
tightening torque of the screws in the bracket1 ... 1.2 N·m
continuous current of the quick DIAZED fuse link10 A
B10 value with high demand rate according to SN 31920100 000
type of electrical connection of modules and accessoriesScrew-type terminal
tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
T1 value for proof test interval or service life according to IEC 6150820 a
failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT
