Active

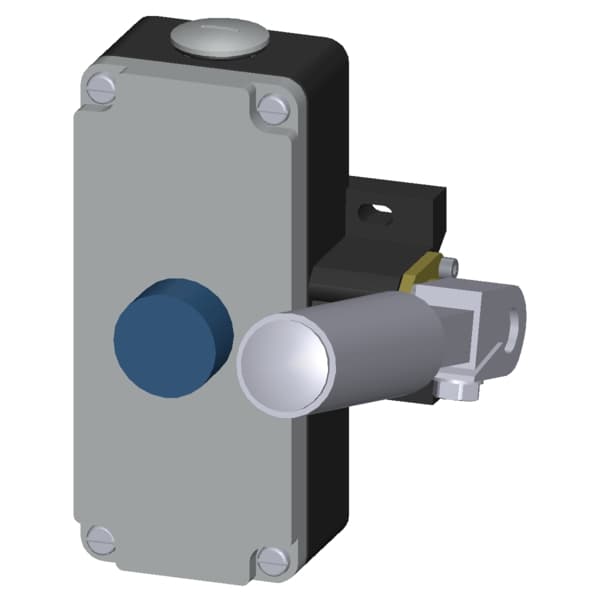

Conveyor belt unbalance tracker Metal enclosure
Part Number: 3SE7310-1AE00
Brand
Category
Control circuit devices combination in enclosure
Siemens 3SE7310-1AE00. Conveyor belt unbalance tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC, with latching according to EN ISO 13850 Pushbutton release.
Specifications
Mechanical
Net Weight1.89 kg

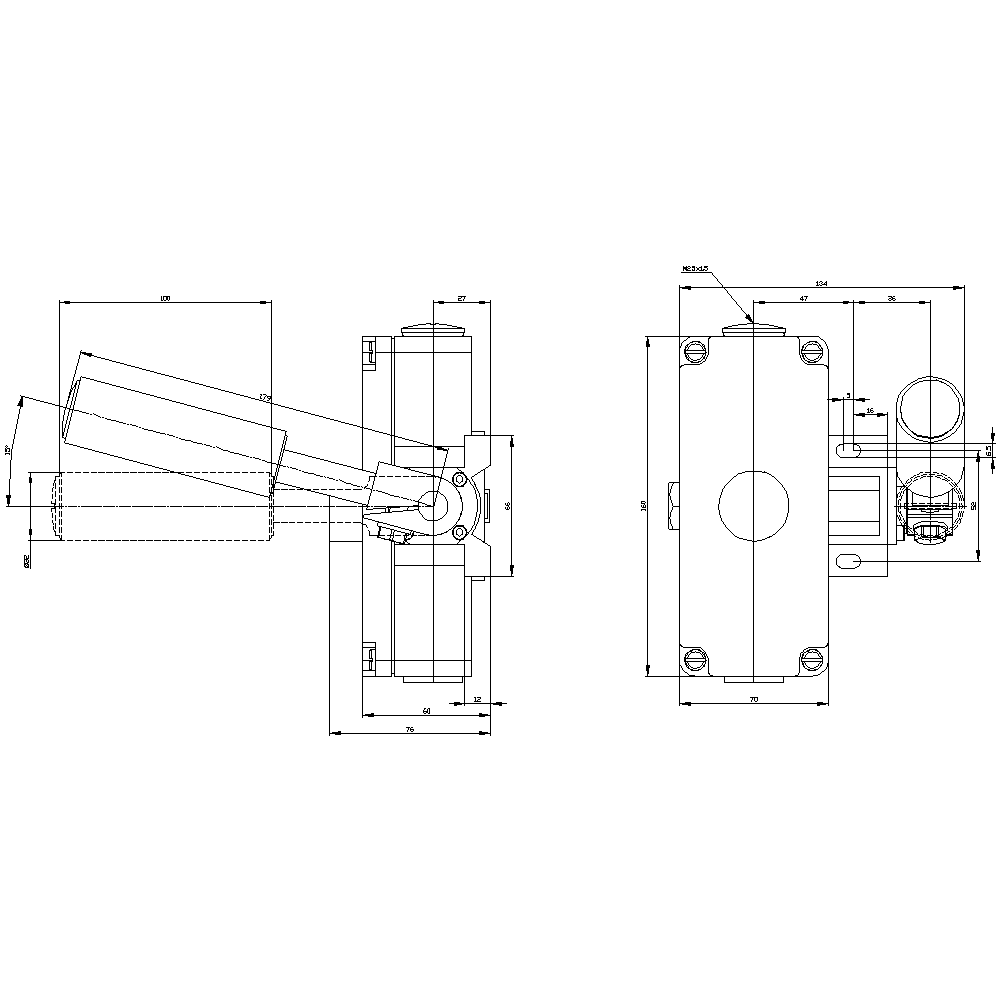

Dimensions
Width135 mm
Height160 mm
Depth206 mm
Other
thermal current6 A
cable entry type2x M25 x 1,5
fastening methodscrew fixing
circuit principleJump function
product brand nameSIRIUS
degree of pollutionclass 3
product designationconveyor belt unbalance device
protection class IPIP65
material of the contactSilver
coating of the enclosurepainted
product type designation3SE7
material of the enclosuremetal
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value400 V
product component light sourceNo
material of the enclosure coverMetal
product function status displayNo
ambient temperature during operation-25 ... +70 °C
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2S
product component EMERGENCY STOP deviceNo
product function EMERGENCY STOP functionNo
number of switching contacts safety-related2
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
continuous current of the DIAZED fuse link gG6 A
mechanical service life (operating cycles) typical100 000
B10 value with high demand rate according to SN 31920100 000
proportion of dangerous failures with high demand rate according to SN 3192050 %
