Active

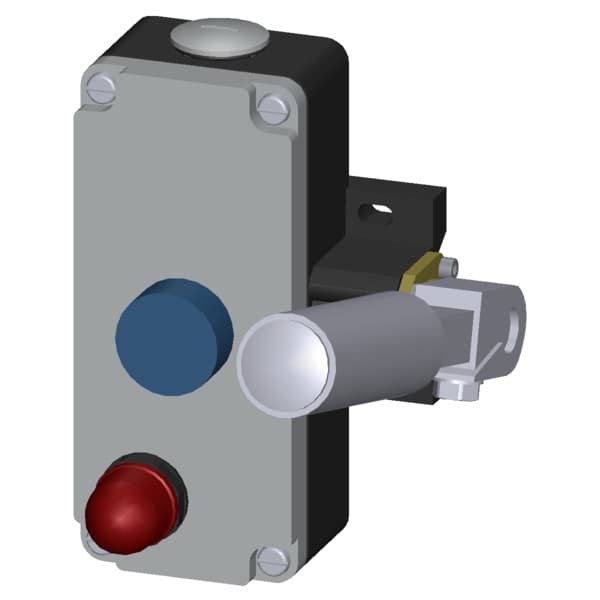

Conveyor belt unbalance tracker Metal enclosure
Part Number: 3SE7310-1AE04
Brand
Category
Control circuit devices combination in enclosure
Siemens 3SE7310-1AE04. Conveyor belt unbalance tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC, with latching According to EN ISO 13850 Pushbutton release with LED lamp 24 V DC, red.
Specifications
Mechanical
Net Weight2.028 kg

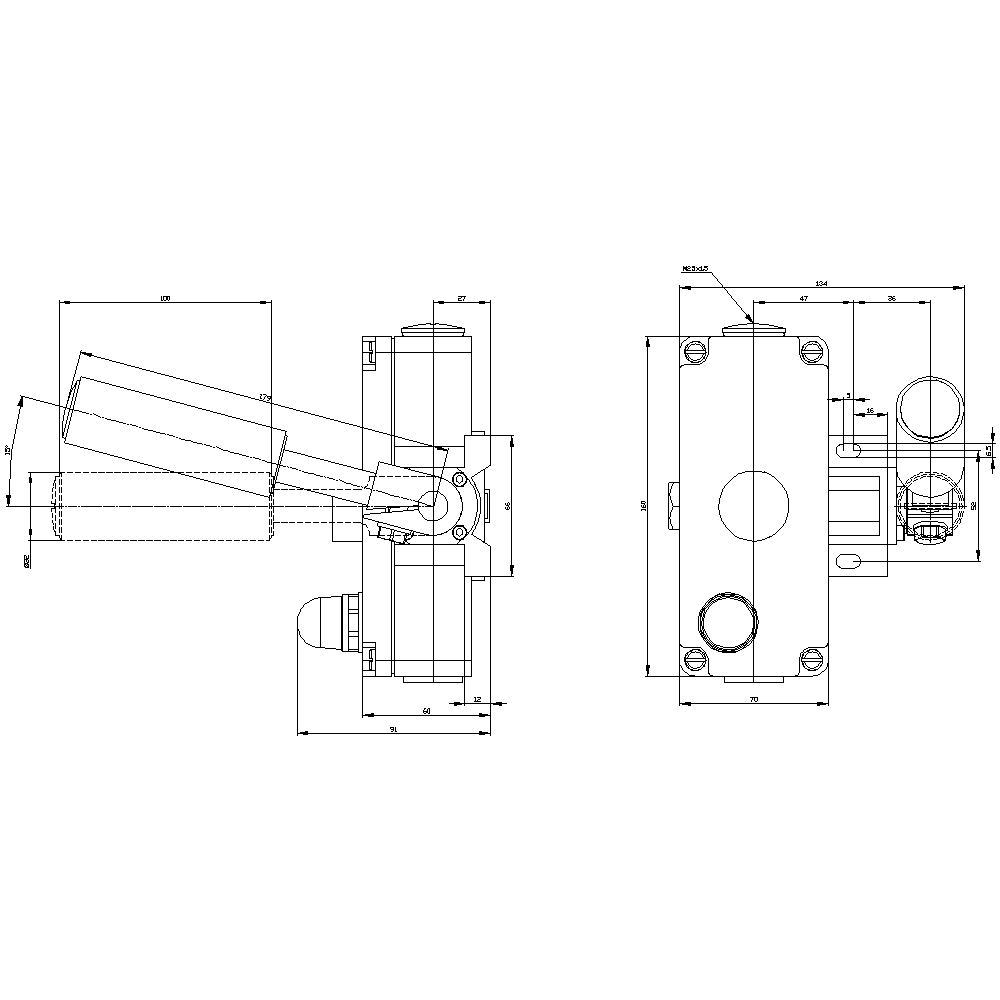

Dimensions
Width135 mm
Height160 mm
Depth206 mm
Other
thermal current6 A
cable entry type2x M25 x 1,5
fastening methodscrew fixing
circuit principleJump function
product brand nameSIRIUS
degree of pollutionclass 3
product designationconveyor belt unbalance device
protection class IPIP65
material of the contactSilver
coating of the enclosurepainted
product type designation3SE7
color of the light sourcered
material of the enclosuremetal
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value400 V
product component light sourceYes
material of the enclosure coverMetal
product function status displayNo
ambient temperature during operation-25 ... +70 °C
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2S
product component EMERGENCY STOP deviceNo
product function EMERGENCY STOP functionNo
number of switching contacts safety-related2
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
continuous current of the DIAZED fuse link gG6 A
mechanical service life (operating cycles) typical100 000
relative negative tolerance of the supply voltage-15 %
relative positive tolerance of the supply voltage10 %
B10 value with high demand rate according to SN 31920100 000
supply voltage 1 of the light source at DC rated value24 V
type of voltage of the supply voltage of the light sourceDC
proportion of dangerous failures with high demand rate according to SN 3192050 %
